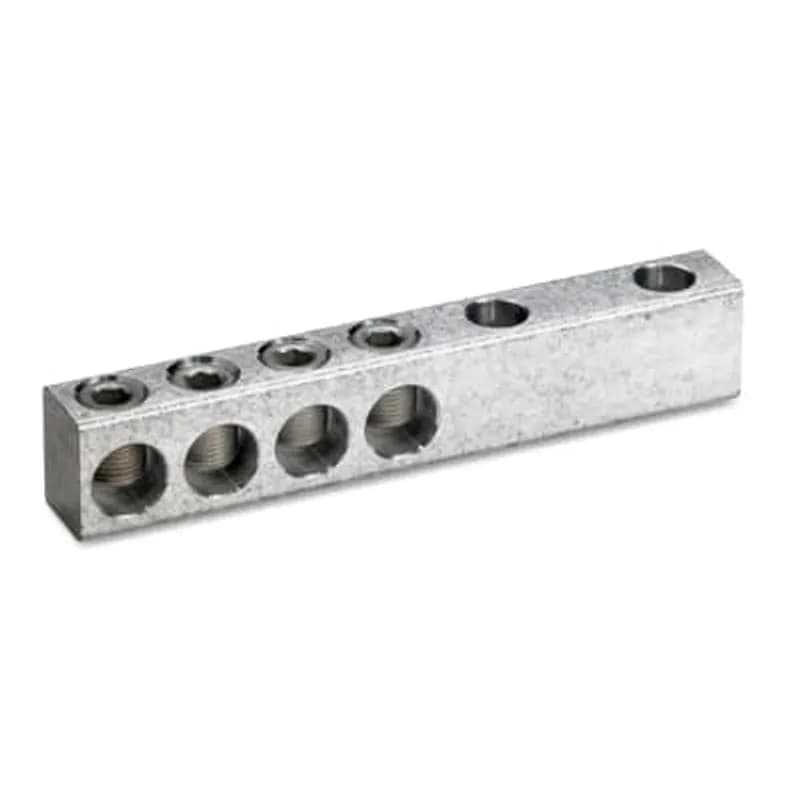

ABB - Installation Products ABN 8750 - Aluminum Transformer Spade Connectors - ABN Series, cable range 1/0-750, length 13-15/16 inch, uses boot no. 2163-3, outlets 8

ABB Installation Products ABN 8750 Aluminum Transformer Spade Connectors - ABN Series, cable range 1/0-750, length 13-15/16…

UPC: 783786686087

Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB ABN 8750 is an Aluminum Transformer Spade Connector from the ABN Series, designed for reliable electrical connections in transformer applications. This connector accommodates a broad cable range from 1/0 to 750 kcmil, ensuring versatility for various power distribution needs. Its substantial length of 13-15/16 inches provides ample space for secure termination and connection points. The ABN 8750 features 8 distinct outlets, facilitating multi-point connections within transformer assemblies. It is specified for use with boot number 2163-3, which is essential for proper insulation and protection of the terminated connections. Manufactured by ABB - Installation Products, this connector is built to meet the functional requirements of electrical infrastructure. Its aluminum construction offers good conductivity and corrosion resistance suitable for transformer environments. The UNSPSC code for this product is 39121443, categorizing it under electrical connectors and terminals. This component is critical for ensuring safe and efficient power transfer in transformer systems.
  • ABB ABN Series Aluminum Transformer Spade Connector
  • Accommodates cable range: 1/0 - 750 kcmil
  • Length: 13-15/16 inches
  • Features 8 outlets for multiple connections
  • Designed for use with boot number 2163-3

Specifications

Application
Pad-Mount Tranformer Connector. For Installations on Standard NEMA Spade Terminals
Conductor Range
1/0 to 750 kcmil
Connection
Mechanical
Finish
Bare
Insulation
False
Material
Aluminum
Number of Conductors
8
Series
ABN
Size
11-1/4 inch
Size
1/0-750
Special Features
High Strength Aluminum Alloy maximizes electrical and mechanical problems. Dual-rated to accept Aluminum and Copper Conductors. Ball-Bottom screws ensure maximum conductor contact pressure and break up interstrand oxides
Standard
ANSI C119.4
Type
Transformer Spade Connector
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.0000 L
Package Weight (Metric)
0.4540 kg
EZ Keeper, Aluminum Transformer Stud Connector, 6 Conductor, 1/0-750 kcmil, Aluminum and Copper, (1/0 to 350 kcmil use 240 in-lb or 20 ft-lb) 400 to 750 kcmil use 360 in-lb or 30 ft-lb). Length 14 inches x 2 inch tall x 2-5/8 inch wide. 1-1/4 inch Stud Size. Three Holes tapped at 5/8-18 UNF-2B (Break-Thru) for Stud.

ABKW 6750-1.25 EZ

EZ Keeper, Aluminum Transformer Stud Connector, 6 Conductor, 1/0-750 kcmil, Aluminum and Copper, (1/0 to 350 kcmil use 240 in-lb or 20 ft-lb) 400 to 750 kcmil use 360 in-lb or 30 ft-lb). Length 14 inches x 2 inch tall x 2-5/8 inch wide. 1-1/4 inch Stud Size. Three Holes tapped at 5/8-18 UNF-2B (Break-Thru) for Stud.
Aluminum Transformer Connector with StreetLight option, ZeeBar, #6-500 kcmil, Aluminum-Copper, Fits Stud Size 5/8 inch and 1 inch, Six Outlets, Length 5-11/16, Height 2-7/8 inch. Ball-Bottom Screws. Right Handed. Oxide Inhibitor.

Z 3035 USLRC

Aluminum Transformer Connector with StreetLight option, ZeeBar, #6-500 kcmil, Aluminum-Copper, Fits Stud Size 5/8 inch and 1 inch, Six Outlets, Length 5-11/16, Height 2-7/8 inch. Ball-Bottom Screws. Right Handed. Oxide Inhibitor.
Submersible Transformer Connector, Aluminum Bus connector, 1/0 - 750 kcmil, Aluminum and Copper, Stud Size 1 inch, Eight Connector, Insulating Rockets.

FTUH 750-44-1 AWR

Submersible Transformer Connector, Aluminum Bus connector, 1/0 - 750 kcmil, Aluminum and Copper, Stud Size 1 inch, Eight Connector, Insulating Rockets.
Insulated Bus Connector - 4 Terminals In-Line, Number of Ports 3, 3 2-Bolt Large Terminals with 4 stranded - 500 kcmil, Wire Range 12 solid - 4 stranded for Street Light Option

UPC33SL1

Insulated Bus Connector - 4 Terminals In-Line, Number of Ports 3, 3 2-Bolt Large Terminals with 4 stranded - 500 kcmil, Wire Range 12 solid - 4 stranded for Street Light Option
Flood-Seal Bus Connectors, length 10.8 inch, 248 mm, height with sleeve 6.5 inch, 165 mm, 2-bolt large term 0, 1-bolt small term 6, ports 6

UPC60

Flood-Seal Bus Connectors, length 10.8 inch, 248 mm, height with sleeve 6.5 inch, 165 mm, 2-bolt large term 0, 1-bolt small term 6, ports 6
Flood-Seal Bus Connectors, length 5.3 inch, 135 mm, height with sleeve 8.8 inch, 222 mm, 2-bolt large term 1, 1-bolt small term 2, ports 3

UPC31

Flood-Seal Bus Connectors, length 5.3 inch, 135 mm, height with sleeve 8.8 inch, 222 mm, 2-bolt large term 1, 1-bolt small term 2, ports 3
Flood-Seal Bus Connectors, length 11.3 inch, 287 mm, height with sleeve 8.8 inch, 222 mm, 2-bolt large term 2, 1-bolt small term 4, ports 6

UPC62

Flood-Seal Bus Connectors, length 11.3 inch, 287 mm, height with sleeve 8.8 inch, 222 mm, 2-bolt large term 2, 1-bolt small term 4, ports 6
Flood-Seal Bus Connectors, length 3.8 inch, 97 mm, height with sleeve 8.8 inch, 222 mm, 2-bolt large term 2 , 1-bolt small term 0, ports 2

UPC22

Flood-Seal Bus Connectors, length 3.8 inch, 97 mm, height with sleeve 8.8 inch, 222 mm, 2-bolt large term 2 , 1-bolt small term 0, ports 2
