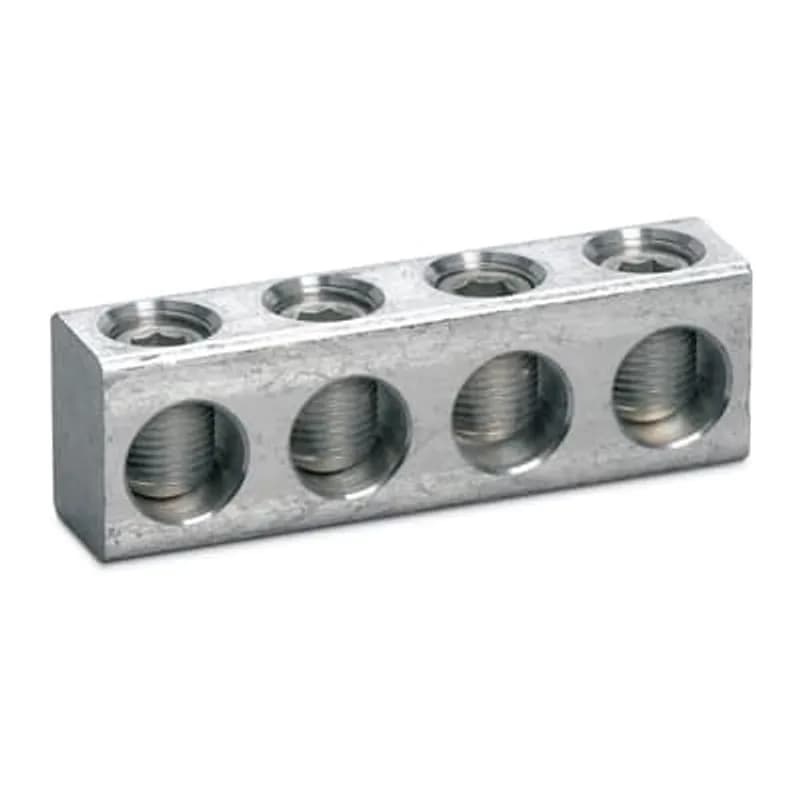

ABB Installation Products ABC 4500 MHTN Aluminum Set Screw Bar Pedestal Connector, #6 - 500 kcmil, Aluminum-Copper, Four Conductor
UPC: 783786682539
Documents & Media
Contact for Pricing
Minimum Qty: 50
Multiplier: 50
*Contact for lower quantities*
Call (262) 252-1600 or email [email protected] for pricing and availability.
Overview
- Four-conductor design supports #6 to 500 kcmil wire ranges
- Aluminum-copper alloy reduces galvanic corrosion in mixed-metal systems
- Set-screw termination enables tool-free installation and reconfiguration
- Pedestal design allows for clear labeling and easy maintenance access
- Compatible with standard DIN rail mounting for industrial panels
Specifications
Material | Aluminum |
Mounting | Pedestal |
Type | Set Screw Bar Pedestal Connectors |
Wire Size | #6 to 500 kcmil |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.5900 L |
Package Weight (Metric) | 0.2680 kg |
ABC 500-33
Aluminum Set-Screw Bar Pedestal Connectors - Double-Row Bar cable range 6-500, length 3-1/16 in, width 2-3/4 in, boot no. FB 33, outlets 6
ABC 350-33 C
Aluminum Set-Screw Bar Pedestal Connectors - Double-row Bar Cable Range 12-350, Length 3 inch, Width 2-1/2 inch, Boot No. FB 33, Outlets 6, With Oxide InhibitorABC 6350 DS BB 11BLK
Aluminum Set Screw Bar Pedestal Connector, #12 - 350 kcmil, Aluminum-Copper, Six Conductor, BlackABC 4500 C
Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range 6-500, length 4-1/16 inch, outlets 4, with Oxide Inhibitor, Uses Boot number BB 11 - order separately.ABC 6500 BB 14YW
Aluminum Set Screw Bar Pedestal Connector, #6 - 500 kcmil, Aluminum-Copper, Six Conductor, YellowABC 6500 BSF
Aluminum Set Screw Bar Pedestal Connector, Dual Rated, Conductor Size #6 - 500 kcmil, Aluminum-Copper, Six Conductor, Boot is BB12, BSF (Ball Screw, Foil On Connector)ABC 6500 CK
Aluminum Set Screw Bar Pedestal Connector Kit, #6 - 500 kcmil, Aluminum-Copper, Six ConductorABC 6500 C-SW
Aluminum Set Screw Bar Pedestal Connector, Dual Rated, Conductor Size #6 - 500 kcmil, Aluminum-Copper, Six Conductor Oxide Inhibitor, SW (Shrink wrapped)Frequently Asked Questions
How many conductors can this connector handle?
The ABC 4500 MHTN is designed for four conductors.
What wire sizes does this connector support?
The ABC 4500 MHTN supports conductor sizes from #6 AWG to 500 kcmil.
What type of termination does this connector use?
It uses a set-screw termination for secure, vibration-resistant connections.
Is this connector compatible with copper-only systems?
Yes, the aluminum-copper alloy is suitable for both aluminum and copper conductors.
Can this connector be mounted on a DIN rail?
Yes, the ABC 4500 MHTN is compatible with standard DIN rail mounting.
