AB2431/2

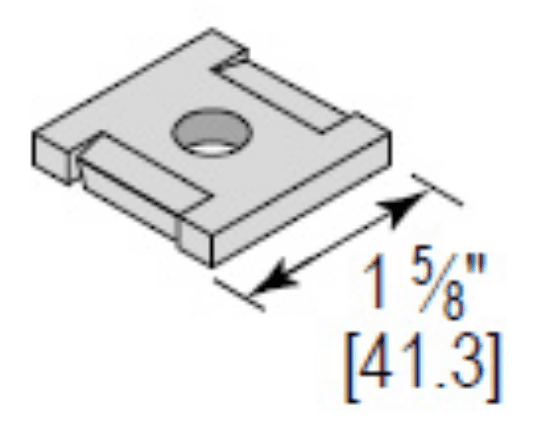

The U-Shaped Strut Washer provides a more secure connection for strut to threaded rod assemblies.

For a 1/4 inch rod washer, the allowable load rating is 150 lbf (1.07 kN).

For a 3/8 inch rod washer, the nominal D dimension is 7/16 inch (11mm).

For a 1/4 inch rod washer, the nominal D dimension is 5/16 inch (8mm).

The allowable load ratings for these U-Washers are based on a factor of safety of 2.

For a 1/2 inch rod washer, the allowable load rating is 1,130 lbf (5.03 kN).

The washers are made from low carbon steel and come in gold-galvanized and silver-galvanized (EG) finishes.

The H123 series U-Shaped Strut Washers fit 1 1/2 inch framing channel.

The AB243 series U-Shaped Strut Washers fit 1 5/8 inch framing channel.

These washers are available for 1/4 inch, 3/8 inch, and 1/2 inch all thread rod diameters.
