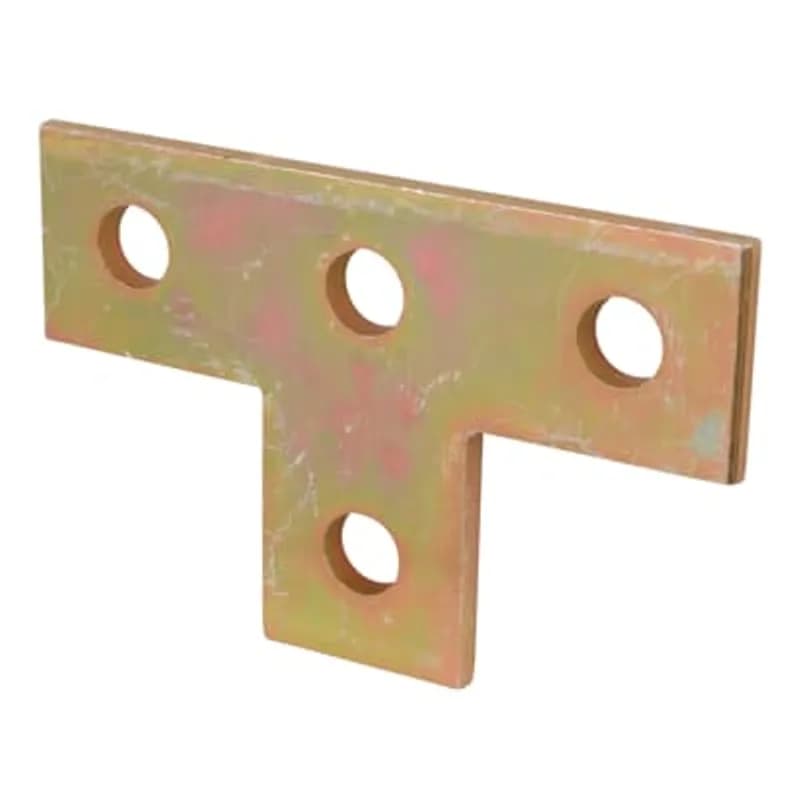

ABB - Installation Products AB220-TB - Plate, Tee, Height 3-1/2 Inches, Length 5-3/8 Inches, Width 1-5/8 Inches, Hole Diameter 9/16 Inches, Steel
More images

ABB Installation Products AB220-TB Plate, Tee, Height 3-1/2 Inches, Length 5-3/8 Inches, Width 1-5/8 Inches, Hole Diameter…

UPC: 616013148273


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB AB220-TB Steel Tee Plate is a precision-engineered mounting component designed for industrial applications requiring secure structural support. Manufactured by ABB - Installation Products, this tee plate features exact dimensions of 3-1/2 inches in height, 5-3/8 inches in length, and 1-5/8 inches in width, with a 9/16-inch hole diameter for standardized fasteners. Constructed from durable steel, it provides high tensile strength and corrosion resistance for long-term reliability in demanding environments. Ideal for electrical installations, mechanical assemblies, and structural frameworks, the ABB AB220-TB ensures precise alignment and load distribution. The standardized hole diameter ensures compatibility with common industrial hardware, reducing installation time and complexity. Trust ABB’s expertise in installation products for dependable performance in critical applications.
  • Precision steel construction for high strength and durability
  • Exact dimensions: 3.5" height x 5.375" length x 1.625" width
  • 9/16" hole diameter for standardized industrial fasteners
  • Corrosion-resistant finish for long-term reliability

Specifications

Application
For use in metal framing applications
Finish
GoldGalv/Standard
Length
3-1/2 in
Material
Steel
Mounting Hole Width
9/16 in
Number Of Holes
4
Plate Type
Tee
Size
Height: 3-1/2 Inches, Length: 5-3/8 Inches, Width: 1-5/8 Inches
Special Features
Excellent corrosion reisistance
Type
Fittings, Brackets & Hardware
Width
1-5/8 in
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.750 L
Package Weight (Metric)
0.340 kg
