UPC: 785991625905
Documents & Media
Contact for Pricing
Overview
- Precision-engineered brass construction for corrosion resistance and durability
- Achieves flush finish with floor via two opposing corner screws
- Compatible with ABB 78, 88, and 98 Series Floor Boxes
- Die-cast zinc-alloy base ensures structural integrity
- Suitable for wet locations with appropriate covers
Specifications
Application | For use with 78, 88 & 98 series floor boxes |
Color | Brass |
Knockouts | False |
Knockouts | 0 |
Material | Brass |
Mounting Type | Flush with floor via corner screws |
Series | 78, 88, and 98 Series Floor Boxes |
Series | 8805 |
Size | For 78, 88, and 98 Series Floor Boxes |
Type | Flush Service |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.300 L |
Package Weight (Metric) | 0.136 kg |

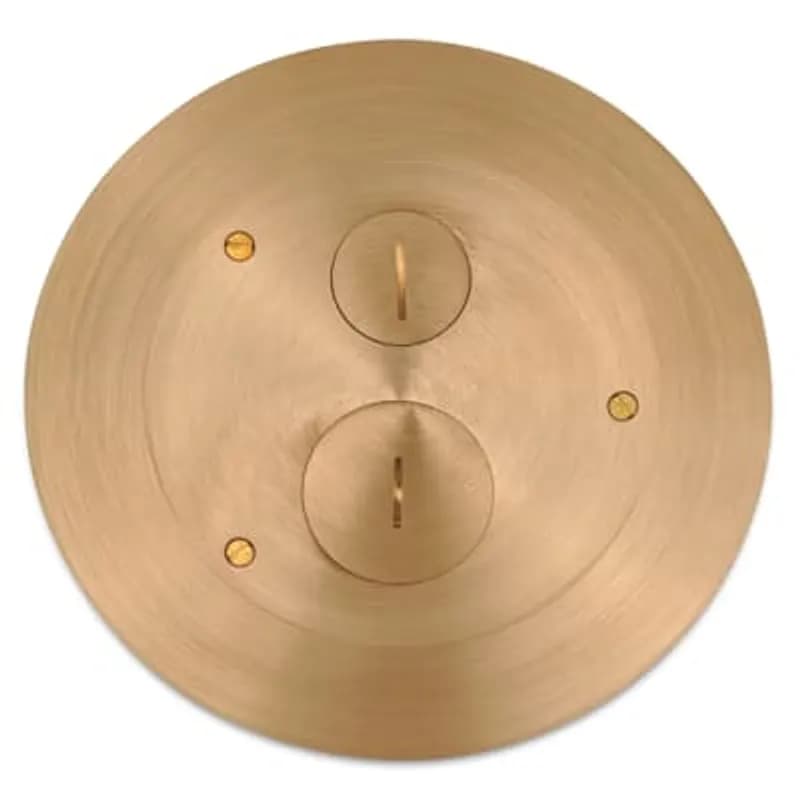

68-HP-FFC-BRS
Furniture Feed Cover, 8 Inch Flange Diameter, 1 Inch and 1-1/2 Inch Threaded Plugs, Solid Brass with Brushed Finish, For Flush Service Round Floor Box, 140 Cubic Inches, Opening Diameter 5-31/32 Inches, Base Diameter 8-1/8 Inches, Depth 6 Inches, 1 Inch and 1-1/2 Inch Conduit Hubs, Non-Metallic, Minimum Concrete Depth Flush 4 Inches Furniture Feed 3-1/2 Inches

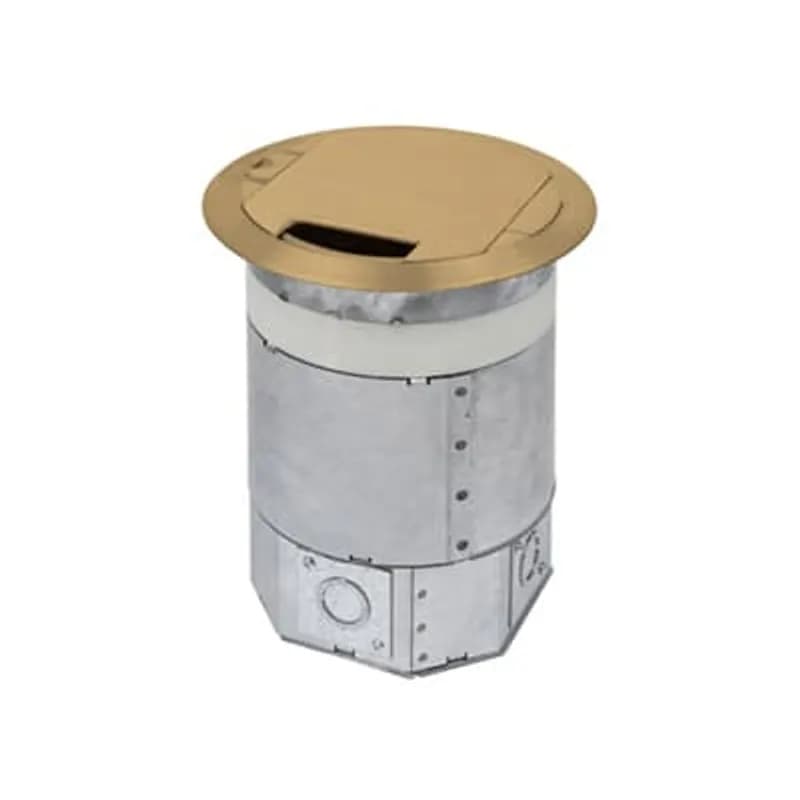

RPT8-5G-BRSC
Recessed Five-Gang Poke Through, Cover Diameter 10 Inches, Core Drill Size 8 Inches, Depth 11-3/4 Inches, Knockout Size 3/4 Inch, 1 Inch, 1-1/4 Inch, 1-1/2 Inch, and 2 Inches, Cover Finish Machined, Cover Material Brass, Box Material Steel, Chicago Approved

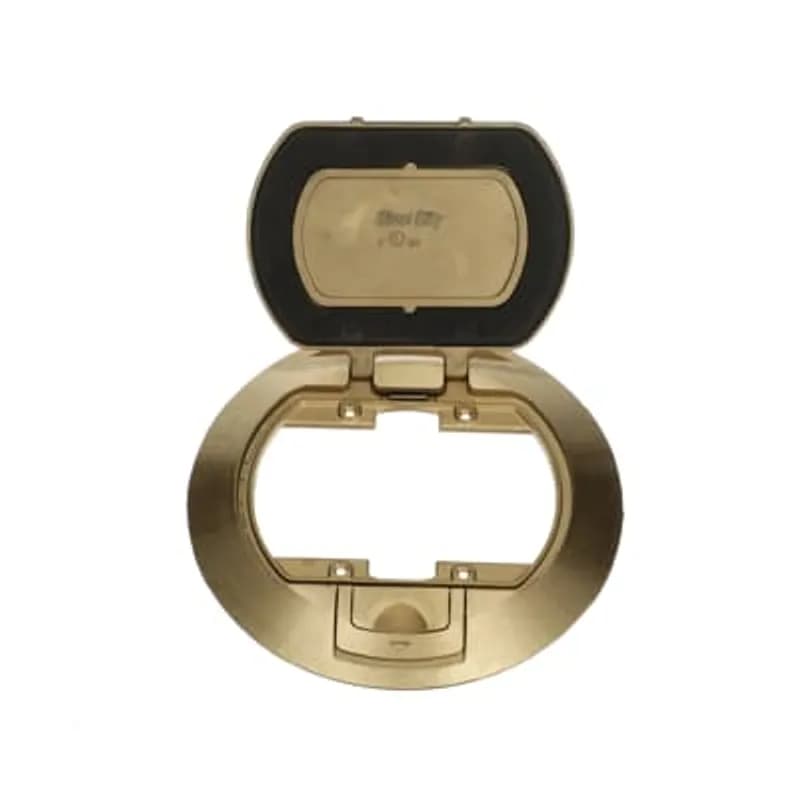

68-HP-FC-BRS
Flush Cover, Solid Brass with Brushed Finish, 1000 Pound Load Limit, For Flush Service Round Floor Box, 140 Cubic Inches, Opening Diameter 5-31/32 Inches, Base Diameter 8-1/8 Inches, Depth 6 Inches, 1 Inch and 1-1/2 Inch Conduit Hubs, Non-Metallic, Minimum Concrete Depth Flush 4 Inches Furniture Feed 3-1/2 Inches

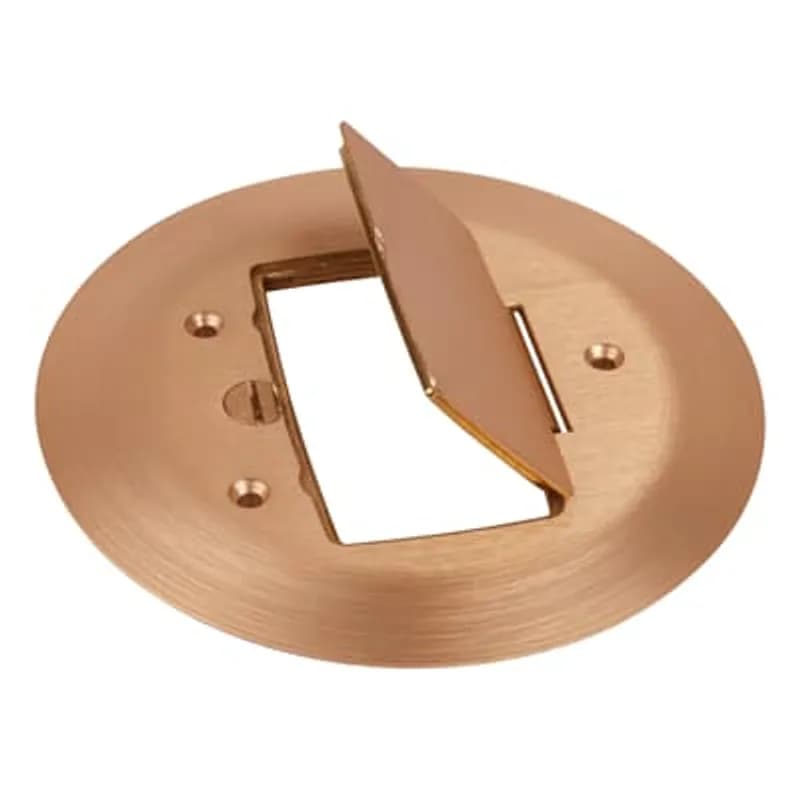

P60-CACP-GFCI
One-Piece Carpet Plate for Flush Service Floor Boxes, 5-3/4 Inch Diameter, GFCI Receptacle, Brass

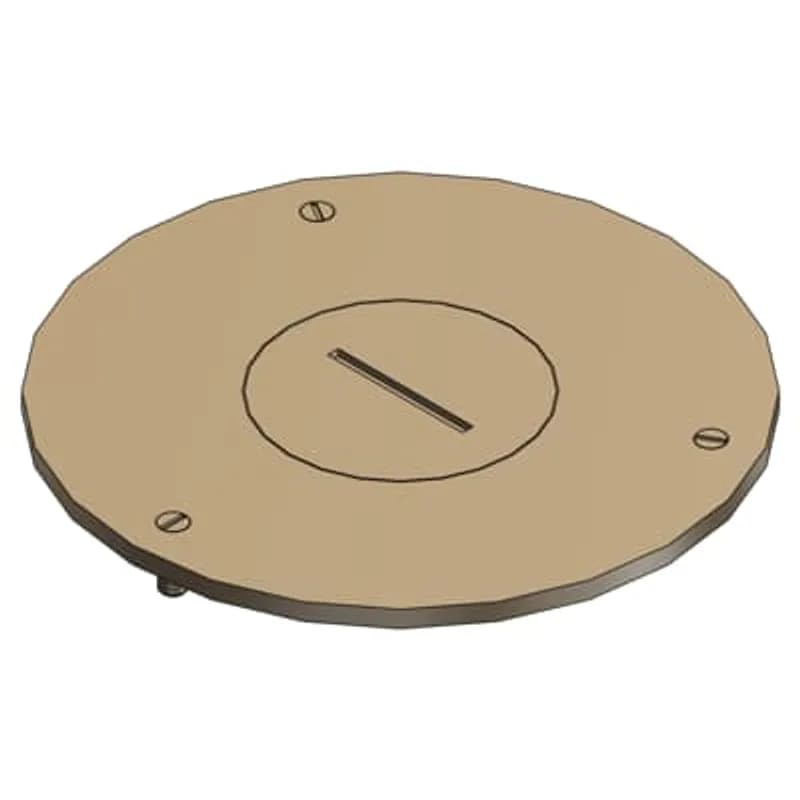

P 60 1 1/4
Cover Plate for Flush Service Floor Boxes, 4 Inch Diameter, 1-1/4 Inch NPS Plug Size, Brass

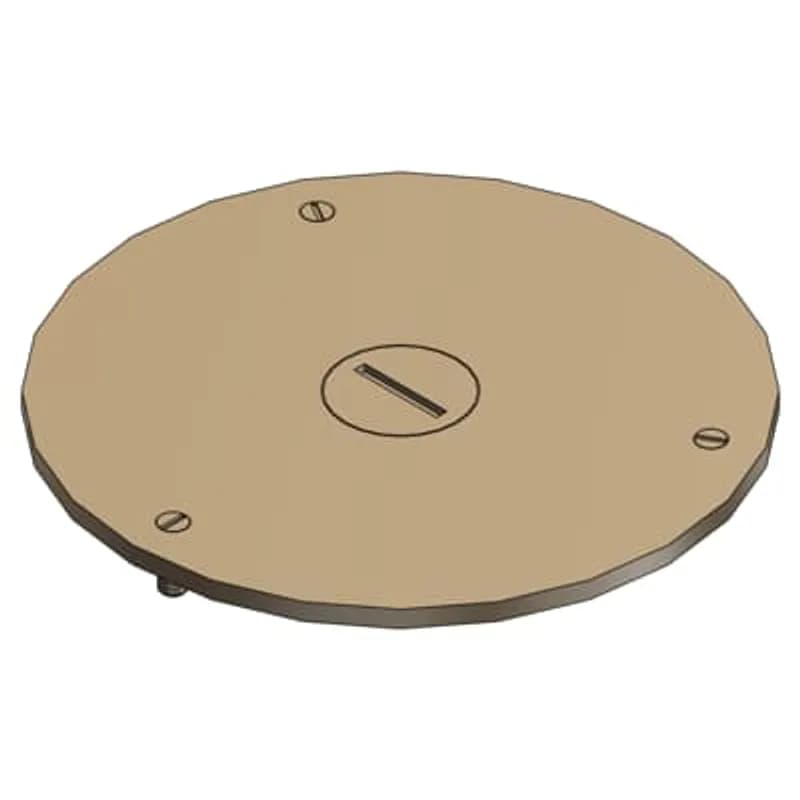

P 67 1/2
Cover Plate for Flush Service Floor Boxes, 3-1/2 Inch Diameter, 1/2 Inch NPS Plug Size, Brass

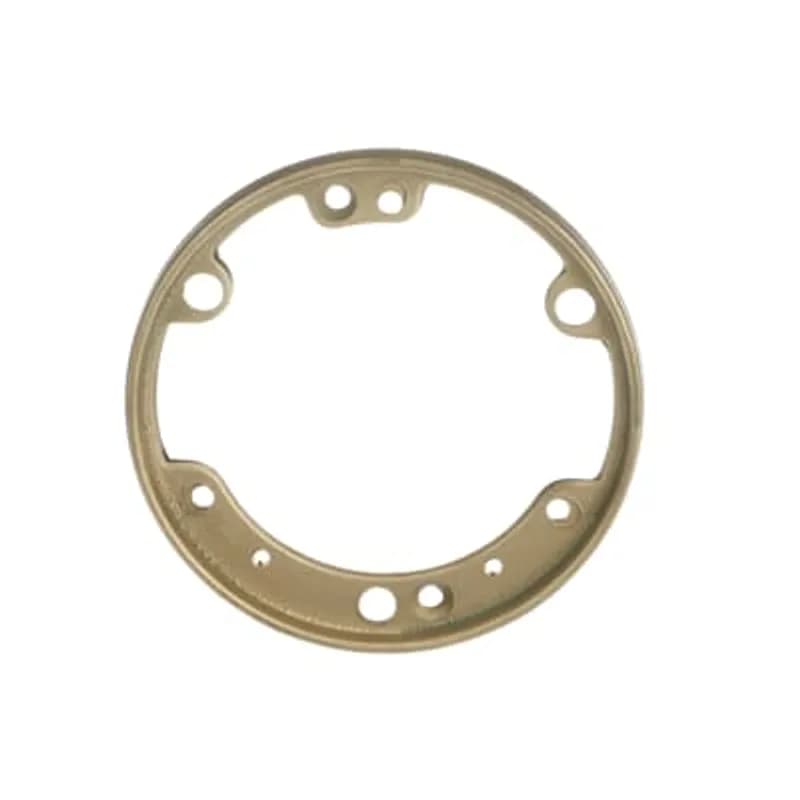

68PFL
Tile Trim Ring, Brass, For use with Flush Service Floor Box, 100 Cubic Inches, Opening Diameter 5-5/32 Inches, Base Diameter 6-3/8 Inches, Depth 6 Inches, 3/4 Inch and 1 Inch Conduit Tapping, Plastic, For Power or Communications/Data

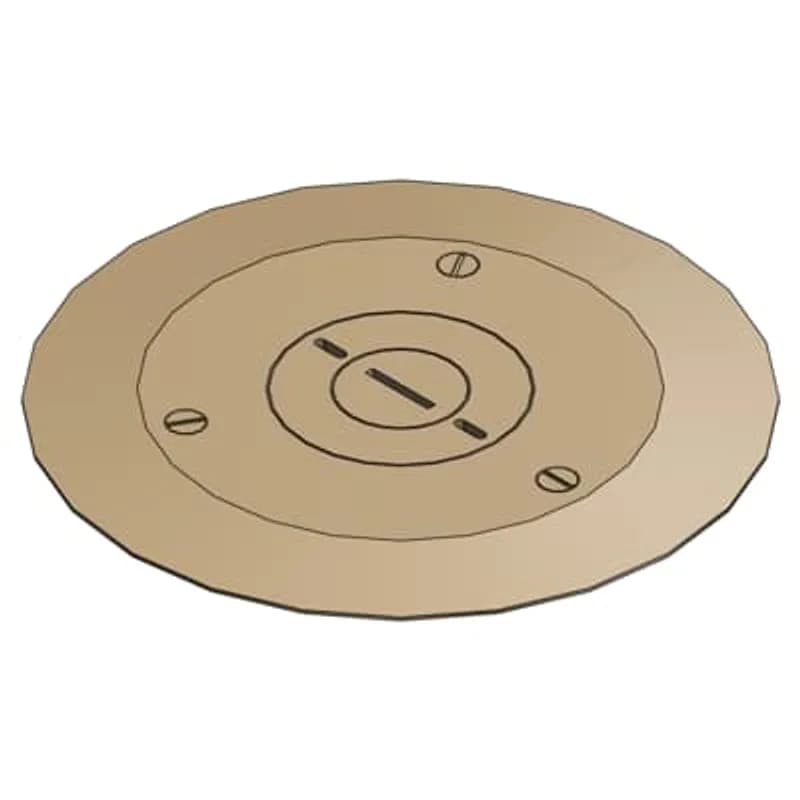

P 60 3/4 2 CACP
One-Piece Carpet Plate for Flush Service Floor Boxes, 5-3/4 Inch Diameter, 3/4 Inch and 2 Inch Plug Size, Brass
Frequently Asked Questions
What is the receptacle capacity of the unit?
The unit has a capacity for one duplex receptacle. Assembled units include a 20A duplex receptacle.
What core drill size is required for installation?
A core drill size of 4 inches is required for installation.
What colors are available for non-metallic covers?
Non-metallic covers are available in black, gray, beige, and brown.
What knockout sizes are featured on the integral function box?
The integral function box features 1/2 in and 3/4 in knockouts.
What is the cubic inch capacity of the function box?
The integral function box has a 32 cubic inch capacity.
Are assembled units pre-wired?
Yes, assembled units include a pre-wired 20A duplex receptacle with pigtail ends in the function box.
What is the equivalent conduit size for the power opening?
The opening for power is equivalent to one 1/2 in conduit.
What is the equivalent conduit size for communication openings?
The opening for communication is equivalent to two 3/4 in conduits.
What is the primary use of the ABB Flush Series?
The ABB Flush Series provides an economical solution for installing a duplex receptacle in an existing floor where it is needed.
What materials are available for the covers?
Covers are available in brushed brass, aluminum, and non-metallic options.
