ABB - Installation Products 841-TB - 3/8 Inch Chase Nipple, Steel for Use with Rigid/IMC Conduit

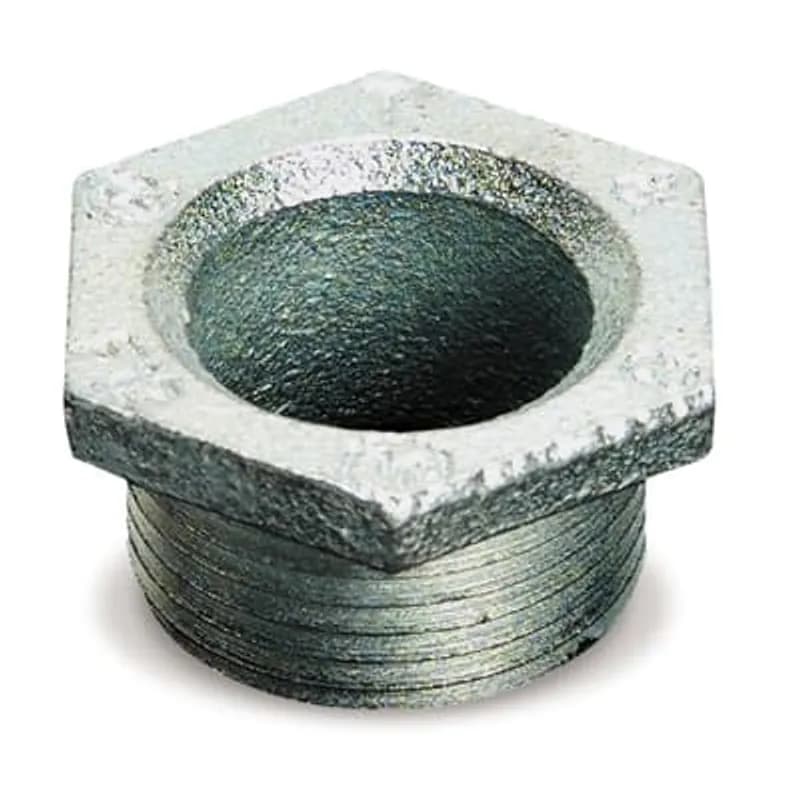

ABB Installation Products 841-TB 3/8 Inch Chase Nipple, Steel for Use with Rigid/IMC Conduit

UPC: 786210008417


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 841-TB is a 3/8 inch chase nipple constructed from steel, specifically designed for secure connections with Rigid and Intermediate Metal Conduit (IMC). This component is essential for creating robust and reliable electrical raceway systems. Its primary function is to provide a threaded connection point, allowing conduit to pass through a box or enclosure while maintaining a secure and grounded pathway for electrical wiring. The steel construction ensures durability and resistance to physical damage, crucial for protecting sensitive electrical circuits in industrial and commercial settings. This chase nipple is compatible with standard 3/8 inch trade size Rigid and IMC conduit, ensuring a precise fit and preventing loosening under vibration or stress. Its design facilitates a clean and professional installation, contributing to the overall integrity of the electrical infrastructure. The ABB 841-TB is a straightforward, functional component that fulfills a critical role in conduit assembly, offering a dependable method for transitioning conduit into enclosures. Manufacturer: ABB - Installation Products. SKU: 841-TB. UNSPSC Code: 39131718.
  • 3/8 Inch Trade Size
  • Steel Construction
  • For Rigid Conduit
  • For IMC Conduit
  • Provides Threaded Connection

Specifications

Application
To Effectively Bush Factory or Field-Punched, Cut, or Drilled Holes In Metal Boxes or Enclosures. To Couple Boxes Back-to-Back
Material
Steel
Material
Other
Standard
UL E23018, CSA
Trade Size
3/8 in
Type
Chase Conduit Nipple
Package Dimensions (L x W x H)
4 IN x 4 IN x 3 IN
Package Dimensions (L x W x H)
10.16 cm x 10.16 cm x 7.62 cm
Package Weight (Imperial)
0.0300 L
Package Weight (Metric)
0.0140 kg
3/8 Inch Chase Nipple, for Use with Conduit Coupling or Locknut

HA 400

3/8 Inch Chase Nipple, for Use with Conduit Coupling or Locknut
Bridgeport NIP-200300 Rigid Conduit Steel Threaded Nipple 2" X 3"

NIP-200300

Bridgeport NIP-200300 Rigid Conduit Steel Threaded Nipple 2" X 3"
3/4 Inch Chase Nipple, Aluminum, Electro Zinc Plated for Use with Rigid/IMC Conduit

843AL-TB

3/4 Inch Chase Nipple, Aluminum, Electro Zinc Plated for Use with Rigid/IMC Conduit
3/4 Inch Chase Nipple, Malleable Iron for Use with Rigid/IMC Conduit

843-TB

3/4 Inch Chase Nipple, Malleable Iron for Use with Rigid/IMC Conduit
1/2 Inch Chase Nipple, Aluminum, Electro Zinc Plated for Use with Rigid/IMC Conduit

842AL-TB

1/2 Inch Chase Nipple, Aluminum, Electro Zinc Plated for Use with Rigid/IMC Conduit
1 Inch Chase Nipple, Aluminum, Electro Zinc Plated for Use with Rigid/IMC Conduit

844AL

1 Inch Chase Nipple, Aluminum, Electro Zinc Plated for Use with Rigid/IMC Conduit
1 Inch Chase Nipple, Malleable Iron for Use with Rigid/IMC Conduit

844

1 Inch Chase Nipple, Malleable Iron for Use with Rigid/IMC Conduit
1-1/4 Inch Chase Nipple, Malleable Iron for Use with Rigid/IMC Conduit

845

1-1/4 Inch Chase Nipple, Malleable Iron for Use with Rigid/IMC Conduit

Frequently Asked Questions

Are any of the chase nipples octagonal?

Yes, catalog numbers such as 851, 853, and 854 are octagonal.

What type of products are described?

The document describes various sizes of chase nipples.

What materials are used for these nipples?

These chase nipples are made from either Malleable Iron or Steel, depending on the specific catalog number.

What is the standard finish for these products?

The standard finish for these chase nipples is Zinc Plate.

How can Dura-Plate finish fittings be ordered?

To order Dura-Plate finish fittings, prefix the desired catalog number with "040-".

Are the dimensions provided exact?

All dimensions listed in the document are for reference only.

Are metric dimensions available?

Yes, dimensions enclosed in brackets [ ] are provided in metric units.

What is the material for catalog number 841?

Catalog number 841 is made of Malleable Iron.

What is the trade size of catalog number 841?

Catalog number 841 has a trade size of 3/8 inch.

What is the material for catalog number 842-TB?

Catalog number 842-TB is made of Steel.
