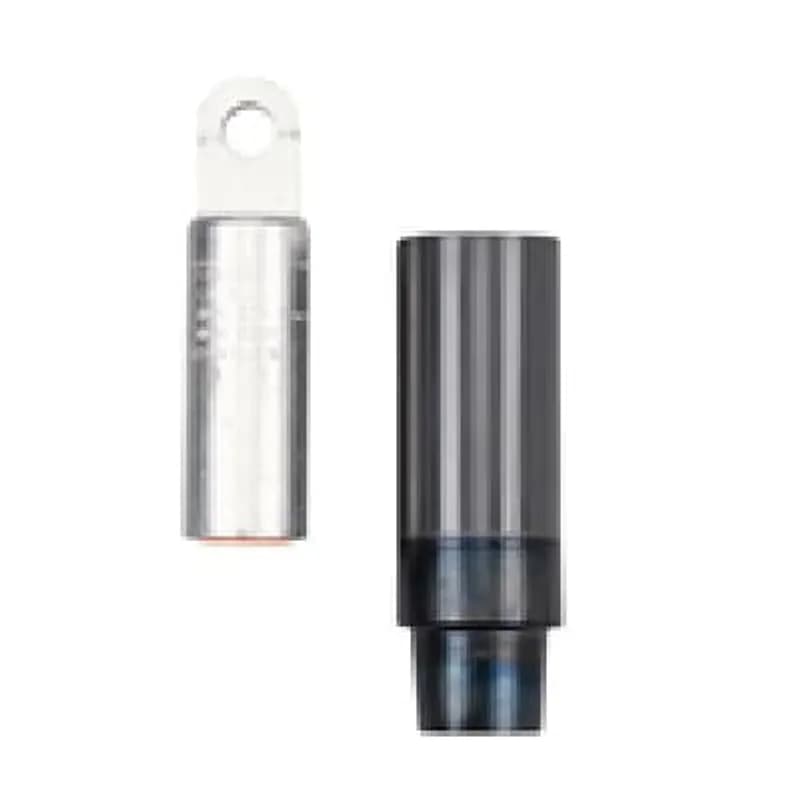

ABB - Installation Products 755CK-J0230-S - 600 Amp, 35KV, Cam-Op, Size Sensitive Kit, Cable Adapter and Lug. Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded #1/ Compacted Solid 1/0 /mmSquared Compact 50. 200ECS Cold-Shrinkable Jacket Seal Included.

ABB Installation Products 755CK-J0230-S 600 Amp, 35KV, Cam-Op, Size Sensitive Kit, Cable Adapter and Lug. Cable Insulation…

UPC: 783786491735


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

This ABB Installation Products kit (SKU: 755CK-J0230-S) provides a comprehensive solution for terminating medium voltage cables. It includes a 600 Amp, 35KV rated Cam-Op cable adapter and an aluminum compression lug. Designed for cables with an insulation diameter ranging from 0.980 inches to 1.180 inches, this kit ensures a secure and reliable connection. The aluminum compression lug is suitable for conductors sized as AWG or kcmil compressed stranded #1/0 or compacted solid 1/0, and in mmSquared, it accommodates compact 50. The kit also features the 200ECS cold-shrinkable jacket seal, which offers effective environmental protection and insulation for the cable jacket. This assembly is engineered for robust electrical connections in medium voltage power distribution systems. The Cam-Op mechanism facilitates quick and secure engagement, while the cold-shrink technology simplifies installation and provides long-term performance. The use of aluminum for the compression lug ensures good conductivity and durability for the conductor termination. This product is part of ABB's extensive range of installation products for electrical infrastructure.
  • 600 Amp, 35KV rated Cam-Op cable adapter and lug kit
  • Accommodates cable insulation diameter from 0.980" to 1.180"
  • Aluminum compression lug for AWG/kcmil #1/0 stranded or solid, and mmSquared 50 compact conductors
  • Includes 200ECS cold-shrinkable jacket seal for environmental protection
  • Manufactured by ABB - Installation Products

Specifications

Application
Deadbreak, 600 Amp, 35kV
Connection
Compression
Connection Type
Compression Lug
Current Rating
600 A
Material
Aluminum
Material
EPDM Cable Adapter
Size
Conductor Size AWG Compressed/Stranded #1 or Compacted/Solid 1/0
Size
0.980 inch to 1.180 inch (cable insulation diameter)
Special Features
Cold-Shrinkable Jacket Seal
Standard
ANSI/IEEE 386
Temperature Rating, Maximum
149 F
Temperature Rating, Maximum
65 C
Temperature Rating, Minimum
-40 F
Temperature Rating, Minimum
-40 C
Type
Cable Adapter and Lug
Voltage Rating
35 kV
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.9000 L
Package Weight (Metric)
0.8620 kg
600 Amp, 35KV, Cam-Op, Size Sensitive Kit, Cable Adapter and Lug. Cable Insulation Diameter 1.725 inch to 1.935 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 1000.

755CK-P0410

600 Amp, 35KV, Cam-Op, Size Sensitive Kit, Cable Adapter and Lug. Cable Insulation Diameter 1.725 inch to 1.935 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 1000.
600 Amp, 35KV, Cam-Op, Size Sensitive Kit, Cable Adapter and Lug. Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 650 /Compacted Solid 750 /mmSquared Compact 400.

755CK-N0360

600 Amp, 35KV, Cam-Op, Size Sensitive Kit, Cable Adapter and Lug. Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 650 /Compacted Solid 750 /mmSquared Compact 400.
600 Amp, 35KV, Cam-Op, Size Sensitive Kit, 600 Series, 35kV, Elbow and Vault Stretcher Size Senstive Kit, Cable Adapter and Lug. Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 450 /Compacted Solid 500/550.

755CK-M0320

600 Amp, 35KV, Cam-Op, Size Sensitive Kit, 600 Series, 35kV, Elbow and Vault Stretcher Size Senstive Kit, Cable Adapter and Lug. Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 450 /Compacted Solid 500/550.
600 Amp, 15/25KV, Cam-Op, Size Sensitive Kit, Cable Adapter and Lug. Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded #2/Compacted Solid #1/mmSquared Compact 35.

655CK-J0220

600 Amp, 15/25KV, Cam-Op, Size Sensitive Kit, Cable Adapter and Lug. Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded #2/Compacted Solid #1/mmSquared Compact 35.
600 Amp, 15/25KV, Cam-Op, Size Sensitive Kit, Cable Adapter and Lug, Cable Insulation Diameter 0.640 inch to 0.820 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 1/0 /Compacted Solid 2/0.

655CK-F0240

600 Amp, 15/25KV, Cam-Op, Size Sensitive Kit, Cable Adapter and Lug, Cable Insulation Diameter 0.640 inch to 0.820 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 1/0 /Compacted Solid 2/0.
600 Series Straight Receptacle Size Sensitive Kit, 15/25KV, 600 Amp, Dead Break, (Cable Adapter, Retaining Ring and Lug), Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size kcmil Compressed Stranded 350 or Solid 400 or mmSquared 185.

655CK-L0300-ARR

600 Series Straight Receptacle Size Sensitive Kit, 15/25KV, 600 Amp, Dead Break, (Cable Adapter, Retaining Ring and Lug), Cable Insulation Diameter 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size kcmil Compressed Stranded 350 or Solid 400 or mmSquared 185.
600 Amp, 35KV, Cam-Op, Size Sensitive Kit, Cable Adapter and Lug. Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300.

755CK-N0330

600 Amp, 35KV, Cam-Op, Size Sensitive Kit, Cable Adapter and Lug. Cable Insulation Diameter 1.515 inch to 1.780 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 500 /Compacted Solid 600 /mmSquared Compact 250/300.
600 Amp, 35KV, Cam-Op, Size Sensitive Kit, 600 Amp, 35KV, Elbow and Vault Stretcher Size Sensitive kit with Cable Adapter and Lug, Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 350 /Compacted Solid 400 /mmSquared Compact 185.

755CK-M0300

600 Amp, 35KV, Cam-Op, Size Sensitive Kit, 600 Amp, 35KV, Elbow and Vault Stretcher Size Sensitive kit with Cable Adapter and Lug, Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 350 /Compacted Solid 400 /mmSquared Compact 185.

Frequently Asked Questions

What are the applications of this kit?

The Elastimold 600A Series Size Sensitive Kit provides components for all 135kV, 600 series connectors, excluding Stick-Op and products requiring a retaining ring.

What is the impulse withstand rating?

The impulse withstand (BIL) rating is 150kV (1.2 x 50 microsecond wave).

What is the DC 15-minute withstand voltage?

The DC 15-minute withstand voltage is 103kV.

What is the AC one-minute withstand voltage?

The AC one-minute withstand voltage is 50kV.

What materials are used in construction?

The kit features 100% peroxide-cured construction, including insulation and conductive EPDM materials.

What is the continuous current rating?

The continuous current rating for the kit is 600 Amps.

What is the maximum operating voltage?

For the 35kV voltage class, the maximum phase-to-ground operating voltage is 21.1kV, and phase-to-phase is 36.6kV.

What standards does the kit meet?

The kit meets ANSI/IEEE Standard 386, Latest Revision.

What components are included in the kit?

Each kit contains a 755CA-W cable adapter, a 03700XXX crimp connector, one copper compression lug (03700XXX), and a crimp chart (CC-0050).

What is the corona extinction voltage rating?

The corona extinction voltage is 26kV AC at 3pC sensitivity.
