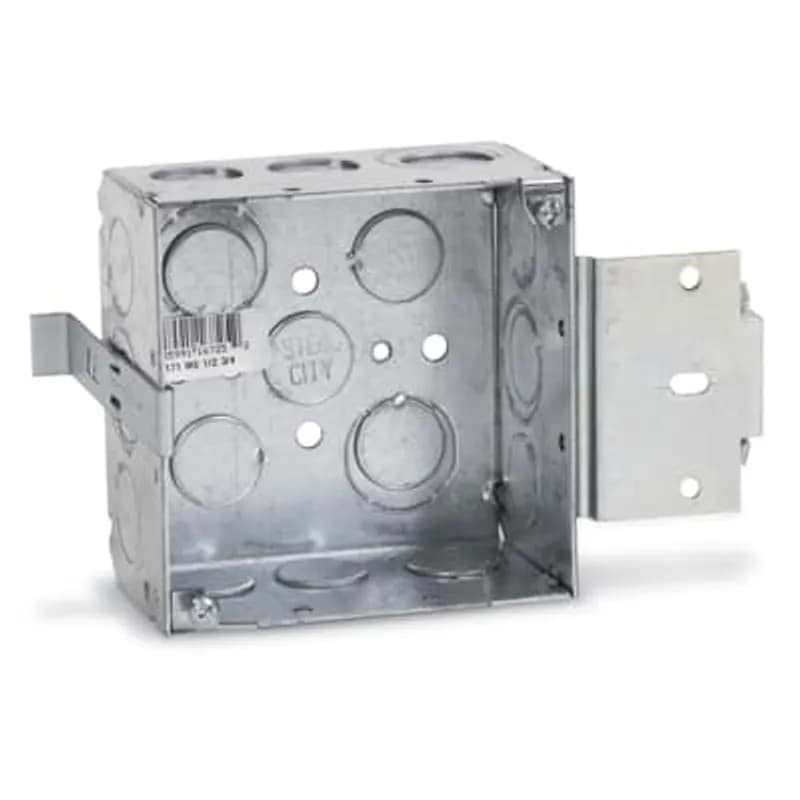

ABB - Installation Products 72171MSP - Square Box, 42 Cubic Inches, 4-11/16 Inches Square x 2-1/8 Inches Deep, 1/2 Inch and 3/4 Inch Eccentric Knockouts, Pre-Galvanized Steel, Welded Construction, with Metal Stud Bracket and 10-1/2 Inch #12 AWG Solid Wire Pigtail, For use with Conduit
ABB - Installation Products

72171MSP

UPC: 785991043839

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Overview

The ABB 72171MSP 42 cubic inch square box is a high-performance electrical enclosure engineered for industrial and commercial electrical installations. Constructed from durable pre-galvanized steel with welded seams, this enclosure delivers superior strength and corrosion resistance, ensuring long-term reliability in demanding environments. The 4-11/16" x 2-1/8" dimensions provide ample internal volume for housing electrical components, junction boxes, or wiring systems while maintaining a compact footprint for space-efficient installations. Designed for versatility, the 72171MSP features 1/2" and 3/4" eccentric knockouts that accommodate standard conduit sizes, simplifying connections to EMT, IMC, or rigid conduit systems. The included metal stud bracket enables secure, code-compliant mounting to metal framing or studs, reducing installation time and labor costs. Additionally, the integrated 10-1/2" #12 AWG solid wire pigtail streamlines grounding and wiring connections, enhancing safety and efficiency during setup.
  • 42 cubic inch capacity with 4-11/16" x 2-1/8" dimensions for ample wiring space
  • Pre-galvanized steel construction with welded seams for durability and corrosion resistance
  • 1/2" and 3/4" eccentric knockouts for versatile conduit connections
  • Includes metal stud bracket for secure mounting to framing or studs
  • 10-1/2" #12 AWG solid wire pigtail simplifies grounding and wiring

Specifications

Application
For use with the conduits
Cable Entry
Knockouts
Color
Gray
Cubic Capacity
42 in3
Cubic Capacity
688258.2 mm3
Depth
2-1/8 in
Height
4-11/16 in
Material
Steel
Mounting
Bracket
Number Of Outlet
1
Size
4-11/16 Inches Height x 4-11/16 Inches Width x 2-1/8 Inches depth
Special Features
Fits all apparatus covers and is available in all box sizes
Standard
UL E2969
Standard
UL E2969 / UL E2969
Type
eFab
Width
4-11/16 in
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.240 L
Package Weight (Metric)
0.563 kg
QLine D Enclosure Type 4X, 122x120x56mm, Light Gray, Polycarbonate

Q12126PCD

QLine D Enclosure Type 4X, 122x120x56mm, Light Gray, Polycarbonate

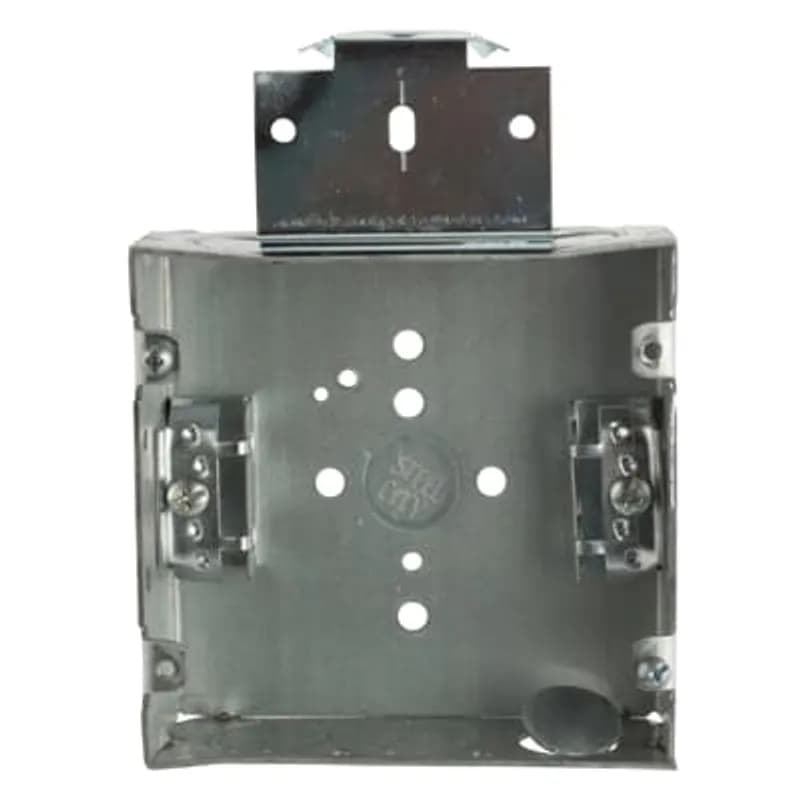

Square Box, 29.5 Cubic Inches, 4-11/16 Inches Square x 1-1/2 Inches Deep, 1/2 Inch and 3/4 Inch Eccentric Knockouts, Pre-Galvanized Steel, Welded Construction, with Metal Stud Bracket and 10-1/2 Inch #12 AWG Solid Wire Pigtail, For use with Conduit

72151MSP

Square Box, 29.5 Cubic Inches, 4-11/16 Inches Square x 1-1/2 Inches Deep, 1/2 Inch and 3/4 Inch Eccentric Knockouts, Pre-Galvanized Steel, Welded Construction, with Metal Stud Bracket and 10-1/2 Inch #12 AWG Solid Wire Pigtail, For use with Conduit
2 1/8" Deep Welded Box 4-Square with Mounting Bracket

FA-402

2 1/8" Deep Welded Box 4-Square with Mounting Bracket
Square Box, 42 Cubic Inches, 4-11/16 Inches Square x 2-1/8 Inches Deep, 1/2 Inch and 3/4 Inch Eccentric Knockouts, Pre-Galvanized Steel, Welded Construction, with Metal Stud Bracket, Armored Cable Clamp (C-3), and10-1/2 inch #12 AWG solid wire pigtail., For use with Armored/Metal Clad Cable

72171MSXP

Square Box, 42 Cubic Inches, 4-11/16 Inches Square x 2-1/8 Inches Deep, 1/2 Inch and 3/4 Inch Eccentric Knockouts, Pre-Galvanized Steel, Welded Construction, with Metal Stud Bracket, Armored Cable Clamp (C-3), and10-1/2 inch #12 AWG solid wire pigtail., For use with Armored/Metal Clad Cable
Square Box, 29.5 Cubic Inches, 4-11/16 Inches Square x 1-1/2 Inches Deep, 1/2 Inch and 3/4 Inch Eccentric Knockouts, Pre-Galvanized Steel, Welded Construction, with Metal Stud Bracket, 10-1/2 Inch #12 AWG Solid Wire Pigtail, and Armored Cable Clamp (C-3), For use with Armored/Metal Clad Cable

72151MSXP

Square Box, 29.5 Cubic Inches, 4-11/16 Inches Square x 1-1/2 Inches Deep, 1/2 Inch and 3/4 Inch Eccentric Knockouts, Pre-Galvanized Steel, Welded Construction, with Metal Stud Bracket, 10-1/2 Inch #12 AWG Solid Wire Pigtail, and Armored Cable Clamp (C-3), For use with Armored/Metal Clad Cable
Square Box, 30.3 Cubic Inches, 4 Inch Square x 2-1/8 Inches Deep, 1 Inch Knockouts, Pre-Galvanized Steel, Welded Construction, with 10-1/2 Inch #12 AWG Solid Ground Wire Pigtail, For use with Conduit

52171 1P

Square Box, 30.3 Cubic Inches, 4 Inch Square x 2-1/8 Inches Deep, 1 Inch Knockouts, Pre-Galvanized Steel, Welded Construction, with 10-1/2 Inch #12 AWG Solid Ground Wire Pigtail, For use with Conduit

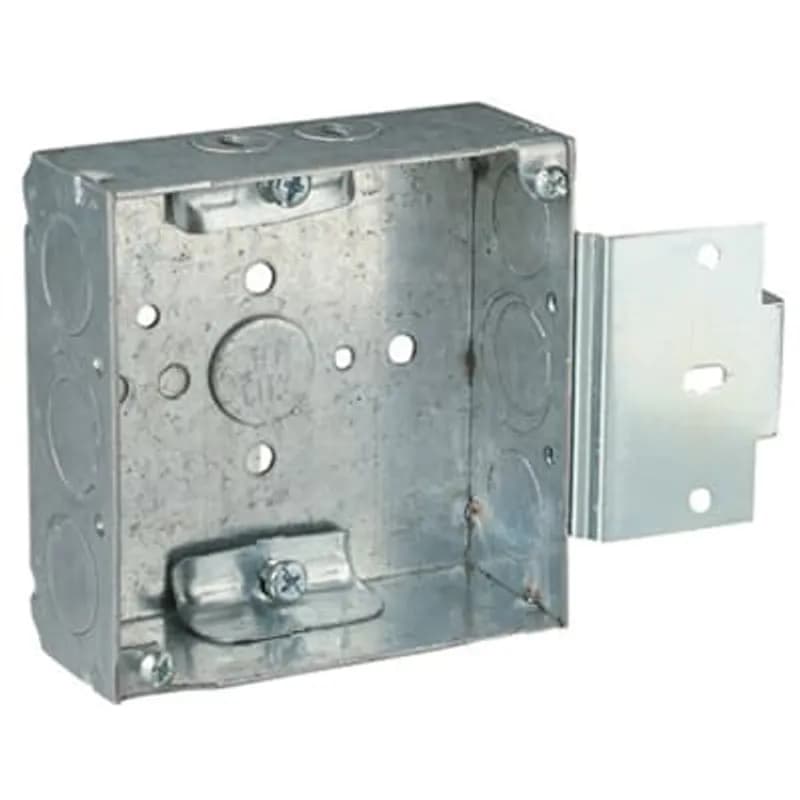

Square Box, 21 Cubic Inches, 4 Inch Square x 1-1/2 Inch Deep, 1/2 Inch and 3/4 Inch Eccentric Knockouts, Pre-Galvanized Steel, with CV Bracket and 10-1/2 Inch #12 AWG Solid Ground Wire Pigtail, For use with Conduit

52151CV1234EP

Square Box, 21 Cubic Inches, 4 Inch Square x 1-1/2 Inch Deep, 1/2 Inch and 3/4 Inch Eccentric Knockouts, Pre-Galvanized Steel, with CV Bracket and 10-1/2 Inch #12 AWG Solid Ground Wire Pigtail, For use with Conduit

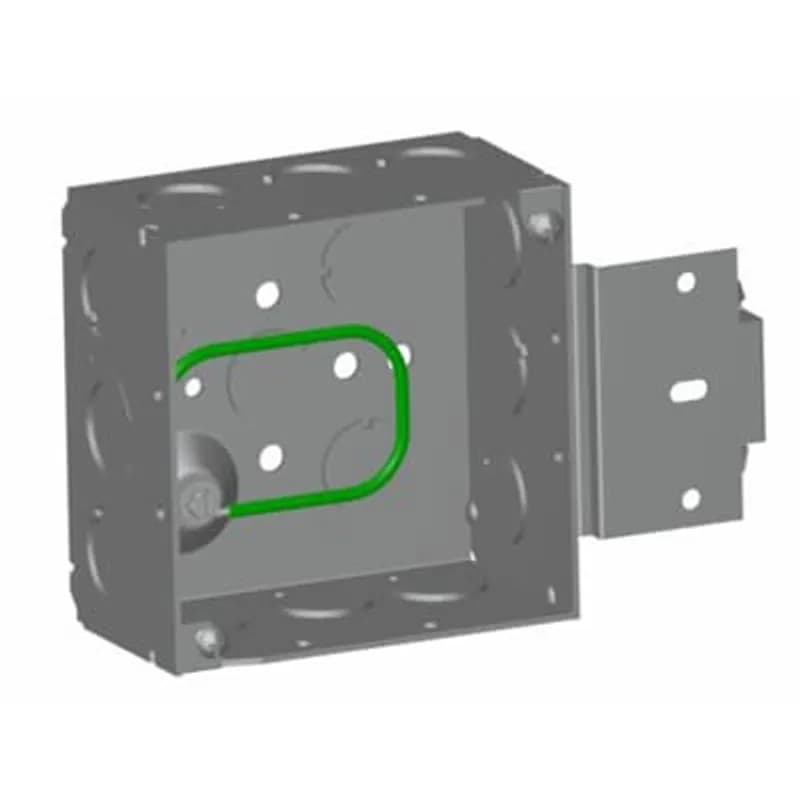

Square Box, 30.3 Cubic Inches, 4 Inch Square x 2-1/8 Inches Deep, 1/2 Inch and 3/4 Inch Eccentric Knockouts, Pre-Galvanized Steel, Welded Construction, with CV Bracket Mounted Flush and 10-1/2 Inch #12 AWG Solid Ground Wire Pigtail, For use with Conduit
