ABB - Installation Products 72171 1 1/4 - Square Box, 42 Cubic Inches, 4-11/16 Inches Square x 2-1/8 Inches Deep, 3/4 Inch, and 1-1/4 Inch Eccentric Knockouts, Pre-Galvanized Steel, Welded Construction, For use with Conduit
ABB - Installation Products

72171 1 1/4

UPC: 785991183009

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 20

Multiplier: 20

*Contact for lower quantities*

Overview

The ABB 72171 1 1/4 Square Box is a pre-galvanized steel electrical enclosure designed for industrial and commercial conduit installations. This welded-steel box measures 4-11/16 inches square by 2-1/8 inches deep, providing 42 cubic inches of internal volume for routing and terminating electrical wiring. The box features 3/4-inch and 1-1/4-inch eccentric knockouts on all sides, allowing flexible conduit entry from multiple angles without the need for additional drilling or modification. Constructed from corrosion-resistant pre-galvanized steel, the enclosure resists rust and degradation in harsh environments, extending service life in wet, outdoor, or chemically aggressive locations. The welded construction ensures structural integrity under mechanical stress and vibration, making it suitable for heavy-duty applications such as machine control panels, distribution boards, and junction pull boxes. With a UNSPSC code of 39121308 and manufactured in the USA, the 72171 meets rigorous electrical installation standards for reliability and safety. Its compact footprint and high cubic capacity make it ideal for space-constrained installations where conduit routing flexibility is critical. The box is compatible with standard 3/4-inch and 1-1/4-inch rigid or EMT conduit systems, supporting both threaded and non-threaded connections. Suitable for use in NEC-compliant electrical systems, this box supports branch circuits, feeders, and control wiring in commercial buildings, industrial facilities, and utility installations.
  • 42 cubic inch capacity for ample wiring and component space
  • 4-11/16" square x 2-1/8" deep dimensions with welded steel construction
  • 3/4" and 1-1/4" eccentric knockouts for flexible conduit entry
  • Pre-galvanized steel finish for corrosion resistance in harsh environments
  • Compatible with 3/4" and 1-1/4" rigid or EMT conduit systems

Specifications

Application
For use with conduit
Color
Silver
Connection Type
Conduit
Cubic Capacity
42 cu in
Cubic Capacity
42 in3
Depth
2-1/8 in
Knockouts
11
Material
Steel
Material
Pre-Galvanized Steel
Material Quality
Steel
Number Of Outlet
1
Size
4-11/16 Inches Height x 4-11/16 Inches Width x 2-1/8 Inches depth
Size
42 Cubic Inches, 4-11/16 Inches Square x 2-1/8 Inches Deep
Standard
UL E2969
Type
Outlet Boxes
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.130 L
Package Weight (Metric)
0.513 kg

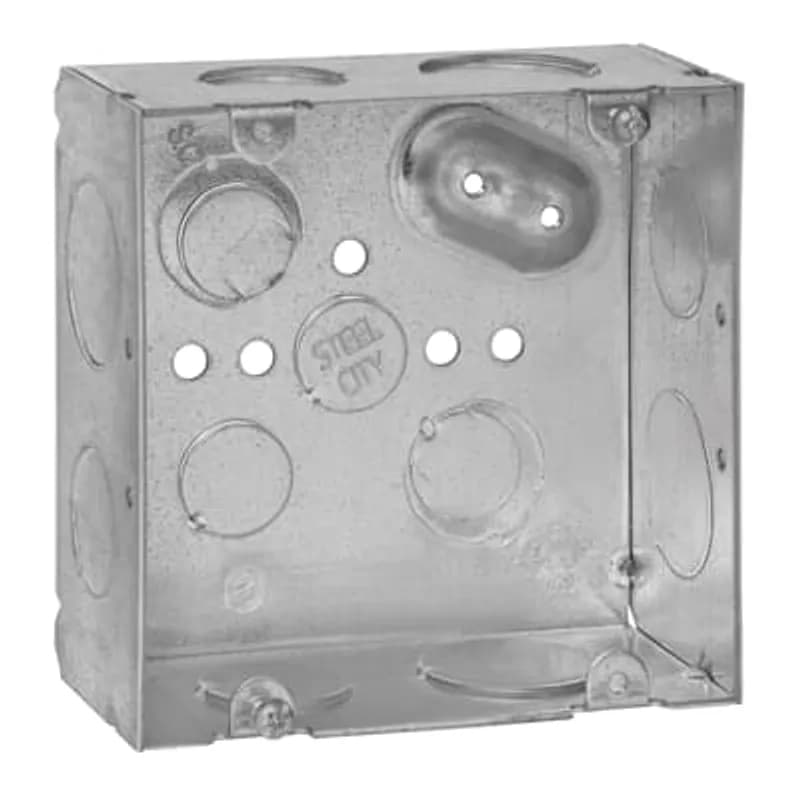

Square Box, 42 Cubic Inches, 4-11/16 Inches Square x 2-1/8 Inches Deep, 3/4 Inch, and 1 Inch Knockouts, Pre-Galvanized Steel, Welded Construction, For use with Conduit

72171 3/4 1

Square Box, 42 Cubic Inches, 4-11/16 Inches Square x 2-1/8 Inches Deep, 3/4 Inch, and 1 Inch Knockouts, Pre-Galvanized Steel, Welded Construction, For use with Conduit

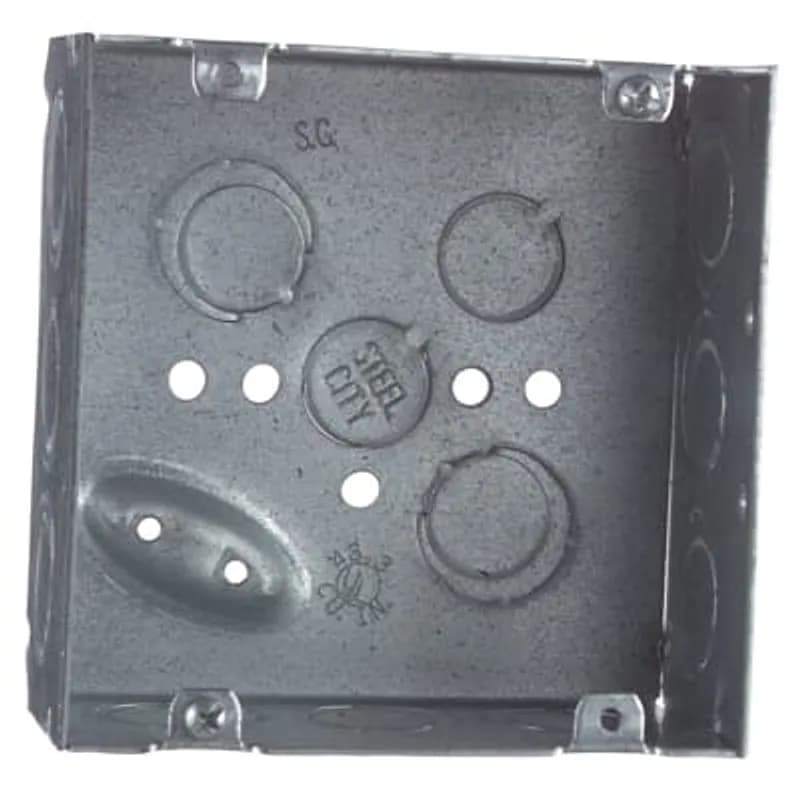

Square Box, 42 Cubic Inches, 4-11/16 Inches Square x 2-1/8 Inches Deep, 1/2 Inch and 3/4 Inch Eccentric Knockouts, Pre-Galvanized Steel, Welded Construction, Suitable for use without a Bonding Jumper in Circuits Above or Below 250 Volts, For use with Conduit, custom package
