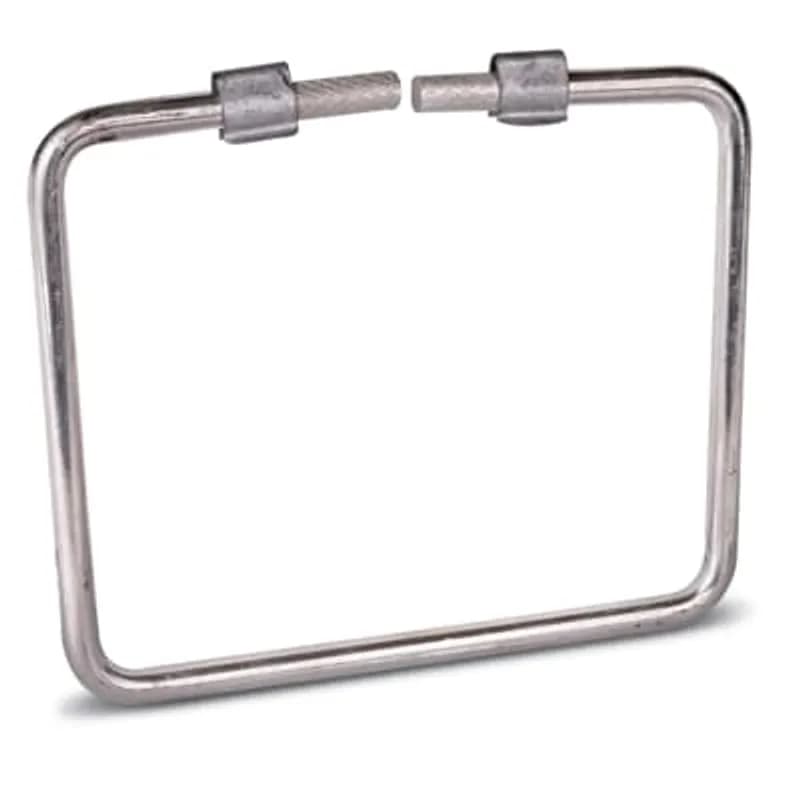

ABB - Installation Products 7030C - Compression Stirrup Bail- 4 1/2 x 3 3/4 Stirrup 2 Sol. Copper, Tin Plated, With Clips
ABB - Installation Products

7030C

UPC: 783786037926

Documents & Media
Manufacturer Product Website

Contact for Pricing

Minimum Qty: 100

Multiplier: 100

*Contact for lower quantities*

Overview

The ABB 7030C Compression Stirrup Bail is a specialized component designed for secure electrical connections. Manufactured by ABB Installation Products, this stirrup bail features a robust construction with dimensions of 4 1/2 x 3 3/4 inches. It is specifically engineered for use with two-hole copper conductors, ensuring a reliable and efficient electrical pathway. The tin plating provides enhanced conductivity and corrosion resistance, crucial for maintaining connection integrity over time. This stirrup bail includes integrated clips, simplifying the installation process and ensuring a firm grip on the conductor. Its design facilitates secure compression connections, vital for preventing electrical faults and ensuring operational safety in various industrial settings. The UNSPSC code 39121449 categorizes this product within electrical connectors and fittings. The ABB 7030C is an essential component for electrical infrastructure requiring dependable and durable connections. Its specific dimensions and material composition make it suitable for applications where conductor size and connection security are paramount. This product is part of ABB's comprehensive range of installation products, known for their quality and performance in electrical systems.
  • ABB 7030C Compression Stirrup Bail
  • Dimensions: 4 1/2 x 3 3/4 inches
  • Designed for 2-hole copper conductors
  • Tin plated for enhanced conductivity and corrosion resistance
  • Includes integrated clips for secure installation

Specifications

Conductor Range
2/0 SOL
Connection
Compression
Material
Copper, Tin Plated
Size
4 1/2 x 3 3/4 Stirrup
Type
Compression Stirrup Bail
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.3800 L
Package Weight (Metric)
0.1720 kg
