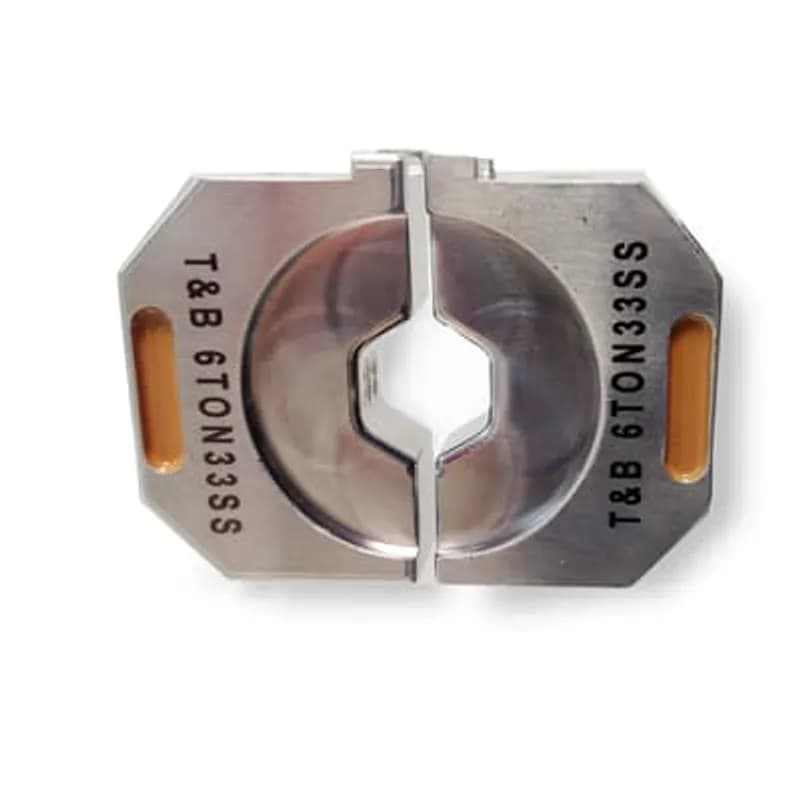

ABB - Installation Products 6TON33SS - Stainless Steel Hex Die for 6-Ton TBM6PCR-LI, TBM62PCR-LI, TBM62CR-LI and TBM6UNICR-LI Tools for #2 CU, Die Color Brown, Die Code 33
More images
ABB - Installation Products

6TON33SS

UPC: 075114122238

Documents & Media
Manufacturer Product Website

Contact for Pricing

Overview

The ABB 6TON33SS Stainless Steel Hex Die is a precision-engineered tool designed for use with 6-ton TBM6PCR-LI, TBM62PCR-LI, TBM62CR-LI, and TBM6UNICR-LI crimping tools. This die is specifically sized for #2 CU (copper) wire applications, ensuring accurate and consistent crimps in electrical installations. Constructed from high-grade stainless steel, the die offers superior corrosion resistance and long-term durability, making it ideal for industrial and commercial environments where reliability is critical. The stainless steel construction provides robust performance and longevity in demanding conditions. Key features include a brown die color for easy identification and a die code of 33, which corresponds to the #2 CU wire size. The hex design ensures secure seating in the crimping tool, reducing the risk of slippage during operation. This die is part of ABB's Installation Products line, known for meeting stringent industry standards for electrical connections. The specific die code 33 is directly associated with the #2 CU wire size, ensuring precise application. Common applications include telecommunications, power distribution, and industrial machinery wiring. The die's compatibility with ABB's 6-ton crimping tools ensures optimal performance and compatibility with existing equipment. The TBM6PCR-LI, TBM62PCR-LI, TBM62CR-LI, and TBM6UNICR-LI are all 6-ton tools that utilize this specific die. For precise crimping results, always verify tool and die compatibility before use. The brown color serves as a visual indicator for the #2 CU wire size.
  • Material: Stainless steel for corrosion resistance and durability
  • Size: #2 CU wire compatibility
  • Color: Brown for easy identification
  • Die Code: 33 for precise crimping
  • Compatible with ABB TBM6PCR-LI, TBM62PCR-LI, TBM62CR-LI, and TBM6UNICR-LI tools

Specifications

Capacity
6 ton
Color
Brown
Material
Stainless Steel
Type
Die
Package Dimensions (L x W x H)
1.88 IN x 1.88 IN x 1.6 IN
Package Dimensions (L x W x H)
4.7752 cm x 4.7752 cm x 4.064 cm
Package Weight (Imperial)
0.2400 L
Package Weight (Metric)
0.1090 kg
