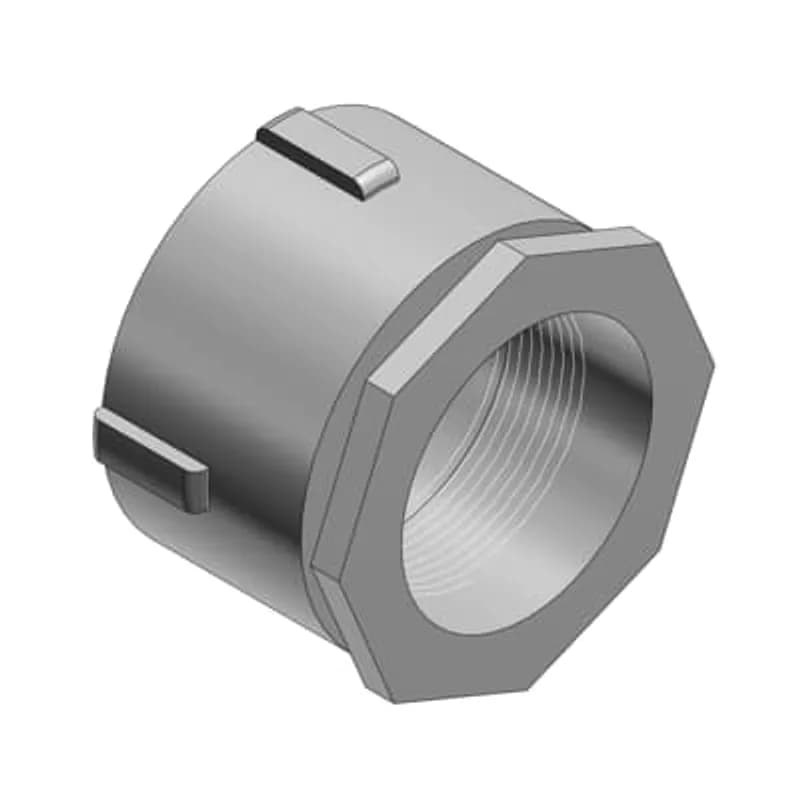

ABB - Installation Products 682AL - 3 Inch Erickson Coupling, Aluminum, for Use with Rigid/IMC Conduit

ABB Installation Products 682AL 3 Inch Erickson Coupling, Aluminum, for Use with Rigid/IMC Conduit

UPC: 786210801599


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 5

Multiplier: 5

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 682AL is a 3-inch Erickson Coupling from the 675AL Series, engineered for the secure joining and bonding of threaded rigid metal conduit (RMC) and intermediate metal conduit (IMC). This coupling is constructed from copper-free aluminum, offering excellent corrosion resistance and a degreased finish. Its design allows for conduit coupling without the need to rotate either conduit length, making it ideal for installations in confined spaces or where conduit rotation is impractical. The free-fitting threads ensure straightforward assembly. The Erickson coupling provides a rigid, in-line connection that remains secure even under vibration, and it is suitable for concrete-tight applications. It is capable of carrying ground fault currents up to 20,000 amps RMS for 2" and above sizes (duration of fault current three cycles), as tested on the 674 series. 18, NEMA FB1, NFPA 70-1999 (ANSI), Federal Specification A-A-50553, and Federal Standard H-28 (Threads). It is also rated raintight. This aluminum coupling is designed for use with all straight pipe threads (NPS) and covers a conduit range from ½" through 6". SKU: 682AL. UNSPSC Code: 39131707.
  • 3-inch Erickson Coupling for Rigid/IMC conduit
  • Constructed from copper-free aluminum for corrosion resistance
  • Allows conduit coupling without rotating conduit lengths
  • Provides rigid, in-line connection resistant to vibration
  • Concrete-tight and raintight rated, suitable for demanding environments

Specifications

Application
To Couple and Effectively Bond Threaded Ends of Rigid Metal Conduit/Intermediate Conduit Where Neither Length of Conduit Can Be Roated
Material Quality
Aluminum
Standard
UL E23018, CSA
Trade Size
3 in
Type
Erickson Couplings
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
1.1000 L
Package Weight (Metric)
0.4990 kg
