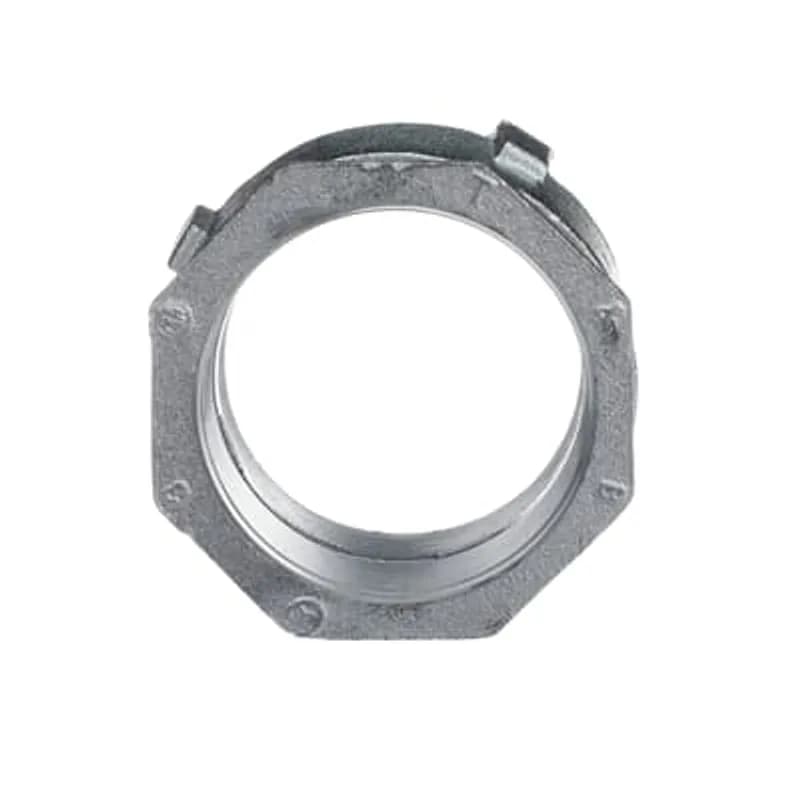

ABB - Installation Products 682 - 3 Inch Erickson Coupling, Malleable Iron with Steel and Malleable Iron Ring for Use with Rigid/IMC Conduit
More images

ABB Installation Products 682 3 Inch Erickson Coupling, Malleable Iron with Steel and Malleable Iron Ring for Use with…

UPC: 786210006826


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 5

Multiplier: 5

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 3-inch Erickson Coupling (SKU: 682) from the 674 Series is engineered for secure and reliable connections in rigid metal conduit (RMC) and intermediate metal conduit (IMC) installations. This coupling is specifically designed for applications where neither length of conduit can be rotated, facilitating easier installation and maintenance. Constructed from durable malleable iron for the bushing and case, and featuring a robust steel and malleable iron ring, this coupling offers exceptional mechanical strength and resistance to loosening under vibration. Its design ensures a rigid, in-line connection that maintains high-quality grounding and is suitable for concrete-tight applications. The 674 Series Erickson Coupling is capable of carrying significant ground fault currents, up to 20,000 amps RMS for 2" and above sizes (duration of fault current three cycles), making it suitable for demanding industrial environments. The free-fitting threads ensure straightforward assembly, and the coupling allows for conduit runs to be completed or broken without dismantling the entire system. 18, NEMA FB1, NFPA 70-1999 (ANSI), Federal Specification A-A-50553, and Federal Standard H-28 (Threads), and is rated raintight. The malleable iron construction provides superior impact resistance, while the steel ring enhances durability in high-stress scenarios. Ideal for power distribution, manufacturing plants, data centers, and large-scale construction projects requiring dependable conduit integrity.
  • Couples and bonds threaded ends of rigid metal conduit/intermediate metal conduit where neither conduit can be rotated.
  • Constructed from malleable iron (bushing & case) with a steel & malleable iron ring for durability.
  • Provides rigid in-line coupling with high-quality grounding; will not loosen under vibration.
  • Suitable for concrete-tight applications and capable of carrying high ground fault currents (up to 20,000 amps RMS for 2" and above).
  • Suitable for wet or dry locations, meeting NEC and OSHA standards

Specifications

Application
To Couple and Effectively Bond Threaded Ends of Rigid Metal Conduit/Intermediate Conduit Where Neither Length of Conduit Can Be Roated
Length
2-29/32 in
Material Quality
Malleable Iron
Outside Diameter
4-7/16 in
Special Features
Free Fitting Threads Ensure Easy Assembly
Standard
UL E23018, CSA
Trade Size
3 in
Type
Conduit Coupling
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
3.6200 L
Package Weight (Metric)
1.6420 kg
3 Inch, Set Screw Coupling, Malleable Iron-Zinc Plated, Concrete Tight When Taped, for Use with Rigid Conduit

HK 108

3 Inch, Set Screw Coupling, Malleable Iron-Zinc Plated, Concrete Tight When Taped, for Use with Rigid Conduit
2-1/2 Inch Erickson Coupling, Aluminum, for Use with Rigid/IMC Conduit

681AL

2-1/2 Inch Erickson Coupling, Aluminum, for Use with Rigid/IMC Conduit
4 Inch Erickson Coupling, Malleable Iron with Steel and Malleable Iron Ring for Use with Rigid/IMC Conduit

684

4 Inch Erickson Coupling, Malleable Iron with Steel and Malleable Iron Ring for Use with Rigid/IMC Conduit
5 Inch Erickson Coupling, Malleable Iron with Steel and Malleable Iron Ring for Use with Rigid/IMC Conduit

686

5 Inch Erickson Coupling, Malleable Iron with Steel and Malleable Iron Ring for Use with Rigid/IMC Conduit
6 Inch Erickson Coupling, Malleable Iron with Steel and Malleable Iron Ring for Use with Rigid/IMC Conduit

687

6 Inch Erickson Coupling, Malleable Iron with Steel and Malleable Iron Ring for Use with Rigid/IMC Conduit
3-1/2 Inch Erickson Coupling, Aluminum, for Use with Rigid/IMC Conduit

683AL

3-1/2 Inch Erickson Coupling, Aluminum, for Use with Rigid/IMC Conduit
6 Inch Erickson Coupling, Aluminum, for Use with Rigid/IMC Conduit

687AL

6 Inch Erickson Coupling, Aluminum, for Use with Rigid/IMC Conduit
2-1/2 Inch Connector, Malleable Iron with Nylon Insulator for Use with Threadless Rigid/IMC Conduit

8723-TB

2-1/2 Inch Connector, Malleable Iron with Nylon Insulator for Use with Threadless Rigid/IMC Conduit

Frequently Asked Questions

What type of conduit is this Erickson coupling designed for?

This Erickson coupling is designed for rigid metal conduit (RMC) and intermediate metal conduit (IMC).

What are the primary materials of construction for this coupling?

The bushing and case are made of malleable iron, and the ring is constructed from steel and malleable iron.

What is the ground fault current carrying capacity of this coupling?

For sizes 2" and above, this coupling can carry ground fault currents up to 20,000 amps RMS for a duration of three cycles.

Is this coupling suitable for outdoor or wet environments?

Yes, this coupling is rated raintight, making it suitable for outdoor and wet environments.

What is the main advantage of using an Erickson coupling?

An Erickson coupling allows a conduit run to be completed or broken when neither conduit can be turned, and the connection will not loosen under vibration.
