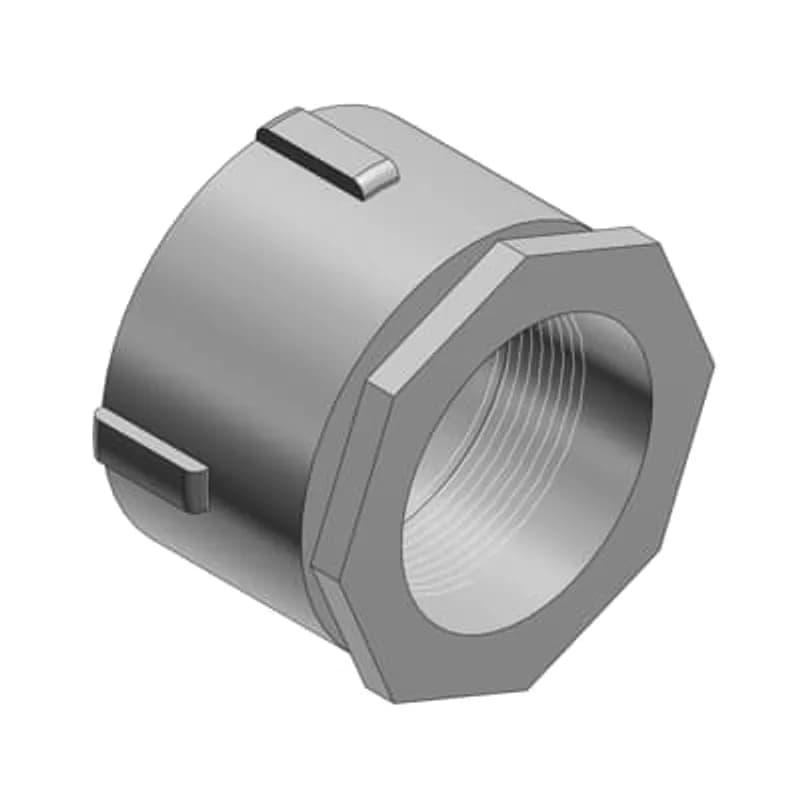

ABB - Installation Products 679 - 1-1/2 Inch Erickson Coupling, Malleable Iron with Steel and Malleable Iron Ring for Use with Rigid/IMC Conduit
ABB - Installation Products

679

UPC: 786210006796

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 5

Multiplier: 5

*Contact for lower quantities*

Overview

The ABB Erickson Coupling, SKU 679, is a 1-1/2 inch malleable iron coupling designed for secure, rigid connections in electrical conduit systems using rigid or intermediate metal conduit (IMC). Engineered to couple threaded conduit ends where neither conduit length can be rotated, this coupling enables conduit runs to be completed or broken without dismantling the entire system. Its malleable iron construction with a steel and malleable iron ring delivers high mechanical strength and corrosion resistance, ensuring long-term reliability in demanding industrial and commercial environments. Key features include free-fitting threads for easy assembly, rigid in-line coupling that resists loosening under vibration, and suitability for concrete-tight applications. The coupling is rated to carry ground fault currents up to 10,000 amps RMS (for sizes ½" through 1½"), providing robust electrical continuity and grounding performance. The electro zinc-plated and chromate-coated finish enhances durability and corrosion resistance, meeting stringent industry standards. Ideal for power and control circuit installations, the 1-1/2 inch size is a common specification in many electrical systems. Its design allows for efficient installation and maintenance, reducing downtime in critical infrastructure. Compatible with rigid metal conduit and IMC, this coupling is a reliable choice for applications requiring durable, vibration-resistant conduit connections in harsh environments.
  • 1-1/2 inch size for rigid/IMC conduit systems
  • Malleable iron construction with steel and malleable iron ring
  • Free-fitting threads for easy assembly without conduit rotation
  • Rated for ground fault currents up to 10,000 amps RMS
  • Suitable for concrete-tight applications and vibration-prone environments

Specifications

Application
To Couple and Effectively Bond Threaded Ends of Rigid Metal Conduit/Intermediate Conduit Where Neither Length of Conduit Can Be Roated
Length
1-31/32 in
Material
Malleable Iron with Steel and Malleable Iron Ring
Material Quality
Malleable Iron
Outside Diameter
2-5/8 in
Size
1-1/2 Inch
Special Features
Free Fitting Threads Ensure Easy Assembly
Standard
UL E23018, CSA
Trade Size
1-1/2 in
Type
Conduit Coupling
Package Dimensions (L x W x H)
4 IN x 5 IN x 6 IN
Package Dimensions (L x W x H)
10.16 cm x 12.7 cm x 15.24 cm
Package Weight (Imperial)
0.9500 L
Package Weight (Metric)
0.4310 kg
