Contact for Pricing

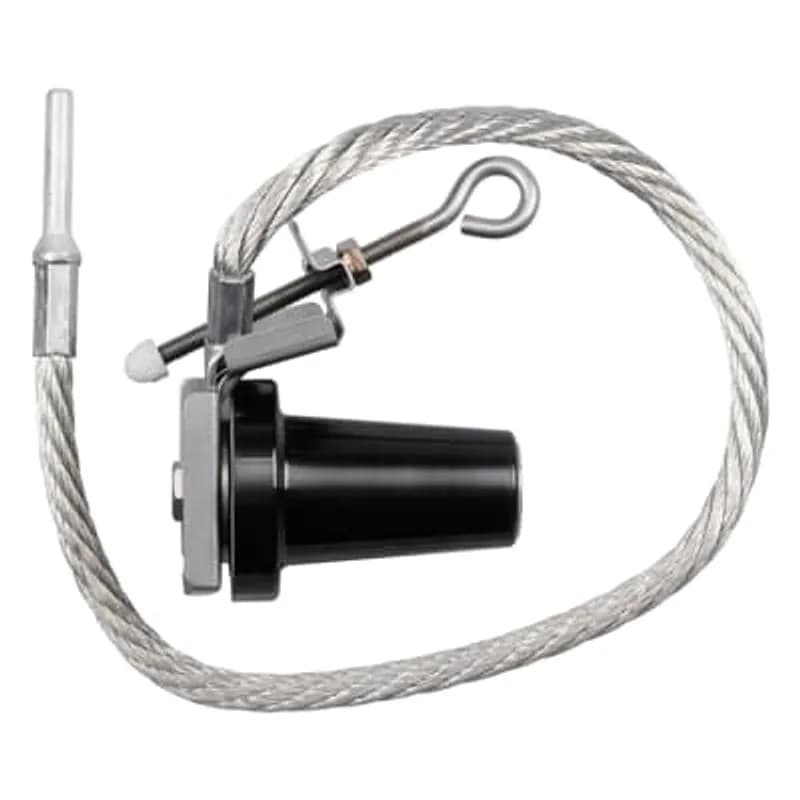

Overview
- 15/25kV, 600 Amp continuous rating with 25kA symmetrical momentary rating
- 2.29 ft (27.48 in) 1/0 AWG grounding cable for flexible connections
- Stainless steel mounting bracket for durable, corrosion-resistant installation
- Hot stick operable for safe, remote installation and removal
- Compatible with Elastimold® K655LR/K656LR deadbreak elbows for direct grounding
Specifications
Application | 15/25 kV, 600 Amps |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Grounding Plug |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 3.3900 L |
Package Weight (Metric) | 1.5380 kg |
K650RTW
15/25kV 600 Series Deadbreak Reducing Tap Well. Length 5.37 inch. Width 3 inch not counting bracket. 600/200 Amps
K1501J3U-8
200 Amp, 15/25kV, Deadbreak Elbow, 3 Point Junction. Bails are required but not included, order separately. Center to Center spacing equals 4 inches.
20MA-N
Corrugated Contact Welded Adapter Assembly, Size N - Insulation Diameter Range 1.515 to 1.780 inch. includes Silicone Lubricant, (2) Hose Clamps, Molded Housing, Contact Assembly, Wooden Plug and Instruction Sheet.Frequently Asked Questions
What is the ordering number for the 650GP grounding plug?
To order the 15/25kV, 600A grounding plug, specify the ordering number 650GP.
What items are included in the 650GP kit?
Each kit contains one 650GP Grounding Plug, one tube of lubricant 82-08, and installation instructions IS-0247.
What material is the mounting bracket made from?
The mounting bracket for the 650GP Grounding Plug is made from stainless steel.
What is the momentary current rating for the 650GP?
The 650GP has a 25kA Sym – 10 Cycles Momentary rating for both 15kV and 28kV voltage classes.
What are the continuous current ratings for the 650GP?
The 650GP has a 600 Amp continuous rating for both 15kV and 28kV voltage classes.
What industry standard does the 650GP meet?
The 650GP Grounding Plug meets ANSI/IEEE Standard 386, Latest Revision.
What type of grounding cable is included with the 650GP?
The 650GP includes a 2.29 ft. (27.48 in) 1/0 AWG grounding cable.
How is the 650GP Grounding Plug installed?
The 650GP Grounding Plug is inserted into a parking stand with an insulated hot stick and then secured in place.
What deadbreak elbows are compatible with the 650GP?
Mating Elastimold® K655LR/K656LR deadbreak elbows can be placed on the 650GP Grounding Bushing.
What is the primary use of the 650GP Grounding Plug?
The 650GP Grounding Plug is used to ground circuits by inserting it into a parking stand, allowing mating deadbreak elbows to be placed on it.
How to Install the 650GP/750GP Deadbreak Grounding Plug
This guide provides instructions for safely installing the 650GP and 750GP Deadbreak Grounding Plug, including connecting it to system ground and placing a de-energized elbow connector onto it.
Estimated time: 15m
Tools needed:
Hotstick
Supplies needed:
Lubricant, Mounting hardware
- Connect to System Ground and Lubricate
Connect the flexible lead of the grounding plug to system ground, ensuring enough slack to operate with a hotstick. Clean the interface of the grounding plug and lubricate this surface using only the supplied lubricant or ELASTIMOLD approved lubricants. Do not substitute other lubricants, as they may be harmful to the product and its mating products. Always replace the protective cap when the grounding plug is not in use.
- Secure in Parking Stand
Attach a hotstick to the eye of the grounding plug carriage assembly. Slide the carriage assembly into the parking stand.
- Ground De-energized Elbow Connector
Follow the applicable instructions for the (K)655LR /755LR to determine that the elbow connector is de-energized before removing it from the apparatus bushing. Remove the de-energized elbow connector from the apparatus bushing and place it onto the grounding plug. DANGER: DO NOT REMOVE THE ELBOW CONNECTOR IF IT IS ENERGIZED, as this will result in serious or fatal injury.
