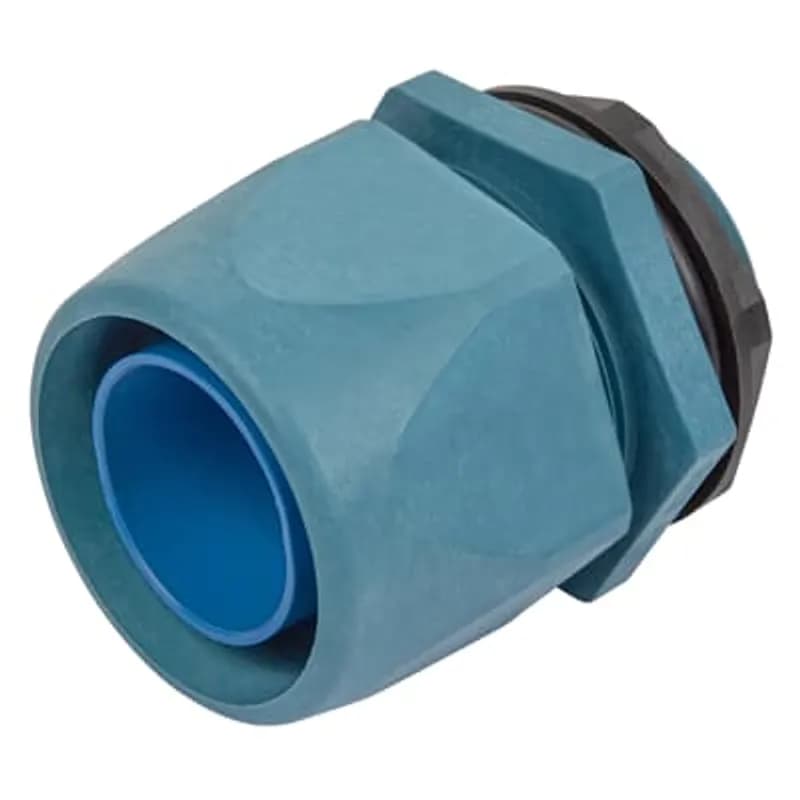

6306NM

These fittings meet UL 514B for liquid tight fittings and conform to RoHS European Directives.

The fittings have UL Listed Type 4, 4X, 12 ratings to UL 50E requirements and NEMA 250 Type 4, 4X, 12 ratings.

Yes, they are intended for installations in hazardous (classified) locations, including Class I Div. 2, Class II Div. 1&2, and Class III Div. 1&2.

The body and gland are thermoplastic, glass filled, blue. The locknut is thermoplastic, glass filled, black, and the O-ring gasket is Neoprene.

Yes, O-ring gaskets must be used to achieve the specified ingress ratings.

The fittings have IEC ingress protection ratings of IP66, IP67, and IP69 per IEC 60529 requirements.

These fittings are used to connect liquid-tight flexible non-metallic conduit Type A to boxes or enclosures.

These fittings are for use in electrical circuits up to 1000V.

These fittings are designed to provide a liquid-tight and dust-tight connection between fittings, conduits, and enclosure walls.

These fittings are ideal for highly corrosive environments and liquid-tight applications, protecting against water, oils, cutting fluids, and mild acids.
