UPC: 786210104997
Documents & Media
Contact for Pricing
Minimum Qty: 10
Multiplier: 10
*Contact for lower quantities*
Overview

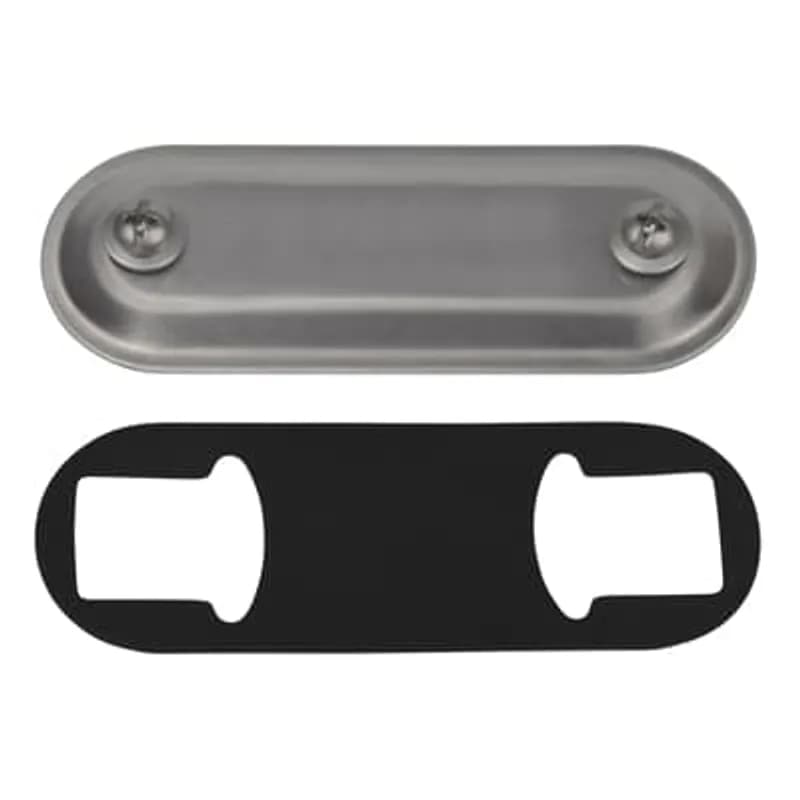

- 1-1/2 Inch size for Form 7 conduit bodies
- Constructed from durable stamped aluminum
- Includes a high-quality neoprene gasket for sealing
- Designed for reliable protection of conduit connections
- Direct replacement part from ABB Installation Products
Specifications
Application | Provide access to conductors for maintenance and future changes |
Color | Metallic |
Material | Stamped Aluminum |
Size | 1-1/2 |
Type | Enclosure Cover |
Package Dimensions (L x W x H) | 6 IN x 4.5 IN x 4 IN |
Package Dimensions (L x W x H) | 15.24 cm x 11.43 cm x 10.16 cm |
Package Weight (Imperial) | 0.3300 L |
Package Weight (Metric) | 0.1500 kg |
470SA
1-1/4 Inch Replacement Cover for Conduit Body, Form 7, Stamped Aluminum, Includes Neoprene Gasket
TC150
Universal raintight hubs are rated for outdoor enclosures and come in a variety of sizes for every ABB load center or panel. The TC150 has a diameter of 1.50" and has a base size of 3".
FBO23HD
Heavy-duty electrical box support for 2-1/2" and 3-1/2" wood or metal studs. It fits 4" or 4-11/16" electrical boxes and is made of pre-galvanized steel. The support is silver in color and has a size of 2-1/2" x 3-1/2".
Frequently Asked Questions
What types of covers are available for these conduit bodies?
Both stamped aluminum and sand cast aluminum covers are available for various hub sizes, ranging from 1/2 in to 4 in.
Are these covers interchangeable with other brands?
Yes, the covers are interchangeable with main competitors’ covers.
What is included with the conduit body covers?
Both cast and stamped covers come standard with gaskets, stainless steel screws, and bonded sealing stainless steel washers.
What materials are used for the cover clips and screws?
Cover clips are aluminum, while stainless steel screws and bonded sealing stainless steel washers are used for corrosion protection. Neoprene is bonded to washers to prevent galvanic corrosion.
How well do these conduit bodies resist corrosion?
They offer the highest degree of corrosion protection, remaining free of red rust and surface pitting after 1,200 hours in a 5% salt fog test.
What material are these conduit bodies made from?
The conduit bodies and cast covers are made from CorroStall™ sand cast aluminum alloy, known for superior corrosion resistance.
What materials are used for the cover clips and screws?
Cover clips are aluminum, while stainless steel screws and bonded sealing stainless steel washers are used for corrosion protection. Neoprene is bonded to washers to prevent galvanic corrosion.
What material are these conduit bodies made from?
The conduit bodies and cast covers are made from CorroStall™ sand cast aluminum alloy, known for superior corrosion resistance.
How well do these conduit bodies resist corrosion?
They offer the highest degree of corrosion protection, remaining free of red rust and surface pitting after 1,200 hours in a 5% salt fog test.
What is included with the conduit body covers?
Both cast and stamped covers come standard with gaskets, stainless steel screws, and bonded sealing stainless steel washers.
