ABB - Installation Products 54921BEB - Copper One-Hole Lug, Long Barrel - Bottom Stacking, Blind End, Max 35kV, 600 kcmil Wire, 1/2 Inch Bolt Size, Tin Plated, Die Code 94, Die Color Code Green
ABB - Installation Products

54921BEB

UPC: 786209989093

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Overview

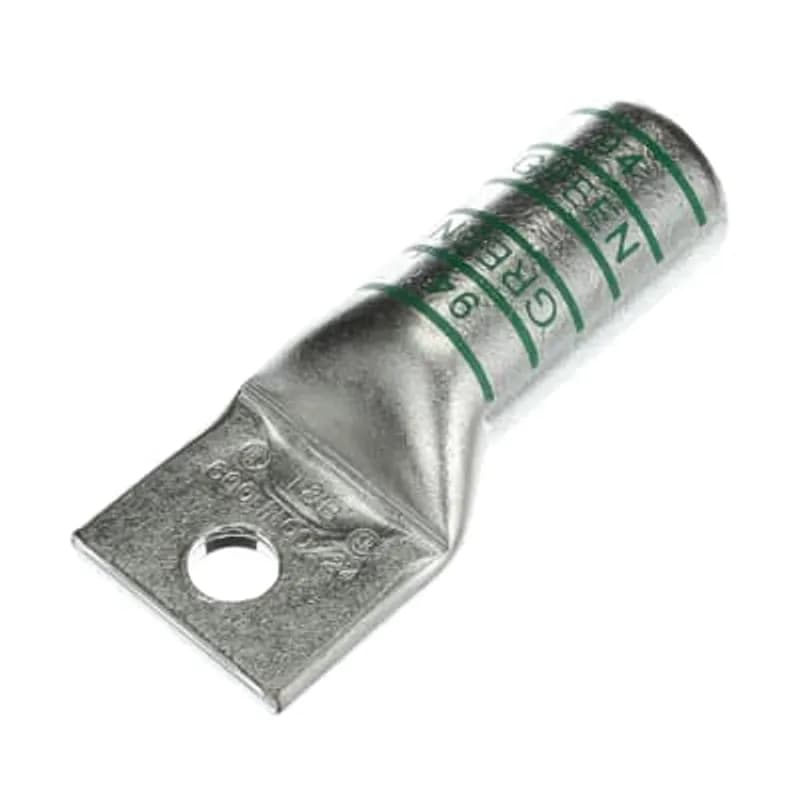

The ABB 54921BEB is a tin-plated copper one-hole lug designed for robust electrical connections in high-voltage industrial applications. This long barrel lug features a blind end and bottom stacking capability, ensuring secure and reliable terminations. It is rated for a maximum of 35kV, making it suitable for demanding power distribution systems, substations, and heavy industrial machinery. The lug accommodates 600 kcmil wire and utilizes a 1/2-inch bolt size for a strong mechanical connection. The tin plating provides excellent corrosion resistance, extending the lifespan of the connection in challenging environments. Identified by Die Code 94 and a Green Color Code, this ABB Installation Products lug meets stringent industry standards for electrical connectors. Its construction prioritizes efficient current transfer and long-term performance in critical infrastructure.
  • Copper construction for superior conductivity
  • Long barrel design for secure crimp
  • Rated for 35kV for high-voltage applications
  • Accommodates 600 kcmil wire size
  • Tin-plated for enhanced corrosion resistance

Specifications

Cable Size
600 kcmil
Color
Green
Connection Type
One-Hole Lug
Connection Type
Bottom Stacking, Blind End
Insulation
None
Material
Copper
Material
Copper, Tin Plated
Mounting Type
Bottom Stacking, Blind End
Number Of Holes
1
Series
54921BEB
Size
600 kcmil
Size
600 kcmil, 1/2 Inch Bolt Size
Stud Size
1/2 in
Type
Long Barrel - Bottom Stacking
Voltage Rating
35 kV
Package Dimensions (L x W x H)
5 IN x 4.5 IN x 3 IN
Package Dimensions (L x W x H)
12.7 cm x 11.43 cm x 7.62 cm
Package Weight (Imperial)
0.740 L
Package Weight (Metric)
0.336 kg

Similar Products

54921BEBS

Type: Long Barrel - Bell Shaped End

Standard: UL E9809 / UL E9809

54921BE

Type: Long Barrel

Standard: UL E9809 / UL E9809

Mounting Type: Blind End

54921BE06

Stud Size: 3/8 in

Type: Long Barrel

Size: 600 kcmil, 3/8 Inch Bolt Size

54921BENT

Type: Long Barrel - Narrow Tongue

Color: Tin Plated

Mounting Type: Blind End

54921BENTPH

Type: Long Barrel - Narrow Tongue

54921BEPH

Type: Long Barrel

Material: Tin-Plated Copper

Connection Type: Bolt

You May Also Be Interested In

Copper One-Hole Lug, Long Barrel - Bottom Stacking, Blind End, Max 35kV, Wire Size750 kcmil, 1/2 Inch Bolt Size, Tin Plated, Die Code 106, Die Color Code Black

54922BEB

Copper One-Hole Lug, Long Barrel - Bottom Stacking, Blind End, Max 35kV, Wire Size 400 kcmil, 1/2 Inch Bolt Size, Tin Plated, Die Code 76, Die Color Code Blue

54916BEB

Copper Two-Hole Lug, Long Barrel - Bottom Stacking, Max 35kV, Wire Size 600 kcmil, 1/2 Inch Bolt Size, 1-3/4 Inch Hole Spacing, Tin Plated, Die Code 94, Die Color Code Green

54878BEB

Copper One-Hole Lug, Long Barrel - Bottom Stacking, Blind End, Max 35kV, Wire Size 350 kcmil, 1/2 Inch Bolt Size, Tin Plated, Die Code 71, Die Color Code Red

54915BEB

Copper One-Hole Lug, 90 Degree Bend Long Barrel - Bottom Stacking, Blind End, Max 35kV, 600 kcmil Wire, 1/2 Inch Bolt Size, Tin Plated, Die Code 94, Die Color Code Green

54921BEUBB

Frequently Asked Questions

What is the wire size compatibility for 54921BEB?

The product is compatible with wire sizes of 500 weld and 600 MCM.

What material is used in the 54921BEB?

The 54921BEB is made from high conductivity copper.
