ABB - Installation Products 54919BE - Copper One-Hole Lug, Long Barrel, Blind End, Max 35kV, Wire Size 500 kcmil, 5/8 Inch Bolt Size, Tin Plated, Die code 87, Die Color Code Brown
ABB - Installation Products

54919BE

UPC: 786210194790

Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 2

Multiplier: 2

*Contact for lower quantities*

Overview

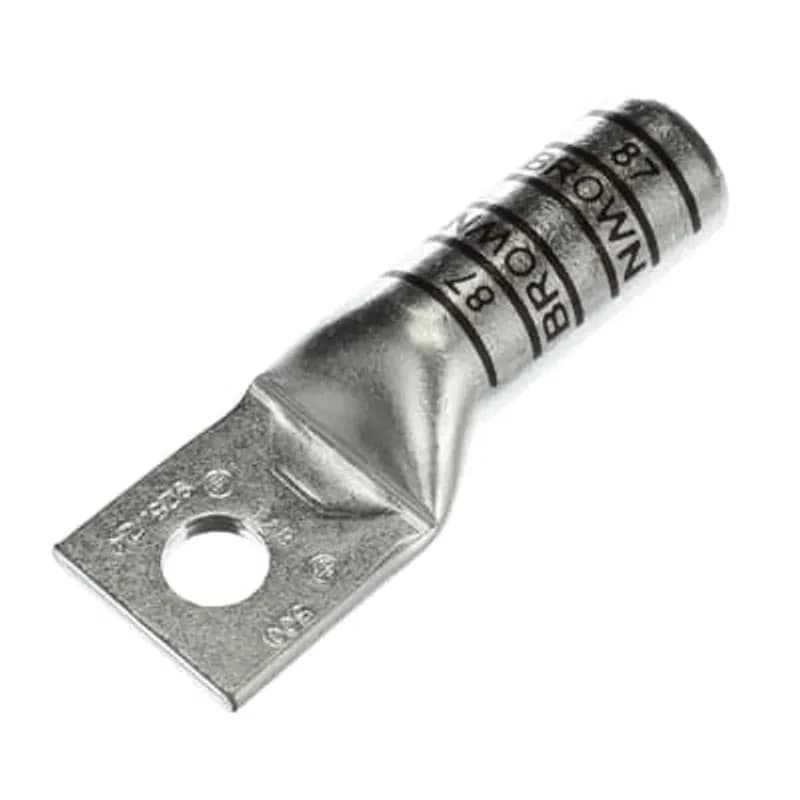

The ABB 54919BE Copper One-Hole Lug (SKU: 54919BE) is a high-conductivity compression connector engineered for secure, long-term electrical connections in high-voltage applications. Manufactured by ABB Installation Products, this lug is designed for stranded copper conductors up to 500 kcmil and rated for a maximum voltage of 35kV, making it ideal for power distribution, industrial machinery, and electrical infrastructure. The long barrel design maximizes crimp points, ensuring superior wire pull-out strength and electrical performance, while the enclosed barrel prevents corrosive materials from entering during operation in harsh environments. The tin-plated copper construction provides excellent corrosion resistance and low contact resistance, maintaining reliable conductivity over time. The lug features a 5/8" bolt size for compatibility with standard hardware and is marked with die code 87 and a brown color code for easy identification and inventory management. UL Listed and CSA Certified to 35kV with a temperature rating of 90°C when crimped using Panduit or specified competitor crimping tools and dies, the 54919BE meets rigorous industry standards for safety and performance. For applications exceeding 2000V, consult the cable manufacturer's voltage stress relief instructions to ensure proper installation and compliance.
  • Rated for 35kV maximum voltage with 90°C temperature rating
  • Designed for stranded copper conductors up to 500 kcmil
  • Long barrel design maximizes crimp points and wire pull-out strength
  • Tin-plated copper construction resists corrosion and ensures low contact resistance
  • 5/8" bolt size for compatibility with standard hardware; die code 87, brown color code

Specifications

Cable Size
500 kcmil
Color
Brown
Connection Type
One-Hole Lug
Insulation
None
Material
Copper
Material
Tin Plated Copper
Number Of Holes
1
Size
500 kcmil
Standard
UL E9809 / UL E9809
Stud Size
5/8 in
Type
Long Barrel
Voltage Rating
35 kV
Package Dimensions (L x W x H)
4 IN x 4 IN x 3 IN
Package Dimensions (L x W x H)
10.16 cm x 10.16 cm x 7.62 cm
Package Weight (Imperial)
0.510 L
Package Weight (Metric)
0.231 kg
