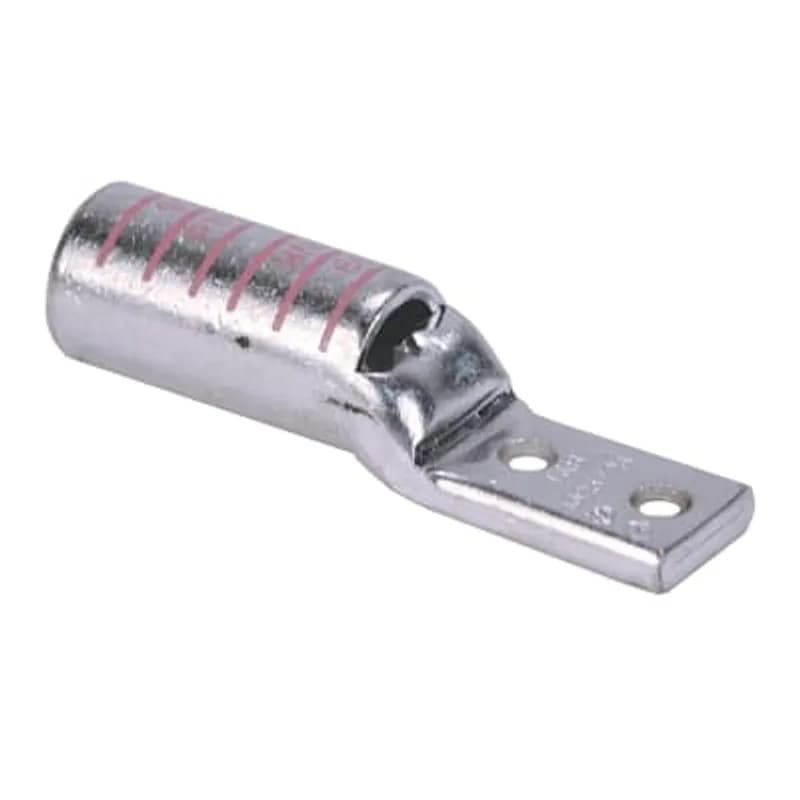

ABB - Installation Products 54879BEPH - Copper Two-Hole Lug, Long Barrel, Peep Hole, Max 35kV, Wire Size 700 kcmil, 1/2 Inch Bolt Size, 1-3/4 Inch Hole Spacing, Tin Plated, Die Code 42, Die Color Code Pink
ABB - Installation Products

54879BEPH

UPC: 786209873675

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Overview

The ABB 54879BEPH Copper Two-Hole Lug (SKU: 54879BEPH) is a precision-engineered electrical connector designed for high-voltage applications up to 35kV. This lug is manufactured by ABB - Installation Products and is ideal for terminating conductors with a wire size of 700 kcmil. It features a long barrel for enhanced wire termination and strain relief, along with a peep hole for visual inspection of wire insertion. The lug is equipped with a 1/2-inch bolt size and a 1-3/4-inch hole spacing, ensuring compatibility with standard industrial mounting hardware and equipment. Constructed from tin-plated copper, it offers excellent corrosion resistance and long-term electrical conductivity, even in challenging environmental conditions. The die code 42, indicated by a pink color code, facilitates quick identification and inventory management. Manufactured in the USA, this lug is suitable for power distribution systems, substations, and industrial machinery where reliable, high-current connections are essential. Its die-cast design ensures consistent performance and durability across various installations. UNSPSC Code: 39121405.
  • Copper two-hole lug with long barrel and peep hole
  • Rated for maximum 35kV applications
  • Accommodates wire size 700 kcmil
  • 1/2 Inch bolt size and 1-3/4 Inch hole spacing
  • Tin-plated copper construction for corrosion resistance
  • Die code: Pink (42) for easy identification

Specifications

Cable Size
700 kcmil
Color
Pink
Connection Type
Bolt
Insulation
None
Material
Copper
Mounting Type
Two-Hole Lug
Number Of Holes
2
Series
54879BE
Size
700 kcmil
Stud Size
1/2 in
Type
Long Barrel
Voltage Rating
35 kV
Package Dimensions (L x W x H)
8 IN x 5 IN x 4 IN
Package Dimensions (L x W x H)
20.32 cm x 12.7 cm x 10.16 cm
Package Weight (Imperial)
0.950 L
Package Weight (Metric)
0.431 kg

Similar Products

54879BE

Standard: UL E9809 / UL E9809

54879BE0832

54879BEBS

Type: Long Barrel - Bell Shaped End

54879BENT

Type: Long Barrel - Narrow Tongue

Connection Type: Two-Hole Lug

Mounting Type: Blind End

54879BENT0616PH

Type: Long Barrel - Narrow Tongue

Stud Size: 3/8 in

Connection Type: 3/8 Inch Bolt

54879BENTPH

Type: Long Barrel - Narrow Tongue

Material: Copper, Tin Plated

Size: 700 kcmil, 1/2 Inch Bolt Size, 1-3/4 Inch Hole Spacing

You May Also Be Interested In

Copper Two-Hole Lug, Long Barrel, Peep Hole, Max 35kV, Wire Size 1/0 AWG, 1/4 Inch Bolt Size, 3/4 Inch Hole Spacing, Tin Plated, Die Code 42, Die Color Code Pink

54813BEPH

Copper Two-Hole Lug, Long Barrel, Peep Hole, Max 35kV, Wire Size 1/0 AWG, 5/16 Inch Bolt Size, 7/8 Inch Hole Spacing, Tin Plated, Die Code 42, Die Color Code Pink

54860BEPH

Copper Two-Hole Lug, Long Barrel, Peep Hole, Max 35kV, Wire Size 1/0 AWG, 1/4 Inch Bolt Size, 5/8 Inch Hole Spacing, Tin Plated, Die Code 42, Die Color Code Pink

54859BEPH

Copper Two-Hole Lug, Long Barrel, Peep Hole, Max 35kV, Wire Size 600 kcmil, 1/2 Inch Bolt Size, 1-3/4 Inch Hole Spacing, Tin Plated, Die Code 94, Die Color Code Green

54878BEPH

Copper Two-Hole Lug, Long Barrel, Peep Hole, Max 35kV, Wire Size 750 kcmil, 1/2 Inch Bolt Size, 1-3/4 Inch Hole Spacing, Tin Plated, Die Code 106, Die Color Code Black

54880BEPH

Frequently Asked Questions

What types of conductors are compatible?

The product is compatible with copper cable conductors classified as G, H, I, K, and M.

What materials are used in the connectors?

The connectors are made from high conductivity copper with an electro-tin plate finish unless specified otherwise.

What suffixes indicate special features?

Suffixes 'PH' denotes a peep hole, 'BT' denotes a blank tongue, and 'R' denotes a round tongue.

What is the crimp tool compatibility?

The connectors require specific crimp tools, such as the 6TONXSS or 15500XSS, depending on the die used.

What is the maximum operating voltage?

The connectors can operate at voltages up to 35kV.

Are there safety warnings for installation?

Yes, ensure installation complies with national and local electrical codes to avoid hazards.

What tools are required for crimping?

Different die halves are required for crimping, such as the 6TON-series or 155-series dies.
