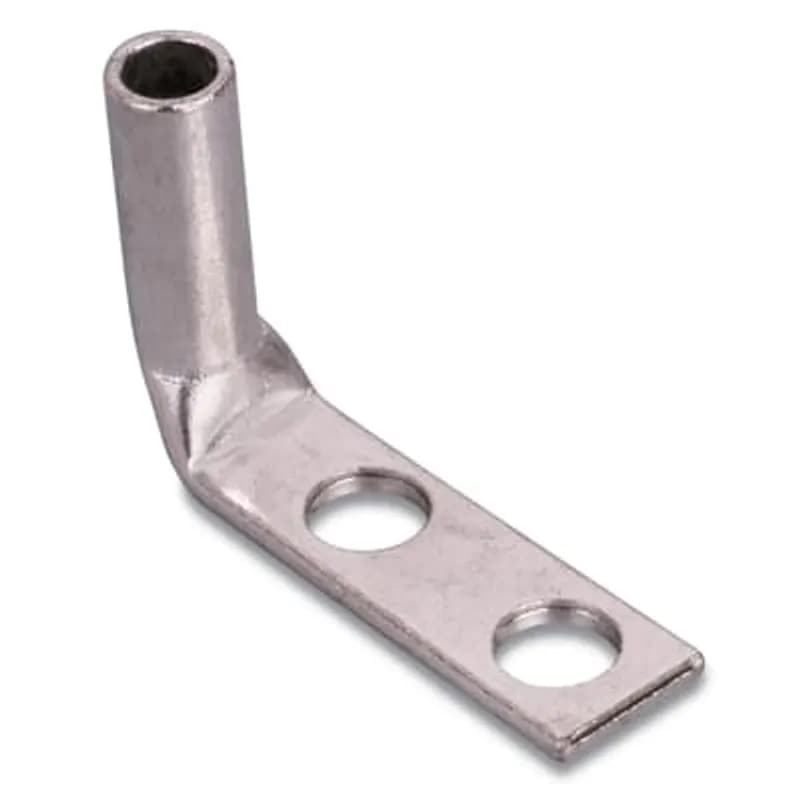

ABB - Installation Products 54862BEUB0616PH - Copper Two-Hole Lug, 90 Degree Bend - Long Barrel, Peep Hole, Max 35kV, Wire Size 2/0 AWG, 3/8 Inch Bolt Size, 1 Inch Hole Spacing, Tin Plated, Black 45
ABB - Installation Products

54862BEUB0616PH

UPC: 786209865168

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Overview

The ABB Copper Two-Hole Lug, SKU 54862BEUB0616PH, is engineered for robust and reliable electrical connections in demanding industrial environments. This long barrel lug features a precise 90-degree bend, facilitating efficient routing and installation in confined spaces. Designed for stranded copper conductors, it accommodates wire sizes up to 2/0 AWG, ensuring compatibility with a wide range of high-capacity applications. The lug is rated for a maximum voltage of 35kV, making it suitable for medium-voltage power distribution systems. Constructed from high-conductivity copper and finished with a durable tin plating, this lug offers superior electrical performance and excellent resistance to corrosion, even in harsh environmental conditions. The enclosed barrel design prevents the ingress of corrosive materials, further enhancing longevity and connection integrity. A convenient peep hole allows for visual confirmation of full conductor insertion, a critical step for ensuring a secure and reliable crimp. This ABB lug meets stringent industry standards, including UL Listing and CSA Certification to 35kV, and is temperature rated to 90°C when used with specified Panduit and competitor crimping tools and dies. It has also been tested by Telcordia to meet NEBS Level 3 and is American Bureau of Shipping approved, underscoring its suitability for critical infrastructure and telecommunications applications. Specifications include a 3/8-inch bolt size for secure mounting and a 1-inch hole spacing, compatible with standard NEMA configurations. The black 45 coating adds an extra layer of durability. Trust ABB Installation Products for high-performance electrical connectors that deliver exceptional quality, safety, and long-term reliability. This lug is an essential component for power transmission, distribution, and industrial electrical infrastructure projects.
  • High-conductivity copper construction for optimal electrical performance.
  • Long barrel design maximizes crimps for superior wire pull-out strength.
  • Enclosed barrel prevents corrosive material ingress for enhanced durability.
  • Tin-plated finish inhibits corrosion and ensures long-term reliability.
  • UL Listed and CSA Certified to 35kV, temperature rated to 90°C.

Specifications

Cable Size
2/0 AWG
Color
Black
Insulation
None
Material
Copper
Number Of Holes
2
Size
2/0 AWG
Stud Size
3/8 in
Type
Long Barrel 90 Degree Bend
Voltage Rating
35 kV
Package Dimensions (L x W x H)
4 IN x 4 IN x 3 IN
Package Dimensions (L x W x H)
10.16 cm x 10.16 cm x 7.62 cm
Package Weight (Imperial)
0.120 L
Package Weight (Metric)
0.054 kg
