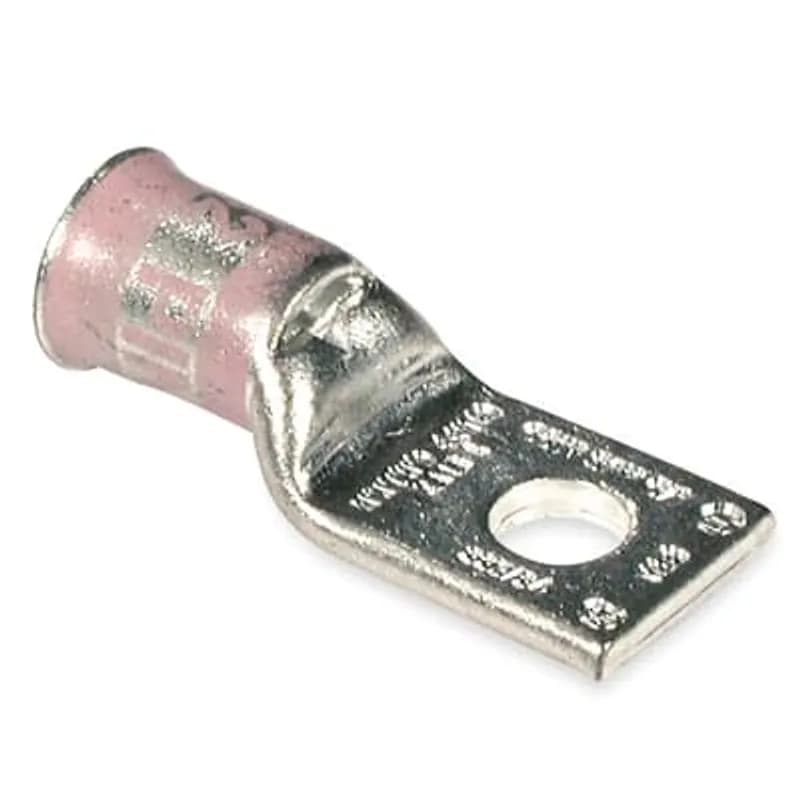

ABB - Installation Products 54155SP - Copper One-Hole Lug, Standard Barrel, Peep Hole, Max 35kV, Wire Size 1/0 AWG, 1/2 Inch Bolt Size, Silver Plated, Die Code 42, Die Color Code Pink
ABB - Installation Products

54155SP

UPC: 786210620602

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 120

Multiplier: 120

*Contact for lower quantities*

Overview

The ABB 54155SP is a high-quality, one-hole copper lug designed for reliable electrical terminations in demanding industrial applications. Manufactured by ABB Installation Products, this lug is constructed from solid copper, ensuring excellent conductivity and durability. Its standard barrel design features a peep hole, allowing for visual confirmation of proper wire insertion during installation, which is crucial for ensuring a secure and safe connection. The lug is rated for a maximum voltage of 35kV, making it suitable for high-voltage power distribution systems, substations, and heavy industrial machinery. It is engineered to accommodate wire sizes of 1/0 AWG and utilizes a 1/2-inch bolt for secure fastening. The silver-plated finish provides enhanced corrosion resistance and further improves electrical contact integrity, especially in environments prone to oxidation. For streamlined inventory management and to prevent misapplication, this lug is marked with Die Code 42, identified by a pink color code. Its compatibility with standard crimping tools simplifies the installation process. The ABB 54155SP offers a robust and long-lasting termination solution where consistent electrical performance is paramount. Originating from the US, this product adheres to stringent manufacturing standards.
  • Constructed from solid copper for maximum conductivity.
  • Silver-plated finish for superior corrosion resistance.
  • Rated for high-voltage applications up to 35kV.
  • Standard barrel with peep hole for visual wire inspection.
  • Designed for 1/0 AWG wire size and 1/2-inch bolt size.
  • Die Code 42 with pink color code for easy identification.

Specifications

Color
Pink
Connection Type
Bolt
Connection Type
Peep Hole
Insulation
None
Material
Copper
Material
Copper, Silver Plated
Material
Copper, Silver-Plated
Number Of Holes
1
Series
54155
Series
54155SP
Size
1/0 AWG
Size
1/0 AWG, 1/2 Inch Bolt
Stud Size
1/2 in
Type
Standard Barrel
Voltage Rating
35 kV
Package Dimensions (L x W x H)
3.25 IN x 2.75 IN x 2.25 IN
Package Dimensions (L x W x H)
8.255 cm x 6.985 cm x 5.715 cm
Package Weight (Imperial)
0.070 L
Package Weight (Metric)
0.032 kg
Mechanical Crimp Tool with 5/8 Inch Nose Die APPLICATIONS: Designed for use with wide range and H-Tap connectors. It has fiberglass handles and comes with "O" and "D" Nose Dies. It has an output of 4.5 tons.

OD581

Mechanical Crimp Tool with 5/8 Inch Nose Die APPLICATIONS: Designed for use with wide range and H-Tap connectors. It has fiberglass handles and comes with "O" and "D" Nose Dies. It has an output of 4.5 tons.
O' Die for OD581 Mechanical Crimp Tool

OJB

O' Die for OD581 Mechanical Crimp Tool
U-Type Compression Die - Pink 1/0 AWG Copper - 2 AWG Aluminum U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.

CD6A

U-Type Compression Die - Pink 1/0 AWG Copper - 2 AWG Aluminum U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.
U-Type Compression Die - Black 2/0 AWG Copper U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.

CD7

U-Type Compression Die - Black 2/0 AWG Copper U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.
Non-Insulated Parallel Splice Connector For Wire Range 6 For Circular Mil Range 20,800-33,100 Length .5 Diameter .365,Metallic

E6-PS-D

Non-Insulated Parallel Splice Connector For Wire Range 6 For Circular Mil Range 20,800-33,100 Length .5 Diameter .365,Metallic
Power Distribution Block (1) 2/0-14 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.

AS-K1-H6

Power Distribution Block (1) 2/0-14 AWG Primary (6) 4-14 AWG Secondary Power Distribution Blocks are made of high strength, high-conductivity aluminum alloy and are mounted in a high-strength glass-filled polyester base. Each block can stand alone or combine with other blocks to form a multi-block set.
PVC Coated Junction Box, 12 Inch X 12 Inch X 6 Inch, 14 Gauge, Gray

A1212SC-G

PVC Coated Junction Box, 12 Inch X 12 Inch X 6 Inch, 14 Gauge, Gray
Molded Junction Box, Length 4 Inch x Width 4 Inch x Depth 2 Inch, Material Polycarbonate, Color Gray

E989NNJ-5-HD

Molded Junction Box, Length 4 Inch x Width 4 Inch x Depth 2 Inch, Material Polycarbonate, Color Gray
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.

1SNK705010R0000

Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.
Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.

1SNK705030R0000

Combine high performance with compact dimensions: - 1000 V AC / DC IEC 600 V UL, - Opt for the best marking visibility thanks to the up-front, flat marker zone, which lets you mark up to eight digits or increase the font size.

Frequently Asked Questions

What is the wire size compatible with 54155SP?

The product is compatible with a wire size of 1/0.

What material is used in 54155SP?

The 54155SP is made of high conductivity copper.

What is the finish of the 54155SP?

The finish of the 54155SP is silver plated.
