Contact for Pricing
Overview

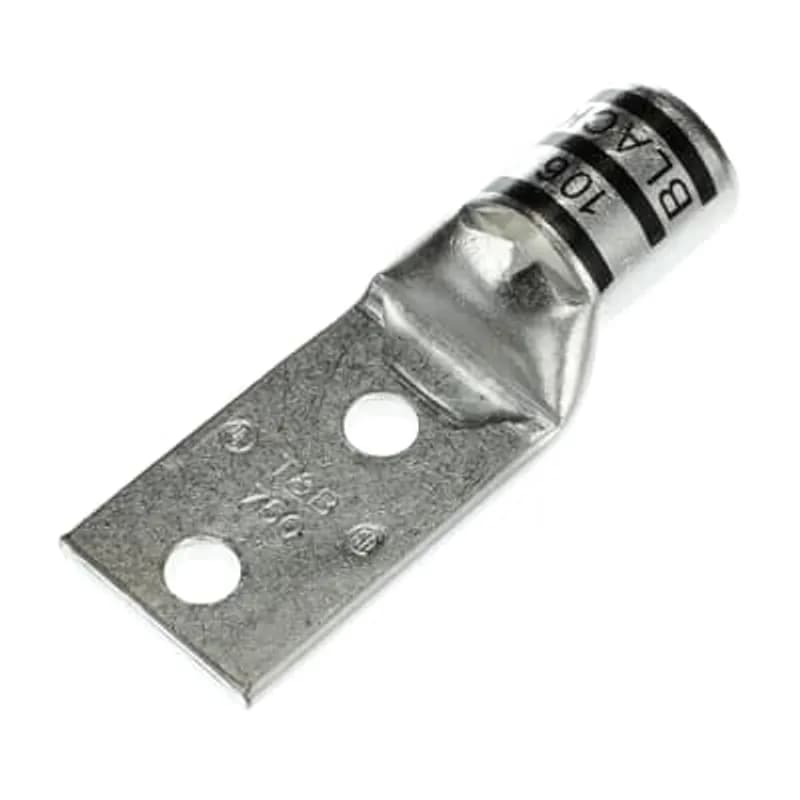

- Tin-plated copper construction for superior conductivity and corrosion resistance
- Rated for high-voltage applications up to 35KV
- Accommodates wire sizes up to 750 kcmil
- Standard barrel with a 3/8-inch bolt size for secure connections
- Includes an inspection hole for visual crimp verification
Specifications
Cable Size | 1 AWG |
Color | Black |
Insulation | None |
Material | Copper |
Number Of Holes | 2 |
Stud Size | #10 IN |
Type | Standard Barrel - Narrow Tongue |
Voltage Rating | 35 kV |
Package Dimensions (L x W x H) | 5 IN x 4.5 IN x 3 IN |
Package Dimensions (L x W x H) | 12.7 cm x 11.43 cm x 7.62 cm |
Package Weight (Imperial) | 0.700 L |
Package Weight (Metric) | 0.318 kg |
Similar Products
You May Also Be Interested In
Frequently Asked Questions
What is the wire size compatibility for this product?
The product is compatible with wire sizes of 1600/24 and 750 MCM.
What material is used in this product?
The product is made of high conductivity copper.
