ABB - Installation Products 53055FL - E-Z-Ground Ground Clamp Copper Compression Connector for Cable Range 1/0 - 2/0 AWG, Bolt Hole 3/8

ABB Installation Products 53055FL E-Z-Ground Ground Clamp Copper Compression Connector for Cable Range 1/0 - 2/0 AWG, Bolt…

UPC: 786210816050


Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 50

Multiplier: 50

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 53055FL E-Z-Ground Ground Clamp is a copper compression connector designed for reliable grounding applications. It accommodates conductor sizes from 1/0 to 2/0 AWG and features a 3/8-inch bolt hole for secure mounting. Constructed from high-strength electrolytic bronze, it provides durable and dependable grounding. The clamp is cULus 467 Listed for grounding and bonding and is suitable for direct burial in earth or concrete. Key features include: * Material: Electrolytic bronze * Size: 1/0 - 2/0 AWG * Connection Type: Ground Clamp Copper Compression Connector * Mounting Type: Bolt Hole 3/8 The ABB 53055FL is ideal for industrial and commercial settings, meeting stringent performance standards for critical grounding systems. With its robust design and high-quality materials, this ground clamp ensures a secure and reliable connection, making it an essential component in a wide range of applications. The 3/8-inch bolt hole allows for easy and secure mounting, while the electrolytic bronze construction provides excellent corrosion resistance and durability. The ABB 53055FL E-Z-Ground Ground Clamp is a reliable and efficient solution for grounding needs, offering a high level of performance and safety in various environments.
  • Electrolytic bronze construction for durability
  • Accommodates conductor sizes from 1/0 to 2/0 AWG
  • 3/8-inch bolt hole for secure mounting
  • cULus 467 Listed for grounding and bonding
  • Suitable for direct burial in earth or concrete

Specifications

Connection Type
Compression
Material
Copper
Material
Durable materials (implied robust construction)
Series
E-Z-Ground
Size
1/0 - 2/0 AWG
Special Features
Captivated "keeper bar" design extends cable range and helps hold cable prior to crimping, facilitating installaion. Made from high-conductivity cast copper
Standard
UL E3060
Type
E-Z-Ground Compression Grounding
Package Dimensions (L x W x H)
6 IN x 5 IN x 4 IN
Package Dimensions (L x W x H)
15.24 cm x 12.7 cm x 10.16 cm
Package Weight (Imperial)
0.780 L
Package Weight (Metric)
0.354 kg
E-Z-Ground Ground Grid Copper Compression Connector, Cable Range 4/0 or 250 kcmil, Ground Rod 1/2 and 5/8 Inch, Direct Burial

GG40250-2030

E-Z-Ground Ground Grid Copper Compression Connector, Cable Range 4/0 or 250 kcmil, Ground Rod 1/2 and 5/8 Inch, Direct Burial
Vertical Ground Bar Kits, 0.625x72.00, Electroplated, Copper

DG72

Vertical Ground Bar Kits, 0.625x72.00, Electroplated, Copper
#6 AWG (16mm ) jumper for armored cable diameter 0.94 (23.9mm) to 1.5 (38.1mm); 24 (609.6mm) length; factory terminated on one end with LCC6 two-hole copper compression lug and the other end with grounding terminal; provided with two each #12-24 and M6 thread-forming screws and a black polypropylene terminal cover.

ACG24KX-500

#6 AWG (16mm ) jumper for armored cable diameter 0.94 (23.9mm) to 1.5 (38.1mm); 24 (609.6mm) length; factory terminated on one end with LCC6 two-hole copper compression lug and the other end with grounding terminal; provided with two each #12-24 and M6 thread-forming screws and a black polypropylene terminal cover.
#12 x 7 Strand-W CD Ground Pgtl Dog-Pt USA Made Green Zinc

PTS40C

#12 x 7 Strand-W CD Ground Pgtl Dog-Pt USA Made Green Zinc

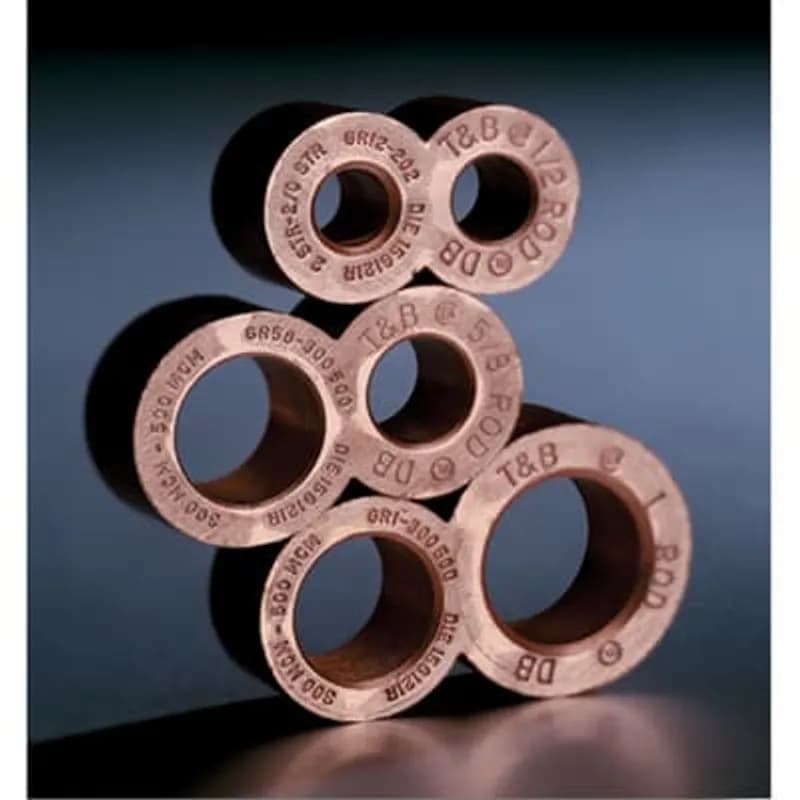

E-Z-Ground Figure 6-8 Copper Compression Ground Rod To Grid Connector for Cable Range 2 AWG - 250 kcmil, Ground Rod 1
