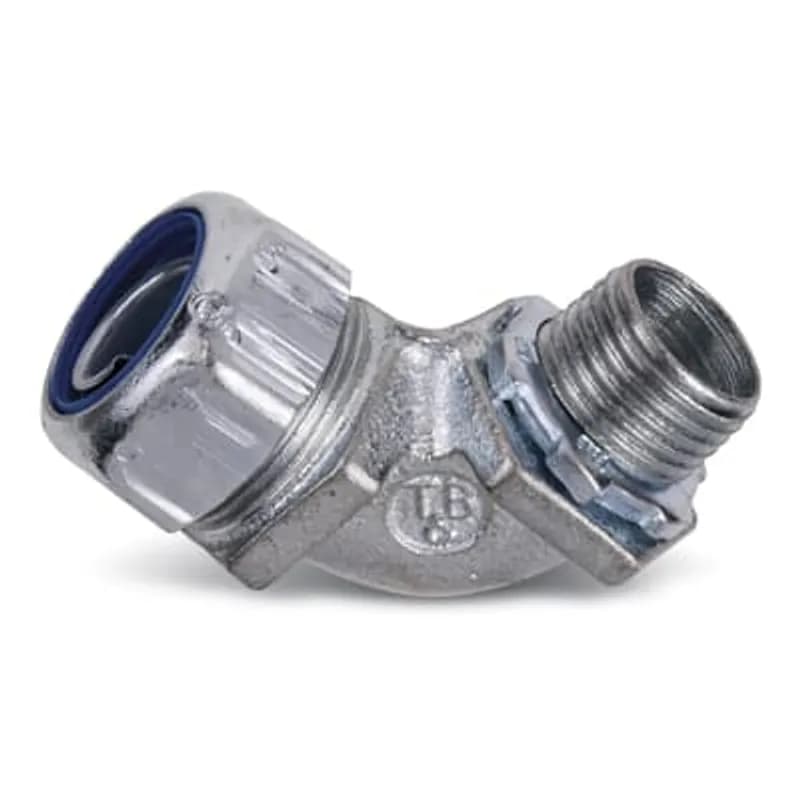

5258AL

These liquid-tight fittings are available in trade sizes from 3/8 in to 4 in (12mm to 103mm).

They conform to UL 514B, CSA C22.2 No. 18.3, IEC/EN 61386-1, -23, RoHS, NEMA FB-1, JIC EGP1, JIC EMP1, Federal Specification A-A 50552, and H-28.

The fittings utilize NPT Threads.

The 5200AL series offers both straight and 90° conduit bodies.

Achieving the stated ingress ratings requires the use of Series 5260 Seal Gaskets.

They are designed for liquid-tight applications against water, oils, cutting fluids, and mild acids.

Yes, they are suitable for use in Class 1 Division 2, Class 2 Division 1 & 2 Hazardous Locations per NEC® Section 500.

These fittings are suitable for use in electrical circuits up to 1,000 V.

The fittings have UL Type 3, 3R, 4, 12, 13 ratings, CSA Type 3, 3R, 4, 12, 13 ratings, NEMA Type 3, 3R, 4, 12, 13 ratings, and IEC IP66, IP67 ratings.

The working temperature range is -20 to +105°C (-4 to +221°F) for UL/CSA, and -25 to +105°C (-13 to +221°F) for IEC/CE.
