UPC: 786210838298
Contact for Pricing
Overview

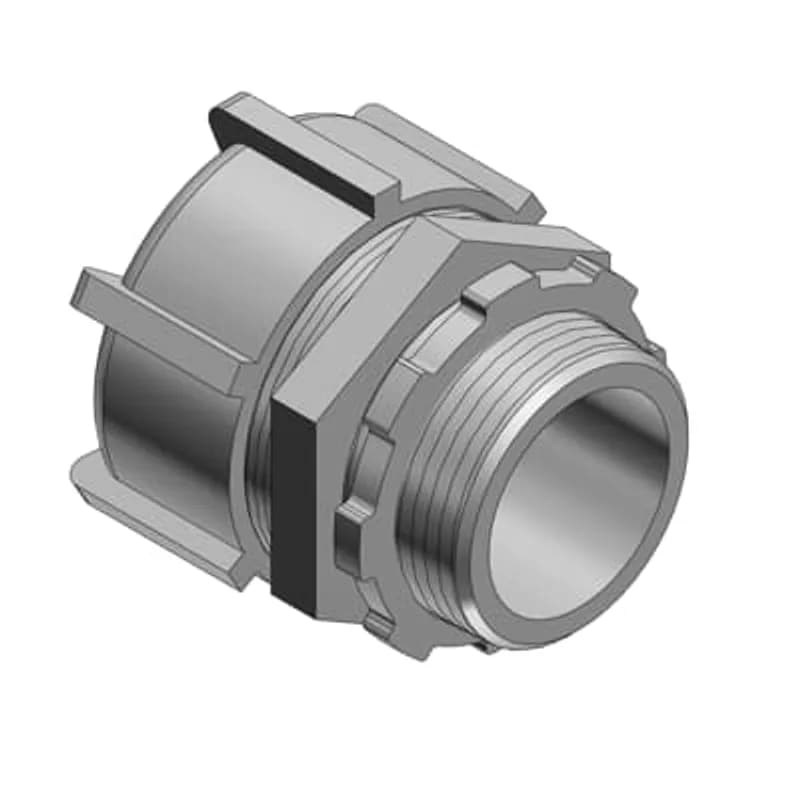

- 3-inch trade size for standard LFMC compatibility
- Aluminum construction for corrosion resistance and lightweight durability
- Straight design for simplified installation in tight spaces
- Non-insulated for direct conduit termination without additional materials
- Suitable for indoor/outdoor industrial and commercial applications
Specifications
Application | High-quality, corrosion-resistant, liquidtight termination for LTA flexible aluminum conduit |
Declaration of Conformity - CE | 9AKK107492A9903 |
Finish | Zinc Plating/Clear Chromate |
Material | Aluminum |
Size | 3 Inch |
Standard | UL E23018, CSA |
Type | Connectors-Straight |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.7000 L |
Package Weight (Metric) | 0.7710 kg |
ST11/4SA-G
PVC Coated Liquitight Conduit Connector, Straight, Pipe Size 1-1/4 Inch/35 Metric, Minimum .040 Inch (40 mil) PVC Coating on Exterior, Aluminum Fitting, Dark Gray
Frequently Asked Questions
What is the trade size of product 5239AL?
Product 5239AL has a trade size of 3 inches (78mm) and uses NPT threads. It is a straight liquid-tight fitting.
What are the dimensions of the 5239AL straight fitting?
The 5239AL straight fitting has approximate dimensions of A=4 1/2 inches, B=3 1/4 inches, and C=1 inch.
Are these fittings suitable for corrosive environments?
Yes, aluminum liquid-tight fittings are ideal for use in corrosive environments. They are also suitable where light weight conduit systems are required.
What standards do these fittings conform to?
They conform to UL 514B, CSA C22.2 No. 18.3, IEC/EN 61386-1, -23, RoHS, NEMA FB-1, JIC EGP1, JIC EMP1, Federal Specification A-A 50552, and H-28.
Are the sealing rings halogen free?
Yes, the sealing rings used in the construction of these fittings are halogen free.
What seal gasket is required for the 5239AL fitting?
The 5239AL fitting requires the use of a 5269 Seal Gasket. This is necessary to ensure ingress integrity.
Can these fittings be used in hazardous locations?
Yes, they are suitable for use in Class 1 Division 2, Class 2 Division 1 & 2 Hazardous Locations per NEC® Section 500.
What is the maximum voltage for electrical circuits using these fittings?
The fittings are suitable for use in electrical circuits up to 1,000 V.
What are the ingress protection ratings for the 5200AL series?
The fittings provide UL Listed Type 4, 12, 13 (indoor) and Type 3, 3R, 4 (outdoor) ratings. They also meet CSA Type 3, 3R, 4, 12, 13 and IEC IP66, IP67 ratings.
What is the operating temperature range for these fittings?
The general operating temperature range is -20 to +105°C (-4 to +221°F) for UL/CSA. For IEC/CE, the range is -25 to +105°C (-13 to +221°F).
How to Install T&B Liquidtight Connectors
This guide provides step-by-step instructions for the proper installation of T&B liquidtight connectors, including the 5330 series, for flexible metallic conduit, ensuring high performance and reliability in accordance with national and local electrical codes.
Estimated time: 15m
Tools needed:
Hacksaw, Power band saw, Metal jig, Smooth jaw wrench, Hand protection, Eye protection
Supplies needed:
Liquidtight flexible metallic conduit, T&B liquidtight connector, T&B 140 series locknuts (optional), 5260 series sealing gaskets (optional), PVC cement (optional)
- Observe Safety Precautions
WARNING: Disconnect power before beginning installation to prevent risk of shock. CAUTION: This product should be installed by a qualified electrician in accordance with national and local electrical codes. Wear appropriate hand protection and eye protection during the installation process.
- Prepare the Flexible Conduit
Cut the flexible conduit with a clean, square end. Use a metal jig, a 32-tooth/inch hacksaw, or a 24-32 tooth/inch power band saw (not more than 400 feet/minute for high production). Do not use an abrasive wheel for cutting.
- Assemble the Connector Components
For 5000, 7000, and 9000 series connectors, slide the gland nut onto the conduit. Next, slide on the nylon sealing ring. Finally, thread in the Safe Edge™ Cone onto the conduit end.
- Install and Secure Connector to Enclosure
Insert the connector body into the knockout box. For standard installations, secure it with the provided locknut. For knockout applications, use T&B® 140 series locknuts and 5260 series sealing gaskets (purchase separately). Ensure the 'O' ring is correctly positioned on the outside of the box for applicable series (e.g., 5365 to 5370).
- Tighten the Gland Nut
Secure the conduit by tightening the gland nut to the connector body. Refer to the 'Tightening torque (lb.-in.)' table in the documentation for the specific torque required based on the fitting's trade size (e.g., 200 lb-in for 3/8", 300 lb-in for 1/2", 500 lb-in for 3/4").
- Handle PVC Coated Connectors (If Applicable)
If installing a PVC coated connector, use a smooth jaw wrench for tightening to prevent gouging. If gouging occurs and exposes metal, apply PVC cement to the affected area for maximum corrosion protection.
- Complete Chase® Connector Assembly (If Applicable)
For 'Space Saver' Chase® connector assemblies, achieve lock-up by either tightening the Chase® Nipple to the body or by turning the body onto the Chase® Nipple.
