ABB - Installation Products 51628-ALTA - Pregalvanized Steel Ground Electrode Box, 22 Gauge, 10 inch diameter, 12 inch depth
More images

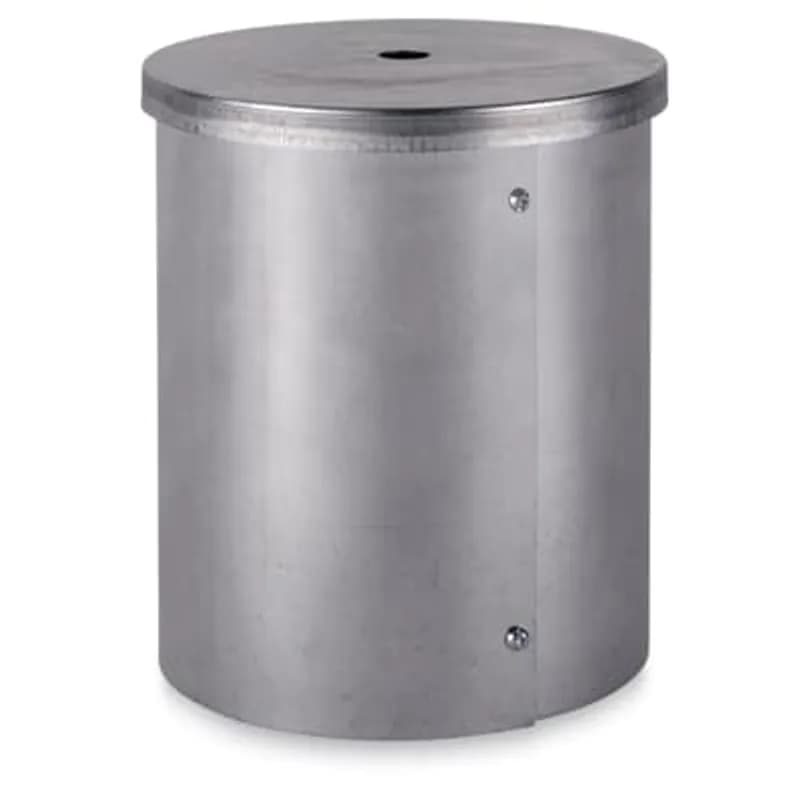

ABB Installation Products 51628-ALTA Pregalvanized Steel Ground Electrode Box, 22 Gauge, 10 inch diameter, 12 inch depth

UPC: 624871002743


Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 51628-ALTA pregalvanized steel ground electrode box is a 22-gauge enclosure designed for underground grounding applications. Measuring 10 inches in diameter and 12 inches in depth, this box provides a durable, corrosion-resistant housing for grounding electrodes in electrical and utility installations. Constructed from pregalvanized steel, it resists rust and weathering, ensuring long-term performance in outdoor and buried environments. The 22-gauge material offers structural integrity while allowing for easy installation and cable routing. Compatible with standard grounding electrodes, this box is ideal for utility substations, commercial buildings, and industrial facilities requiring reliable grounding solutions. The UNSPSC code 39121436 classifies it under grounding system components, confirming its role in electrical safety infrastructure. No additional surface treatment is required due to the pregalvanized finish, reducing installation time and maintenance costs.
  • 10" diameter x 12" depth enclosure for grounding electrodes
  • 22-gauge pregalvanized steel construction resists corrosion
  • Compatible with standard grounding electrodes
  • No additional surface treatment required
  • UNSPSC 39121436 for grounding system components

Specifications

Application
Provides easy access to the ground rod connection area
Insulation
N
Material
Steel
Material
PreGalvanized Steel
Size
10 inch diameter, 12 inch depth
Special Features
Pregalvanized Steel
Type
Ground Rod Accessories
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
5.6000 L
Package Weight (Metric)
2.5400 kg
Pre-galvanized Steel Ground Electrode Box, 14 Gauge, 10 inch Diameter, 12 inch Depth. Hardware Includes 1/4-20 x 3/4 inch long Round Head Socket and Zinc Hex Nut.

51628-TB

Pre-galvanized Steel Ground Electrode Box, 14 Gauge, 10 inch Diameter, 12 inch Depth. Hardware Includes 1/4-20 x 3/4 inch long Round Head Socket and Zinc Hex Nut.
Hot dip galvanized Steel Ground Electrode Box 10 Inch diameter, 12 Inch depth

51629

Hot dip galvanized Steel Ground Electrode Box 10 Inch diameter, 12 Inch depth

Frequently Asked Questions

What are the dimensions of the ABB 51628-ALTA box?

The box has a 10-inch diameter and a 12-inch depth.

Does the ground electrode box require additional surface treatment?

No, the pregalvanized finish eliminates the need for additional surface treatment.

Is the ABB 51628-ALTA suitable for outdoor use?

Yes, the pregalvanized steel construction makes it suitable for outdoor and buried environments.
