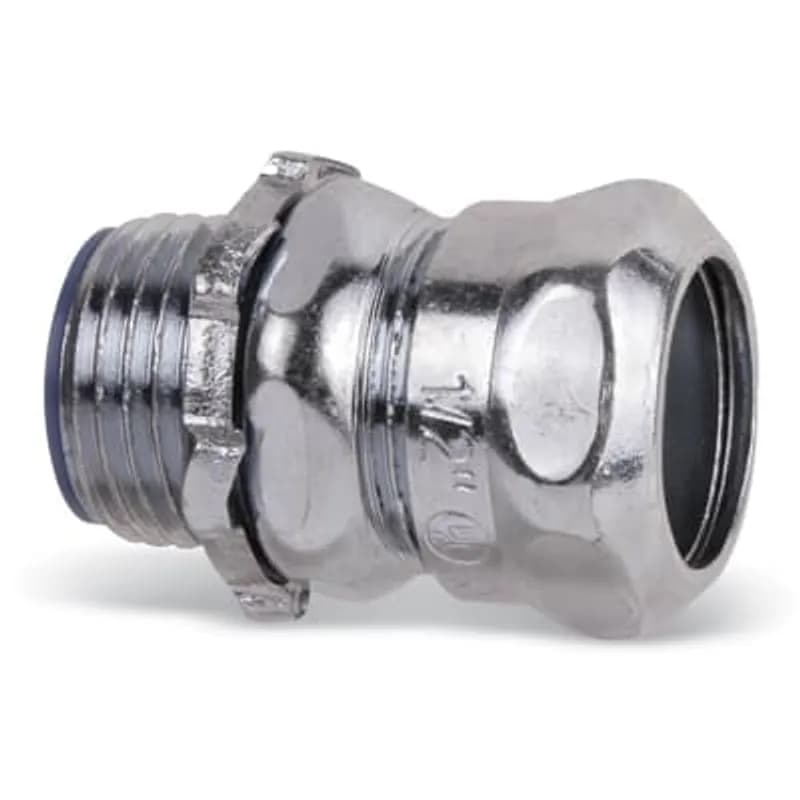

ABB Installation Products 5123 1/2 Inch Insulated Compression Connector, Steel Electro Zinc Plated, Insulator…
UPC: 786210051239
Documents & Media
Contact for Pricing
Minimum Qty: 50
Multiplier: 50
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 1/2" EMT conduit size compatibility
- Steel construction with electro-zinc plating for corrosion resistance
- Thermoplastic insulator for electrical isolation and safety
- UL File No. E-16592 and CSA File No. LR-12798 listed
- Approved for concrete-tight applications when installed per code
Specifications
Application | To Connect and Effectively Bond Electrical Metallic Tubing to a Box or an Enclosure |
Connection Type | Compression |
Finish | Electro Zinc Plated |
Material | Steel, Electro Zinc plated |
Material | Steel Electro Zinc Plated |
Material Quality | Steel |
Size | 1/2 Inch |
Special Features | Rugged All Steel Construction |
Standard | UL E16592, CSA |
Type | EMT Conduit Fittings |
Package Dimensions (L x W x H) | 4 IN x 5 IN x 6 IN |
Package Dimensions (L x W x H) | 10.16 cm x 12.7 cm x 15.24 cm |
Package Weight (Imperial) | 0.1000 L |
Package Weight (Metric) | 0.0450 kg |
IT-4
The Polaris IT-4 Multi-Tap Single-Side Entry Connector features 2 ports sized for 4 AWG to 14 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections. Dual rated for use with copper or aluminum cables. Installs with a hex key and torque wrench, without any tape or additional supplies. Designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.
TC122A-FA
Set Screw Connector, Concrete Tight, Conduit Size 3/4 Inch, Material Zinc Plated Steel, Color Red, For Fire Alarm Applications
CPC75EG
Conduit connection plate with hardware for 3/4 in. electrical metallic tubing (EMT) connectors. The sheet identifies the product as CPC75EG. No material, finish, or dimensional attributes are printed on the sheet beyond the 3/4 size reference in the title.
2-FWSW
Two-Gang Airtight Device Box, Volume 33 Cubic Inches, Length 3-3/4 Inches, Width 4 Inches, Depth 2-3/4 Inches, Color Gray, Material Non-Metallic, Cable Entries 8
LT75-CPL
Non-metallic Liquidtight Conduit Coupling, 3/4 Inch Size Type B, PVC Material, Screw-in Type
CI5412-IT
EMT Insulated Throat Set Screw Fitting, Concrete Tight, Trade Size 1-1/2 Inch, Material Steel
Frequently Asked Questions
What material is the ABB 5123 made from?
The ABB 5123 is made from steel with an electro-zinc plated finish.
What conduit size does the ABB 5123 support?
The ABB 5123 is designed for 1/2 inch EMT (Electrical Metallic Tubing) conduit.
What certifications does the ABB 5123 have?
The ABB 5123 is UL File No. E-16592 and CSA File No. LR-12798 listed.
What is the insulator made of on the ABB 5123?
The insulator on the ABB 5123 is made from thermoplastic material.
Can the ABB 5123 be used in concrete-tight applications?
Yes, the ABB 5123 is approved for concrete-tight applications when installed according to applicable electrical codes.
Is the ABB 5123 suitable for outdoor use?
Yes, the insulated version of the ABB 5123 is approved for indoor and outdoor applications.
Is the ABB 5123 compatible with threaded entries?
Yes, the ABB 5123 is suitable for use with threaded entries in electrical enclosures.
Does the ABB 5123 include a locknut?
The ABB 5123 is designed for use with standard knockout openings in electrical enclosures, which typically include a locknut.
