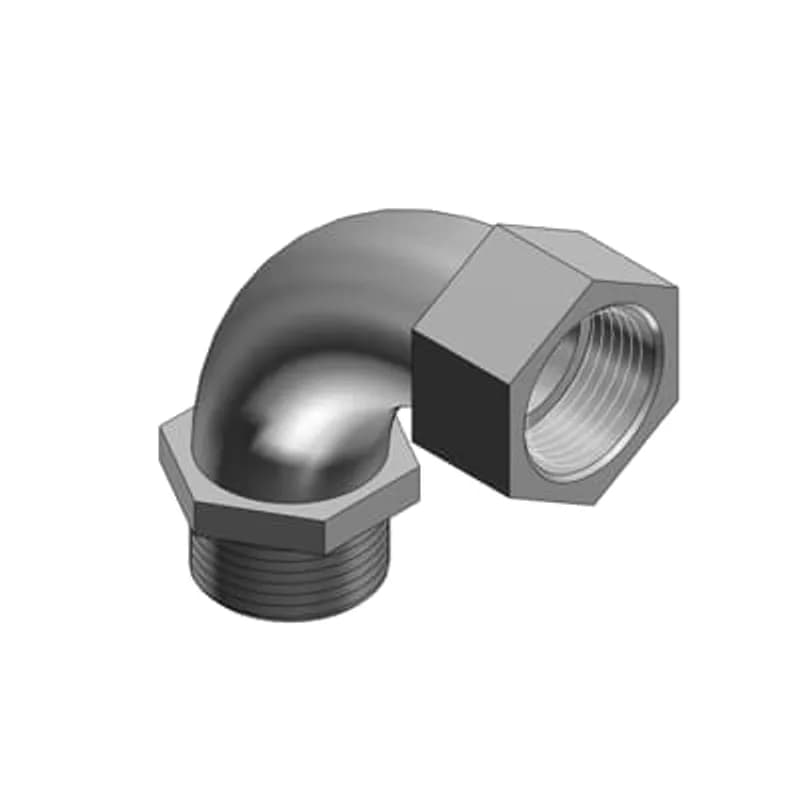

ABB - Installation Products 460-TB - 1/2 Inch Bushed Elbow, Malleable Iron for Use with Rigid/IMC Conduit

ABB Installation Products 460-TB 1/2 Inch Bushed Elbow, Malleable Iron for Use with Rigid/IMC Conduit

UPC: 786210004600


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 460-TB is a 1/2 inch bushed elbow fitting constructed from durable malleable iron, designed for use with Rigid and Intermediate Metal Conduit (IMC). This non-insulated elbow facilitates 90-degree turns in conduit runs, featuring smoothly rounded shoulders to protect conductor insulation from abrasion during wire pulls. The integral bushing ensures a smooth entry for conductors, maintaining the integrity of the conduit system. Key specifications include a 1/2" conduit size and dimensions of 1-13/16" (A) x 1-1/8" (B) x 5/8" (C). This fitting is compatible with both Rigid and IMC conduit types. For enhanced corrosion resistance in demanding environments, a Dura-Plate™ finish is available by adding the prefix 040- to the catalog number (consult Customer Service for details). The ABB 460-TB meets UL File No. E 23018 and CSA File No. 2884 standards for electrical conduit systems. It is ideal for industrial and commercial electrical installations requiring reliable conduit routing and conductor protection.
  • 1/2 inch conduit size for Rigid and Intermediate Metal Conduit (IMC)
  • Constructed from durable malleable iron for long-lasting performance
  • Smoothly rounded shoulders protect conductor insulation during pulls
  • Integral bushing ensures smooth conductor entry and conduit integrity
  • Dimensions: 1-13/16" (A) x 1-1/8" (B) x 5/8" (C)

Specifications

Application
To Connect and Effectively Bond Threaded Rigid Metal Conduit/Intermediate Metal Conduit to a Box or Enclosure, or to Couple Ends of Threaded Conduit
Connection Type
Conduit Fitting
Material
Malleable Iron
Material Quality
Malleable Iron
Size
1/2 Inch
Special Features
The Non-Insulated Elbow Has Smoothly Rounded Shoulders to Protect Conductor Insulation
Standard
CSA, UL E23018
Trade Size
1/2
Type
Rigid/IMC Conduit Fittings
Package Dimensions (L x W x H)
4 IN x 5 IN x 8 IN
Package Dimensions (L x W x H)
10.16 cm x 12.7 cm x 20.32 cm
Package Weight (Imperial)
0.3500 L
Package Weight (Metric)
0.1590 kg
Schedule 40 Elbow, Size 2-1/2 Inches, Bend Radius 36 Inches, Bend Angle 90 Degrees, Material PVC, Belled End

UA9FKB

Schedule 40 Elbow, Size 2-1/2 Inches, Bend Radius 36 Inches, Bend Angle 90 Degrees, Material PVC, Belled End
Aluminum 1/2" Set Screw Connector Pull Elbows

71-DCA

Aluminum 1/2" Set Screw Connector Pull Elbows
1-1/2 Inch Short Elbow, Malleable Iron for Use with EMT Conduit

4234

1-1/2 Inch Short Elbow, Malleable Iron for Use with EMT Conduit
3/4 Inch Bushed Elbow, Malleable Iron for Use with Rigid/IMC Conduit

461-TB

3/4 Inch Bushed Elbow, Malleable Iron for Use with Rigid/IMC Conduit
1 Inch Bushed Elbow, Malleable Iron for Use with Rigid/IMC Conduit

462

1 Inch Bushed Elbow, Malleable Iron for Use with Rigid/IMC Conduit
1-1/4 Inch Bushed Elbow, Malleable Iron for Use with Rigid/IMC Conduit

463

1-1/4 Inch Bushed Elbow, Malleable Iron for Use with Rigid/IMC Conduit
1/2 Inch Nylon Insulated Bushed Elbow for Rigid Metal Conduit

470-TB

1/2 Inch Nylon Insulated Bushed Elbow for Rigid Metal Conduit
1/2 Inch Short Elbow, Malleable Iron for Use with EMT Conduit

4230

1/2 Inch Short Elbow, Malleable Iron for Use with EMT Conduit

Frequently Asked Questions

What conduit types are compatible with the 460-TB?

The ABB 460-TB is designed for use with 1/2" rigid conduit and Intermediate Metal Conduit (IMC).

What are the dimensions of the 460-TB?

The 460-TB has dimensions of 1⅛" (A) x 1⅛" (B) x ⅝" (C).

Does the 460-TB have insulation?

No, the 460-TB is a non-insulated fitting. Insulated versions are available in the 4290 series.

What is the purpose of the bushed design?

The bushed design provides a smooth, protected entry point for conductors, preventing abrasion and damage during wire pulls.

Is a special finish available for the 460-TB?

Yes, the 460-TB is available with DURA-PLATE® finish for enhanced corrosion resistance.
