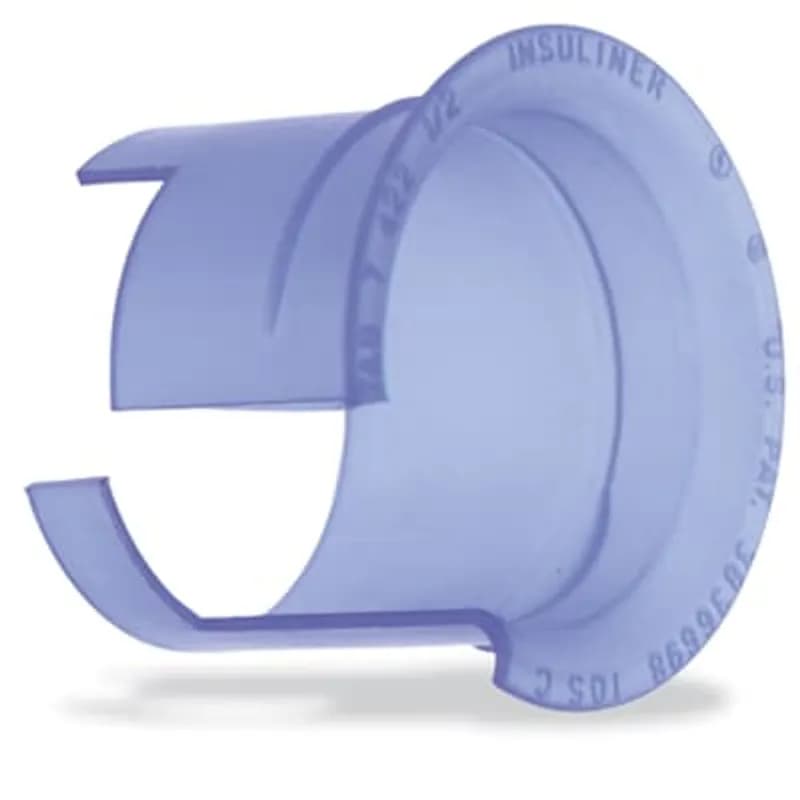

ABB Installation Products 430-TB 3-1/2 Inch Insuliner Sleeve, Nylon for Use with Rigid/IMC/EMT Conduit
UPC: 786210004303
Documents & Media
Contact for Pricing
Minimum Qty: 5
Multiplier: 5
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Converts ordinary conduit bushings to UL-listed insulated bushings without rewiring.
- Constructed from high-dielectric nylon material rated at 105°C.
- Provides electrical insulation and abrasion resistance for conduit systems.
- Accommodates 3-1/2 inch rigid conduit, IMC, EMT, and flexible metallic conduit.
- Nylon material offers an oxygen index greater than 28 for enhanced fire safety.
Specifications
Application | Snaps Into a Regular Bushin to Make a UL Listed Insulated Bushing |
Material | Nylon |
Nominal Cross Section | 3-1/2 in |
Special Features | Especially Suited for Use with Flexible Metallic Conduit |
Standard | UL E23018, CSA |
Type | Insulating Sleeve |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.0400 L |
Package Weight (Metric) | 0.0180 kg |

RTS10PG
Roof Top Support With B1400PG Strut Channel, Size - 10 inch, Material - Roof Top Block - Recycled Rubber, Strut - 14-Gauge Steel With Pre-galvanized Finish, Weight - 6.1 lb (2.758 kg)
RTS10PGB
Roof Top Support With B1400PG Strut Channel, Bulk Pack (full pallet), Size - 10 inch, Material - Roof Top Block - Recycled Rubber, Strut - 14-Gauge Steel With Pre-galvanized Finish, Weight - 6.1 lb (2.758 kg)
RTS6PG
Roof Top Support With B1400PG Strut Channel, Size - 6 inch, Material - Roof Top Block - Recycled Rubber, Strut - 14-Gauge Steel With Pre-galvanized Finish, Weight - 4.5 lb (2.034 kg)
PWBTB6CBL
The Wire Basket Trapeze Bracket w/ Center Hole is used in cable routing systems to support a 6 inch wide Wire Basket from either dual or single threaded rod. The hardware for attaching the bracket is sold separately. The Trapeze Bracket comes in black powder-coated finish and is sold in packages of two.
PWBTB30BL
The Wire Bakset Trapeze Bracket is used in cable routing systems to support a 30 inch wide Wire Basket from dual threaded rod. The hardware for attaching the bracket is sold separately. The Trapeze Bracket comes in black powder-coated finish and is sold in packages of two.Frequently Asked Questions
What types of conduit can the ABB 430-TB sleeve be used with?
The ABB 430-TB Insuliner Sleeve is designed for use with standard rigid conduit, Intermediate Metal Conduit (IMC), Electrical Metallic Tubing (EMT), and flexible metallic conduit.
What is the temperature rating of the ABB 430-TB Insuliner Sleeve?
The ABB 430-TB Insuliner Sleeve is constructed from high-dielectric nylon material and is rated at 105°C.
Does the ABB 430-TB sleeve require rewiring to insulate a bushing?
No, the ABB 430-TB Insuliner Sleeve converts ordinary conduit bushings to UL-listed insulated bushings without disturbing existing wiring.
What is the oxygen index of the nylon material used in the ABB 430-TB sleeve?
The nylon material used in the ABB 430-TB Insuliner Sleeve offers an oxygen index greater than 28, contributing to fire safety.
