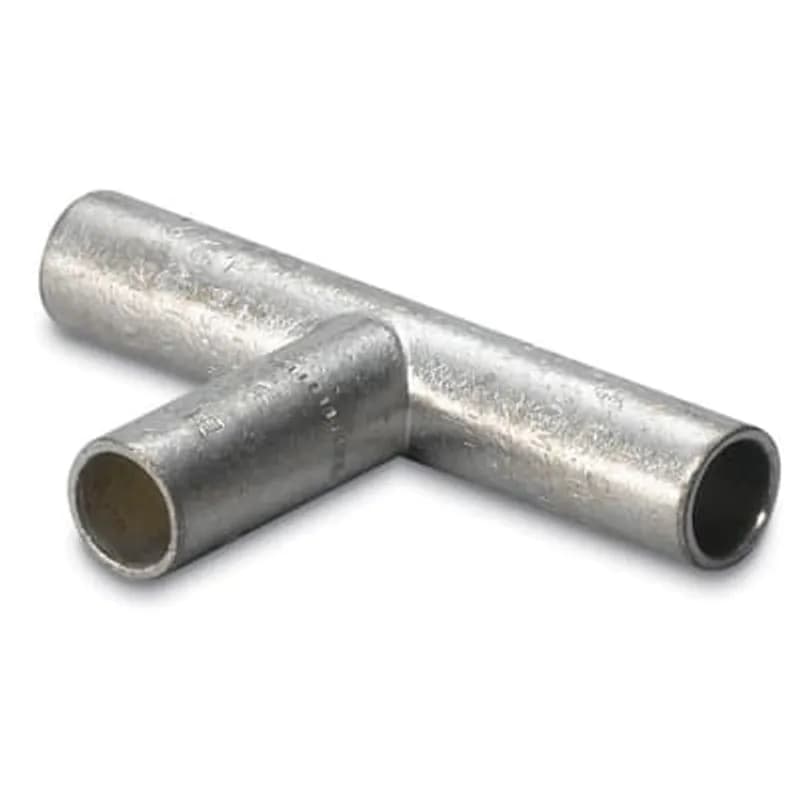

ABB Installation Products 4/0 T 4/0 Copper Tin-Plated Tees, main 4/0, tap 4/0. 4-1/2 inch wide, with 1-5/8 inch Tap, Main…
UPC: 783786766277
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Main conductor size: 4/0 AWG stranded copper
- Tap conductor size: 4/0 AWG stranded copper
- Overall width: 4-1/2 inches
- Tap length: 1-5/8 inches
- Threaded interface: 5/8-11
- Tin-plated copper for corrosion resistance
- Silver-brazed tap for low-resistance joints
- Dimpled design for improved grip and alignment
- Manufactured by ABB - Installation Products
- UNSPSC Code: 39121449
Specifications
Application | Tees for Copper Conductors |
Conductor Range | 4/0 AWG |
Connection | Compression |
Finish | Tin-Plated |
Insulation | None |
Material | Copper |
Material | Copper Tin-Plated |
Number Of Conductors | 3 |
Size | Main 4.188 inches long Main Diameter .688 inch, Tap 1.625 inches long Tap Diameter .688 inch |
Size | 4-1/2 inch wide, 1-5/8 inch Tap |
Special Features | Tees Made from Tin-Plated Copper for High Conductivity and Resistance to Moisture. All Tees Marked with Conductor Sizes and Die References for Easy identification |
Type | Compression Splice Service Entrance Insulated |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.0000 L |
Package Weight (Metric) | 0.4540 kg |
