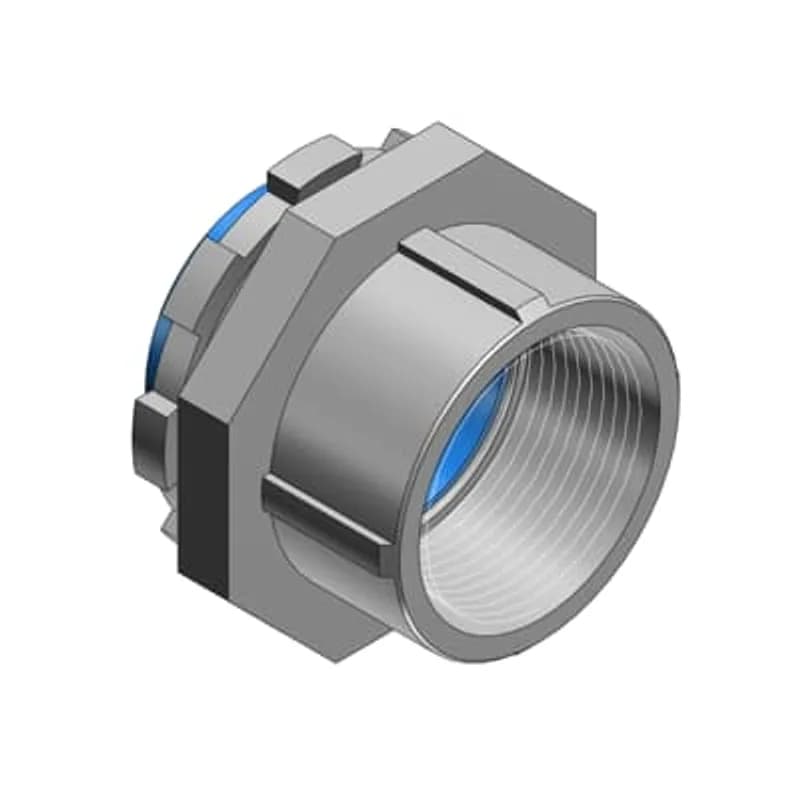

ABB - Installation Products 372AL - 1 Inch Hub Connector, Aluminum, for Use with Rigid/IMC Conduit

ABB Installation Products 372AL 1 Inch Hub Connector, Aluminum, for Use with Rigid/IMC Conduit

UPC: 786210829173


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 5

Multiplier: 5

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 372AL is a 1-inch hub connector designed for use with Rigid Metal Conduit (RMC) and Intermediate Metal Conduit (IMC). Constructed from copper-free aluminum, this fitting provides a durable and corrosion-resistant termination point for conduit systems. The hub features straight pipe threads, while the female threads are taper pipe (NPT) for secure connections. This hub connector is suitable for use in Class I, Division 2; Class II, Division 1 and 2; and Class III, Division 1 and 2 Hazardous Locations per NEC Section 500. It is also suitable as a grounding means per NEC Section 351-9 for trade sizes up to 1-1/4 inch. The 1/2" through 1-1/4" sizes have been laboratory tested to carry ground fault current of up to 1000 amps RMS with a duration of 3 cycles. The symmetrical shape ensures foolproof assembly, and the connector can be disconnected and reused. Watertight and oil-tight installation at box or enclosure termination is assured by the external taper thread hub and the use of a sealing gasket. 18, NFPA 70-1999, NEMA FB-1, JIC EGP1, JIC EMP 1, and Federal Specification W-F-408. It is listed by UL (File No: E-23018) and CSA (LR-637, LR-23086). SKU: 372AL. Manufacturer: ABB Installation Products.
  • 1-inch trade size hub connector for Rigid Metal Conduit (RMC) and Intermediate Metal Conduit (IMC).
  • Constructed from copper-free aluminum for corrosion resistance.
  • Suitable for Class I, Div 2; Class II, Div 1 & 2; Class III, Div 1 & 2 Hazardous Locations.
  • Grounding means per NEC Section 351-9 (up to 1-1/4" trade size).
  • Laboratory tested for 1000 amp RMS ground fault current (3 cycles) on sizes up to 1-1/4".

Specifications

Application
To Connect Threaded Metal Conduit to a Threadless Opening in a Box or Enclosure
Connection Type
Threaded
Material
Aluminum
Size
1 Inch
Special Features
Rain Tight and CSA Certified Watertight and Dust Tight
Standard
UL E23018, CSA
Temperature Rating, Maximum
221 F
Temperature Rating, Maximum
105 C
Temperature Rating, Minimum
221 F
Temperature Rating, Minimum
105 C
Type
Hub Connector
Package Dimensions (L x W x H)
4 IN x 4 IN x 3 IN
Package Dimensions (L x W x H)
10.16 cm x 10.16 cm x 7.62 cm
Package Weight (Imperial)
0.1800 L
Package Weight (Metric)
0.0820 kg
