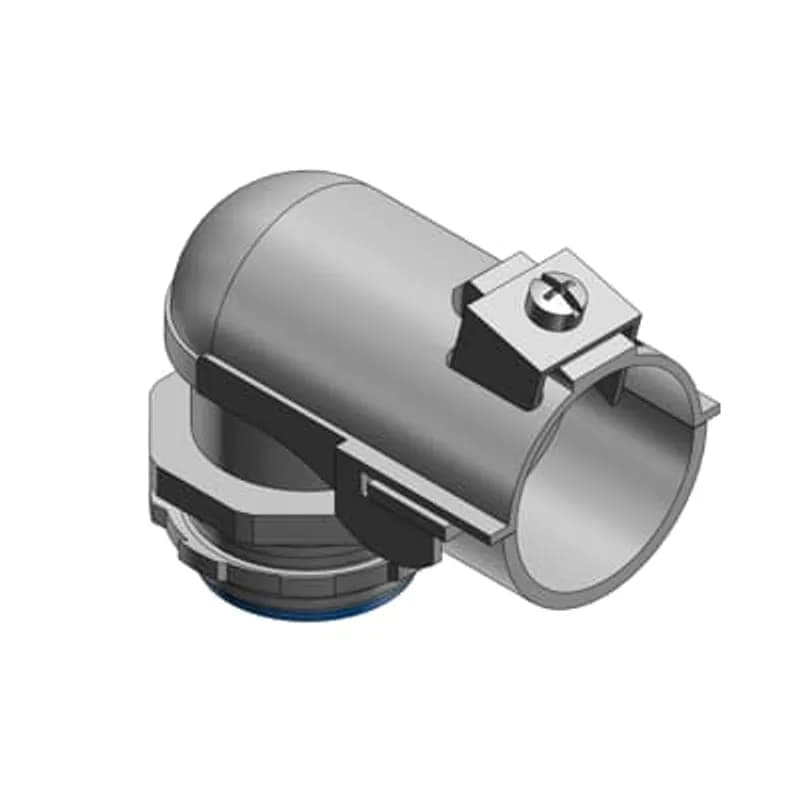

ABB - Installation Products 3130-TB - Metal-Clad and Armored Cable Fitting, 90 Degree Bend, Trade Size 3/8 Inch, Knockout Size 1/2 Inch, Cable Range 0.470 to 0.660 Inch, Steel with Zinc Plating, Nylon Insulated

ABB Installation Products 3130-TB Metal-Clad and Armored Cable Fitting, 90 Degree Bend, Trade Size 3/8 Inch, Knockout Size…

UPC: 786210031309


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 3130-TB is a 90-degree Tite-Bite® fitting designed for the secure termination of metal-clad and armored cables. Constructed from durable steel with zinc plating, this fitting provides robust protection for cable entries into enclosures and equipment. It is specifically engineered for metal-clad cable (MCI) and interlocked armor ground type metal-clad cable (MCI-A), holding UL File No. E 23018 and CSA File No. 2884. This fitting accommodates a cable diameter range of 0.470 to 0.660 inches, with a trade size of 3/8 inch and a knockout size of 1/2 inch. The 90-degree angle facilitates efficient cable routing around corners and through tight spaces, ensuring a neat and organized installation. The integrated nylon insulation offers additional protection against abrasion and electrical interference. Key Specifications: - Catalog Number: 3130-TB - Manufacturer: ABB - Installation Products - Type: 90 Degree Angle Fitting - Material: Steel (thru 1/2" trade size) - Plating: Zinc - Insulation: Nylon - Trade Size: 3/8 inch - Knockout (KO) Size: 1/2 inch - Cable Opening Range: 0.470 to 0.660 inches - UL Listing: #UL Listed for Metal Clad Cable (MCI), •UL Listed for new Interlocked Armor Ground Type Metal Clad Cable (MCI-A) - CSA Listing: CSA File No. 2884 Applications include routing and protecting metal-clad and armored cables in industrial electrical installations where 90-degree bends are required. The Tite-Bite® design ensures a secure connection, simplifying installation and maintaining cable integrity.
  • 90-degree angle for efficient cable routing
  • Steel construction with zinc plating for durability
  • Nylon insulated for added cable protection
  • Accommodates cable diameters from 0.470 to 0.660 inches
  • 3/8 inch trade size and 1/2 inch knockout size
  • UL Listed for Metal Clad Cable (MCI) and Interlocked Armor Ground Type Metal Clad Cable (MCI-A)
  • CSA File No. 2884

Specifications

Package Dimensions (L x W x H)
4 IN x 4.5 IN x 6 IN
Package Dimensions (L x W x H)
10.16 cm x 11.43 cm x 15.24 cm
Package Weight (Imperial)
0.1300 L
Package Weight (Metric)
0.0590 kg
