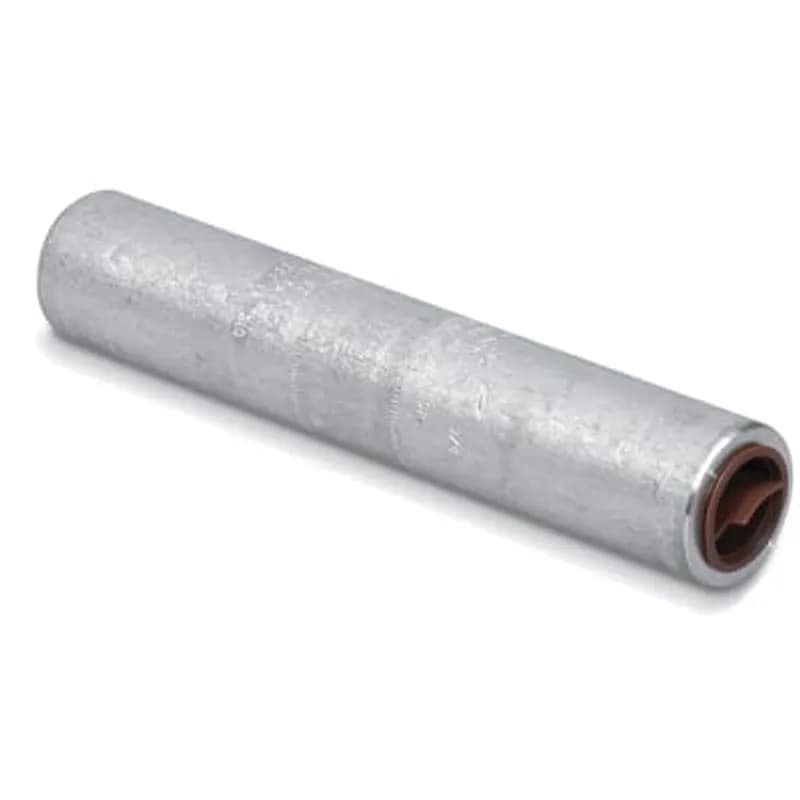

ABB Installation Products 3000-16 Aluminum Compression Reducer Splice, 500 mcm to 350 mcm, Aluminum and Copper. Length 7…
UPC: 783786765836
Documents & Media
Contact for Pricing
Minimum Qty: 100
Multiplier: 100
*Contact for lower quantities*
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Connects 500 MCM to 350 MCM aluminum or copper conductors
- 7-inch length for secure crimping
- Includes oxide inhibitor for corrosion prevention
- Oil stop feature for conductor protection
- Compatible with dies: 140, 301, 342, 1 1/2
Specifications
Conductor Range | 350 to 500 kcmil |
Connection | Compression |
Finish | Bare |
Insulation | None |
Material | Aluminum |
Size | Length 7.000 inch, Outside Diameter 1.594 inch |
Special Features | Marked with Conductor Sizes and Dies References. Dual Rated for Aluminum and Copper Conductors. Pink and Brown Caps, Oxide Inhibiting Compound. Center Stop |
Type | Compression Splice Service Entrance Insulated |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.1300 L |
Package Weight (Metric) | 0.5130 kg |
AC 500 R 350
