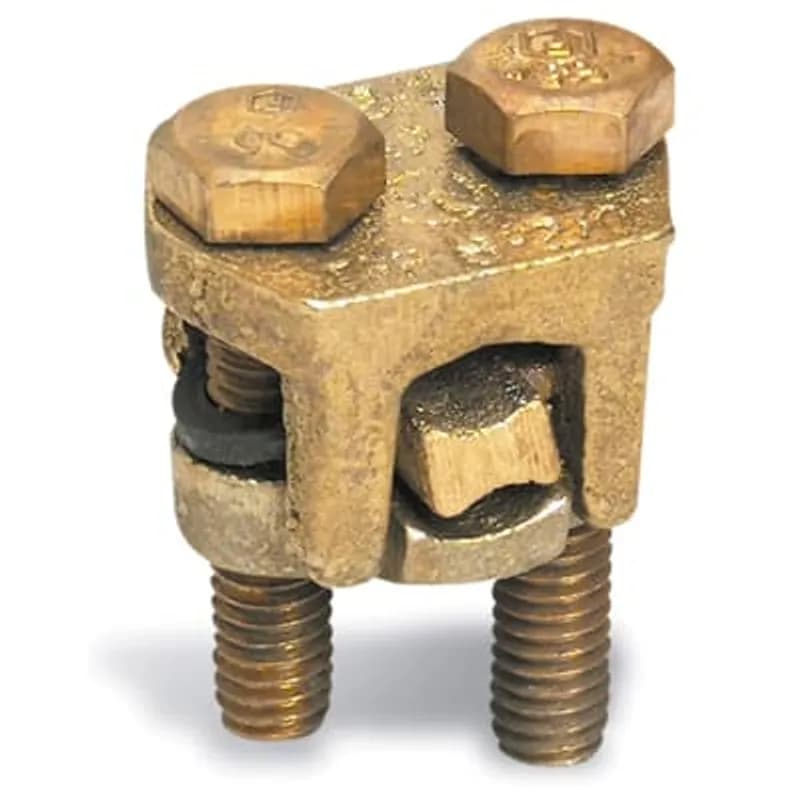

ABB - Installation Products 2B350W - Copper Type 2BW - Two-Bolt Connector with Spacer for Wire Range Main: 4/0 Str. - 350 kcmil Tap: 4 Sol. - 350 kcmil , Bolt Size 3/4
More images

ABB Installation Products 2B350W Copper Type 2BW - Two-Bolt Connector with Spacer for Wire Range Main: 4/0 Str. - 350…

UPC: 783786400188

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 2B350W is a copper two-bolt mechanical connector with an integrated spacer, designed for secure, high-integrity electrical connections in industrial power distribution systems. Part of ABB Installation Products' Type 2BW series, this connector accommodates a main conductor range from 4/0 stranded to 350 kcmil and a tap conductor range from 4 AWG stranded to 350 kcmil, making it suitable for heavy-duty applications where reliable branching or splicing is required. Engineered for copper conductors only, the 2B350W features a single-piece construction spacer that simplifies installation by allowing the connector to swing easily over the conductor. The spacer ensures proper conductor separation and alignment, reducing the risk of short circuits or loose connections. The connector's castings and bolts are manufactured from high-strength copper alloy, while the spacer is made from ductile, high-conductivity copper alloy, ensuring both mechanical durability and optimal electrical performance. The 2B350W utilizes a 3/4" bolt size, providing substantial clamping force to maintain a stable connection under mechanical stress and thermal cycling. Key dimensions include a length (L) of 2.25 inches, height (H) of 2.5 inches, and a bolt head diameter of 0.681 inches. The connector's design supports efficient torque application and long-term reliability in demanding environments, including power distribution panels, motor control centers, and renewable energy systems. This connector is ideal for applications requiring branched conductor connections, such as in industrial machinery, commercial electrical systems, and utility installations. Its compatibility with large conductor sizes makes it particularly useful in high-current circuits where minimal voltage drop and maximum conductivity are critical. The ABB 2B350W is a practical solution for engineers and electricians seeking a durable, high-performance mechanical connector for copper conductors.
  • Accommodates main conductors from 4/0 stranded to 350 kcmil and tap conductors from 4 AWG stranded to 350 kcmil
  • Single-piece construction spacer for easy conductor alignment and installation
  • High-strength copper alloy castings and bolts with ductile, high-conductivity copper alloy spacer
  • 3/4" bolt size for secure clamping and long-term connection integrity
  • Dimensions: Length 2.25 in, Height 2.5 in, Bolt head diameter 0.681 in

Specifications

Bolt Size
3/4 in
Connection Type
Two-Bolt Connector with Spacer
Material
Copper
Size
Main: 4/0 Str. - 350 kcmil, Tap: 4 Sol. - 350 kcmil
Special Features
Single-piece construction. Castings and bolts of high-strength copper alloy. Spacer made of ductile, high-conductivity copper alloy
Standard
UL E9809
Type
Two-Bolt Connector
Package Dimensions (L x W x H)
7.3 IN x 3.8 IN x 5.2 IN
Package Dimensions (L x W x H)
18.542 cm x 9.652 cm x 13.208 cm
Package Weight (Imperial)
0.7700 L
Package Weight (Metric)
0.3490 kg
