ABB - Installation Products 22F066 - Insulation Piercing Magnet Wire Fork Terminal, Length .91 Inches, Width .30 Inches, Length of Teeth .45 Inches, Width of Teeth .25 Inches, Stud Size 6, Wire Range #16 AWG - #12 AWG 2,580 Circular Mil Area - 12,330 Circular Mil Area, Copper Alloy, Tin Plated

ABB Installation Products 22F066 Insulation Piercing Magnet Wire Fork Terminal, Length .91 Inches, Width .30 Inches…

UPC: 786210837505


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 1000

Multiplier: 1000

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

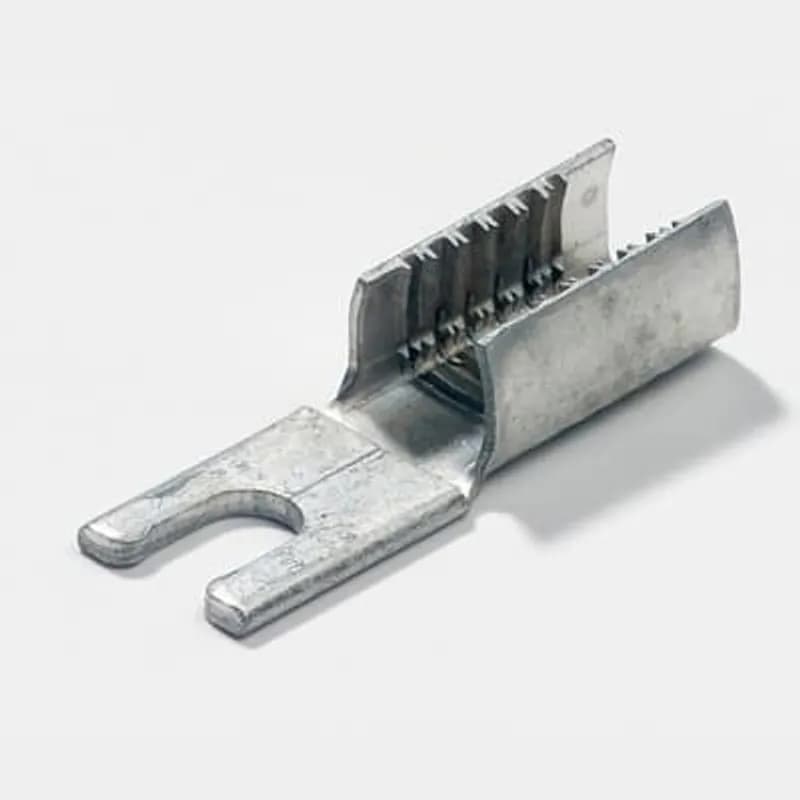

ABB 22F066 Insulation Piercing Magnet Wire Fork Terminal is a precision-engineered copper alloy terminal designed for reliable electrical connections in magnet wire applications. The terminal features a forked design with a length of 0.91 inches and a width of 0.30 inches, making it suitable for compact installations. The insulation piercing teeth measure 0.45 inches in length and 0.25 inches in width, ensuring secure penetration through insulation for direct contact with conductors. This terminal accommodates wire ranges from #16 AWG to #12 AWG, with a circular mil area spanning 2,580 to 12,330 CM, providing flexibility for various wire gauges. The stud size is 6, ensuring compatibility with standard fastening hardware. The terminal is tin-plated for enhanced corrosion resistance and improved electrical conductivity. Ideal for use in control panels, transformers, and industrial machinery where reliable, maintenance-free connections are critical. The ABB 22F066 is manufactured to meet industrial standards for durability and performance in high-vibration environments.
  • Fork terminal for magnet wire applications
  • Insulation piercing teeth for direct conductor contact
  • Accommodates #16 AWG to #12 AWG wire range (2,580–12,330 CM)
  • Tin-plated copper alloy for corrosion resistance and conductivity
  • Stud size 6 for compatibility with standard fastening hardware

Specifications

Application
For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections
Connection Type
Insulation Piercing
Material
Copper
Material
Copper Alloy, Tin Plated
Size
Length .91 Inches, Width .30 Inches, Length of Teeth .45 Inches, Width of Teeth .25 Inches, Stud Size 6
Special Features
Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire
Standard
UL E9809
Type
Fork Terminal
Package Dimensions (L x W x H)
6 IN x 4.5 IN x 3 IN
Package Dimensions (L x W x H)
15.24 cm x 11.43 cm x 7.62 cm
Package Weight (Imperial)
0.0010 L
Package Weight (Metric)
0.0010 kg
