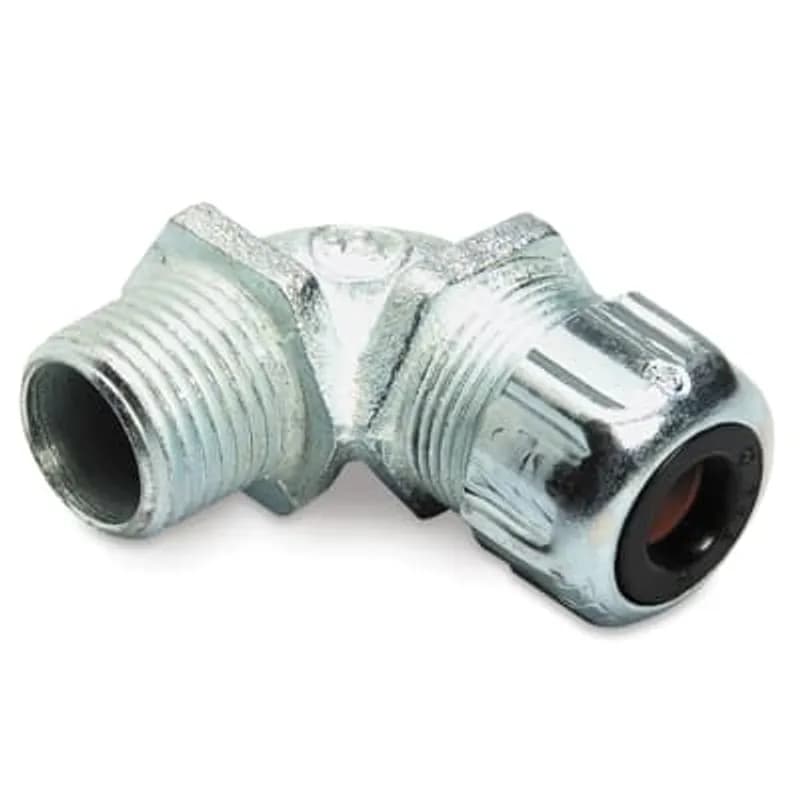

ABB - Installation Products 2253-TB - Liquidtight Strain Relief Cord Connector, 3/4 Inch, 90 Degree Bend, Meets Coast Guard CG293, Cord Range 0.750 to 0.880 Inch, Malleable Iron

ABB Installation Products 2253-TB Liquidtight Strain Relief Cord Connector, 3/4 Inch, 90 Degree Bend, Meets Coast Guard…

UPC: 786210357911


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 10

Multiplier: 10

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 2253-TB is a 3/4 inch, 90-degree liquidtight strain relief cord connector manufactured by ABB - Installation Products. Constructed from durable malleable iron, this connector is designed to provide secure and reliable strain relief for electrical cords. It is specifically engineered to meet Coast Guard CG293 standards, indicating its suitability for marine and offshore applications where resistance to harsh environmental conditions is paramount. The connector accommodates a cord range of 0.750 to 0.880 inches, ensuring a secure fit for a variety of cable sizes. The 90-degree bend configuration allows for efficient cable routing in confined spaces, preventing sharp bends that could compromise cord integrity. This feature is critical in installations where space is limited or specific directional changes are required. Key Specifications: - SKU: 2253-TB - Manufacturer: ABB - Installation Products - Size: 3/4 Inch - Bend Angle: 90 Degrees - Cord Range: 0.750 to 0.880 Inch - Material: Malleable Iron - Compliance: Meets Coast Guard CG293 - UNSPSC Code: 39121431
  • 3/4 Inch liquidtight strain relief cord connector
  • 90-degree bend configuration for efficient routing
  • Constructed from durable malleable iron
  • Meets Coast Guard CG293 standards
  • Accommodates cord sizes from 0.750 to 0.880 inches

Specifications

Application
Suitable for Use In Hazardous Locations Where General Purpose Equipment is Specifically Permitted by NEC 501-4(B)
Color
Metallic
Conductor Range
0.750 to 0.875 Inch
Material Quality
Malleable Iron
Size
3/4 Inch
Special Features
Meets Coast Guard CG293
Standard
UL E13938, CSA
Type
Strain Relief Cord Connectors-90 Degree
Package Dimensions (L x W x H)
6.2 IN x 4.18 IN x 4.31 IN
Package Dimensions (L x W x H)
15.748 cm x 10.6172 cm x 10.9474 cm
Package Weight (Imperial)
0.3900 L
Package Weight (Metric)
0.1770 kg
Liquidtight Strain Relief Cord Connector, 1 Inch, Straight, Cord Range 0.750 to 0.875 Inch, Die Cast Zinc

2546

Liquidtight Strain Relief Cord Connector, 1 Inch, Straight, Cord Range 0.750 to 0.875 Inch, Die Cast Zinc
PG36, Nickel Plated Brass, Nut

236M

PG36, Nickel Plated Brass, Nut
MC Cable Connector, SS, 2 IN NPT, range over jacket 2.600 - 2.7

RTKSS-200-18-LNSS

MC Cable Connector, SS, 2 IN NPT, range over jacket 2.600 - 2.7
Liquidtight Strain Relief Cord Connector, 1 Inch, 90 Degree Bend, Meets Coast Guard CG293, Cord Range 0.625 to 0.750 Inch, Malleable Iron

2256-TB

Liquidtight Strain Relief Cord Connector, 1 Inch, 90 Degree Bend, Meets Coast Guard CG293, Cord Range 0.625 to 0.750 Inch, Malleable Iron
Liquidtight Strain Relief Cord Connector, 3/4 Inch, 45 Degree Bend, Meets Coast Guard CG293, Cord Range 0.625 to 0.750 Inch, Malleable Iron

2210-TB

Liquidtight Strain Relief Cord Connector, 3/4 Inch, 45 Degree Bend, Meets Coast Guard CG293, Cord Range 0.625 to 0.750 Inch, Malleable Iron
NP Brass Cable Gland M16 Size 3, 4-8mm Range, Long Thread

BCG-M163-L

NP Brass Cable Gland M16 Size 3, 4-8mm Range, Long Thread
Non Armoured Cable Gland with Strain Relief, Thread Size M20, Cable Range 10 to 14mm, Thread Length 15mm, Nylon, Black

NCGS-M203B-L

Non Armoured Cable Gland with Strain Relief, Thread Size M20, Cable Range 10 to 14mm, Thread Length 15mm, Nylon, Black
Non Armoured Cable Gland for Food and Beverage, Thread Size 1/2 Inch NPT, Cable Range 6 to 12mm, Thread Length 10mm, Stainless Steel

FSCG-0501

Non Armoured Cable Gland for Food and Beverage, Thread Size 1/2 Inch NPT, Cable Range 6 to 12mm, Thread Length 10mm, Stainless Steel

Frequently Asked Questions

What are the nominal dimensions of the 2253-TB?

The nominal dimensions for 2253-TB are A: 0.594 in, B: 1.969 in, C: 1.495 in, W1: 1.375 in, W2: 1.495 in.

What installation step is required for the 2253-TB?

For the 2253-TB, sufficient outer jacket of the cable joint must be removed to allow conductors to pass through the fitting body.

What certifications does the 2253-TB cable gland hold?

The 2253-TB conforms to UL514B, CSA C22.2-18.3, ANSI C33.84, NFPA 70 (ANSI), and RoHS 2011/65/EU.

What is the operating temperature range for the 2253-TB?

The 2253-TB cable gland has a working temperature range of -20 to +105C (-4 to +221F).

What is the NPT thread size for the 2253-TB cable gland?

The 2253-TB cable gland has a 3/4 NPT thread size.

What is the cable range for product 2253-TB?

Product 2253-TB accommodates a cable range from 0.750 inches (19.05 mm) to 0.880 inches (22.35 mm).

What is the NPT thread size for the 2253-TB cable gland?

The 2253-TB cable gland has a 3/4 NPT thread size.

What are the nominal dimensions of the 2253-TB?

The nominal dimensions for 2253-TB are A: 0.594 in, B: 1.969 in, C: 1.495 in, W1: 1.375 in, W2: 1.495 in.

What installation step is required for the 2253-TB?

For the 2253-TB, sufficient outer jacket of the cable joint must be removed to allow conductors to pass through the fitting body.

What certifications does the 2253-TB cable gland hold?

The 2253-TB conforms to UL514B, CSA C22.2-18.3, ANSI C33.84, NFPA 70 (ANSI), and RoHS 2011/65/EU.
