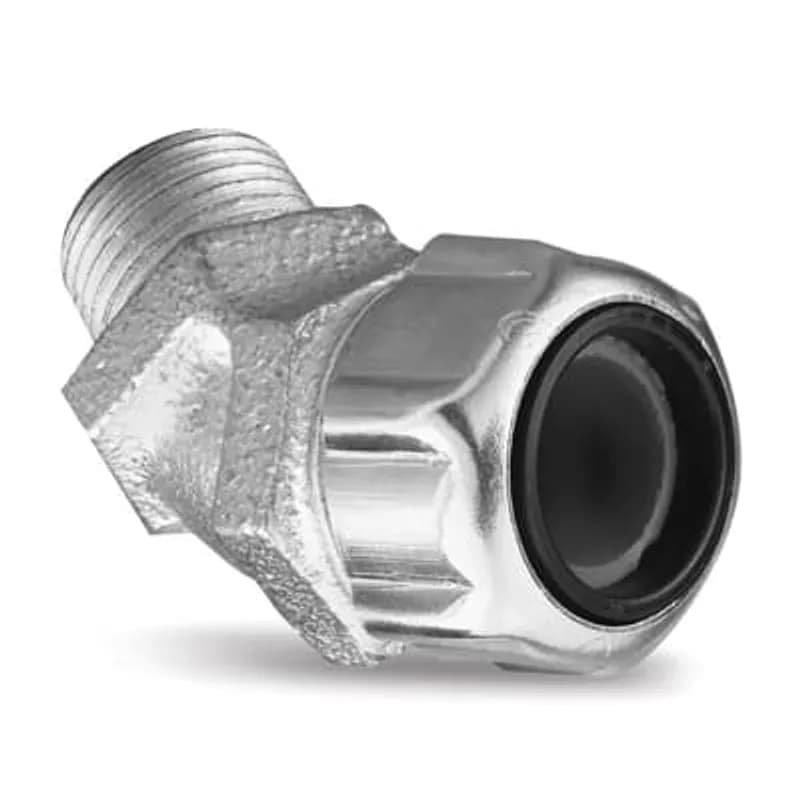

ABB - Installation Products 2201 - Liquidtight Strain Relief Cord Connector, 1/2 Inch, 45 Degree Bend, Meets Coast Guard CG293, Cord Range 0.250 to 0.375 Inch, Malleable Iron

ABB Installation Products 2201 Liquidtight Strain Relief Cord Connector, 1/2 Inch, 45 Degree Bend, Meets Coast Guard…

UPC: 786210022017


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Minimum Qty: 25

Multiplier: 25

*Contact for lower quantities*

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 2201 liquidtight strain relief cord connector is a 1/2-inch, 45-degree bend fitting constructed from durable malleable iron, designed to provide secure strain relief for electrical cords in demanding industrial and marine environments. This connector accommodates a cord diameter range of 0.250 to 0.375 inches, ensuring a tight and protected fit for a variety of cable sizes commonly used in control panels, machinery, and equipment installations. Key specifications include a 1/2-inch trade size hub with a 0.55-inch throat diameter, optimized for reliable performance in applications requiring liquidtight protection. The 45-degree bend design allows for angled cable entry, reducing stress on the cable and preventing sharp bends that could compromise electrical integrity. The malleable iron construction delivers robust durability, resisting corrosion and mechanical damage in harsh operating conditions. The liquidtight design prevents ingress of moisture and particulates, safeguarding electrical connections in challenging environments such as shipboard systems, dockside equipment, and coastal industrial facilities. This connector is part of ABB’s Installation Products line, engineered for use in industrial control panels, machinery enclosures, and field installations where secure, long-lasting cable strain relief is required. The 2201 model is specifically suited for applications where a 45-degree cable entry angle is preferred, such as in tight or confined spaces where straight-entry fittings are impractical. The connector’s design ensures consistent strain relief, reducing the risk of cable pull-out or damage due to vibration or movement.
  • 1/2" trade size hub with 0.55" throat diameter
  • 45-degree bend design for angled cable entry
  • Accommodates cord diameters from 0.250" to 0.375"
  • Malleable iron construction for durability in harsh environments
  • Meets Coast Guard CG293 standards for marine/offshore applications

Specifications

Material
Malleable Iron
Size
1/2 Inch
Package Dimensions (L x W x H)
6 IN x 4.5 IN x 3 IN
Package Dimensions (L x W x H)
15.24 cm x 11.43 cm x 7.62 cm
Package Weight (Imperial)
0.2500 L
Package Weight (Metric)
0.1130 kg
MC Cable Connector, alum, 3/4" NPT, range over jacket .955 - 1.080, range over armor .845 - 1.00

RTK-075-5

MC Cable Connector, alum, 3/4" NPT, range over jacket .955 - 1.080, range over armor .845 - 1.00
Liquidtight Strain Relief Cord Connector, 3/4 Inch, 90 Degree Bend, Meets Coast Guard CG293, Cord Range 0.125 to 0.250 Inch, Malleable Iron

2252

Liquidtight Strain Relief Cord Connector, 3/4 Inch, 90 Degree Bend, Meets Coast Guard CG293, Cord Range 0.125 to 0.250 Inch, Malleable Iron
Liquidtight Strain Relief Cord Connector, 1/2 Inch, 45 Degree Bend, Meets Coast Guard CG293, Cord Range 0.500 to 0.625 Inch, Malleable Iron.

2204

Liquidtight Strain Relief Cord Connector, 1/2 Inch, 45 Degree Bend, Meets Coast Guard CG293, Cord Range 0.500 to 0.625 Inch, Malleable Iron.
Liquidtight Strain Relief Cord Connector, 1/2 Inch, 45 Degree Bend, Meets Coast Guard CG293, Cord Range 0.375 to 0.500 Inch, Malleable Iron

2202

Liquidtight Strain Relief Cord Connector, 1/2 Inch, 45 Degree Bend, Meets Coast Guard CG293, Cord Range 0.375 to 0.500 Inch, Malleable Iron
Liquidtight Strain Relief Cord Connector, 3/4 Inch, 45 Degree Bend, Meets Coast Guard CG293, Cord Range 0.500 to 0.625 Inch, Malleable Iron.

2209

Liquidtight Strain Relief Cord Connector, 3/4 Inch, 45 Degree Bend, Meets Coast Guard CG293, Cord Range 0.500 to 0.625 Inch, Malleable Iron.
Liquidtight Strain Relief Cord Connector, 45 Degree Bend, 3/4 Inch NPT Threads, IP65 Rating, Cord Range 0.250 to 0.375 Inch, Malleable Iron

2207-TB

Liquidtight Strain Relief Cord Connector, 45 Degree Bend, 3/4 Inch NPT Threads, IP65 Rating, Cord Range 0.250 to 0.375 Inch, Malleable Iron
Liquidtight Strain Relief Cord Connector, 1 Inch, 45 Degree Bend, Meets Coast Guard CG293, Cord Range 0.625 to 0.750 Inch, Malleable Iron

2215

Liquidtight Strain Relief Cord Connector, 1 Inch, 45 Degree Bend, Meets Coast Guard CG293, Cord Range 0.625 to 0.750 Inch, Malleable Iron
Liquidtight Strain Relief Cord Connector, 45 Degree Bend, 3/4 Inch NPT Threads, IP65 Rating, Cord Range 0.375 to 0.500 Inch, Malleable Iron

2208-TB

Liquidtight Strain Relief Cord Connector, 45 Degree Bend, 3/4 Inch NPT Threads, IP65 Rating, Cord Range 0.375 to 0.500 Inch, Malleable Iron

Frequently Asked Questions

What are the nominal dimensions of Product 2201?

Product 2201 has nominal dimensions: A 17.48 mm (0.688 in), B 32.54 mm (1.281 in), C 30.18 mm (1.188 in), W1 27.00 mm (1.063 in), W2 30.99 mm (1.220 in).

What is the NPT thread size for Product 2201?

The NPT thread size for Product 2201 is 1/2.

What is the cable range for Product 2201?

Product 2201 accommodates cables with a minimum diameter of 6.35 mm (0.250 in) and a maximum diameter of 9.53 mm (0.375 in).

What are the nominal dimensions of Product 2201?

Product 2201 has nominal dimensions: A 17.48 mm (0.688 in), B 32.54 mm (1.281 in), C 30.18 mm (1.188 in), W1 27.00 mm (1.063 in), W2 30.99 mm (1.220 in).

What is the NPT thread size for Product 2201?

The NPT thread size for Product 2201 is 1/2.

What is the cable range for Product 2201?

Product 2201 accommodates cables with a minimum diameter of 6.35 mm (0.250 in) and a maximum diameter of 9.53 mm (0.375 in).

What are the nominal dimensions of Product 2201?

Product 2201 has nominal dimensions: A 17.48 mm (0.688 in), B 32.54 mm (1.281 in), C 30.18 mm (1.188 in), W1 27.00 mm (1.063 in), W2 30.99 mm (1.220 in).

What is the NPT thread size for Product 2201?

The NPT thread size for Product 2201 is 1/2.

What is the cable range for Product 2201?

Product 2201 accommodates cables with a minimum diameter of 6.35 mm (0.250 in) and a maximum diameter of 9.53 mm (0.375 in).

What is the NPT thread size for Product 2201?

The NPT thread size for Product 2201 is 1/2.
