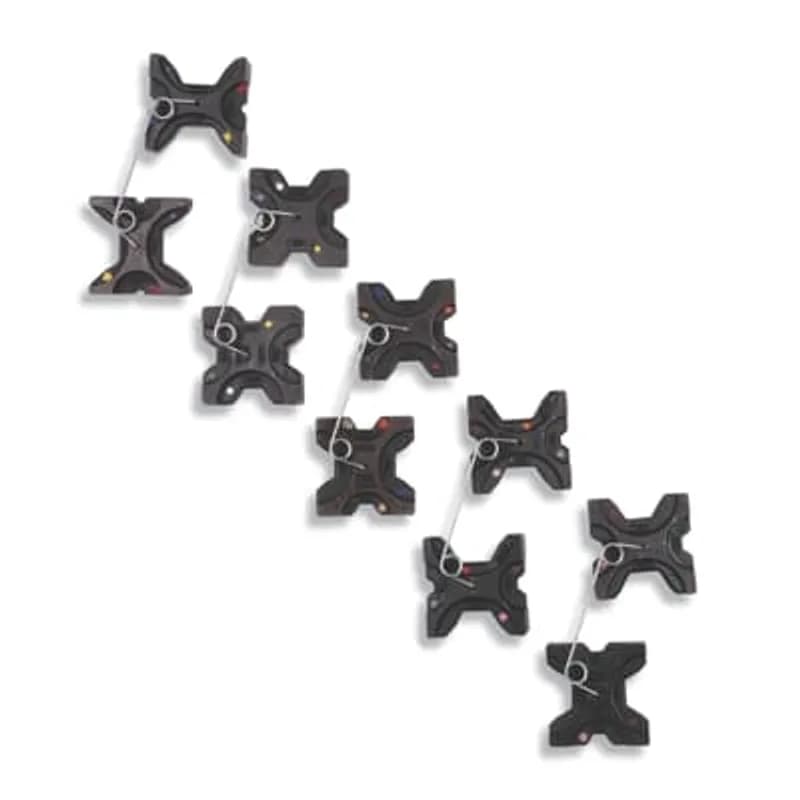

ABB - Installation Products 21732 - Indent Syle Die for Flag Type Terminal - Indentor Die Terminal Size G,H,J,K,L,M, Wire Size 2,1,1/0,2/0,3/0,4/0
ABB - Installation Products

21732

UPC: 786210217321

Documents & Media
Manufacturer Product Website

Contact for Pricing

Overview

The ABB 21732 Indent Style Die is a specialized tooling component designed for use with flag type terminals. Manufactured by ABB Installation Products, this die is engineered to provide precise and reliable crimping for a range of terminal sizes and wire gauges. Specifically, it accommodates terminal sizes G, H, J, K, L, and M. The compatible wire sizes for this die include 2 AWG, 1 AWG, 1/0 AWG, 2/0 AWG, 3/0 AWG, and 4/0 AWG. This broad compatibility ensures versatility for various electrical connection applications. The indent style of the die ensures a secure mechanical connection, crucial for maintaining electrical integrity and preventing failures in demanding industrial environments. Proper application of this die by qualified personnel will result in robust and long-lasting electrical terminations. The SKU 21732 is a key component in ensuring the quality and performance of electrical connections when used with the appropriate ABB flag type terminals and compatible crimping tools. Its design focuses on delivering consistent results across the specified range of terminal and wire sizes, making it an essential tool for electrical contractors, maintenance professionals, and panel builders working with medium to heavy gauge conductors. The UNSPSC code for this product is 27112820, categorizing it within electrical connectors and accessories.
  • Designed for ABB flag type terminals
  • Accommodates terminal sizes G, H, J, K, L, M
  • Compatible with wire sizes 2, 1, 1/0, 2/0, 3/0, 4/0 AWG
  • Indent style for secure mechanical crimping
  • Manufactured by ABB Installation Products

Specifications

Application
Indent Syle Die for Flag Type Terminal - Indentor Die Terminal Size G,H,J,K,L,M
Size
Wire Size 2,1,1/0,2/0,3/0,4/0
Type
Die
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.5000 L
Package Weight (Metric)
0.2270 kg
