Contact for Pricing
Minimum Qty: 10
Multiplier: 10
*Contact for lower quantities*

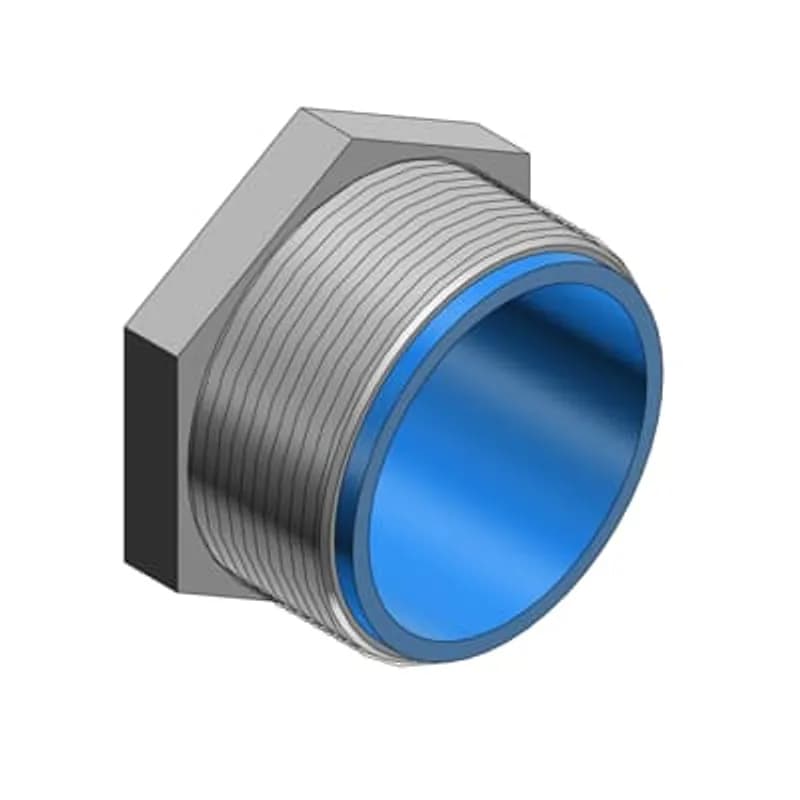

Overview
- Constructed from durable malleable iron for robust protection.
- Features nylon insulation to protect conductor insulation.
- Designed for 1-1/4 inch trade size conduit.
- Compatible with Rigid and Intermediate Metal Conduit (IMC).
- Facilitates secure conduit connections and wire pulling.
Specifications
Application | To Effectively Bush Factory or Field-Punched, Cut, or Drilled Holes In Metal Boxes or Enclosures. To Couple Boxes Back-to-Back |
Material | Malleable Iron |
Material | Malleable Iron, Nylon |
Size | 1-1/4 Inch |
Size | 1-1/4 in |
Standard | UL E23018, CSA |
Type | 1945 INS. CHASE NIPPLE |
Package Dimensions (L x W x H) | 4.5 IN x 5 IN x 3 IN |
Package Dimensions (L x W x H) | 11.43 cm x 12.7 cm x 7.62 cm |
Package Weight (Imperial) | 0.1600 L |
Package Weight (Metric) | 0.0730 kg |
Frequently Asked Questions
What is the trade size of the 1945 chase nipple?
The 1945 chase nipple has a trade size of 1 1/4 inches.
Does the document include metric unit dimensions?
Yes, dimensions enclosed in brackets [ ] within the document are in metric units.
Are the dimensions in the drawing exact measurements?
No, all dimensions provided in the drawing are for reference purposes only.
How do I order fittings with a Dura-Plate finish?
To order Dura-Plate fittings, you must prefix the catalog number with "040-".
What is the standard finish for these chase nipples?
The standard finish for these chase nipples is Zinc Plate.
What material is the 1945 chase nipple made from?
The 1945 chase nipple is made from Malleable Iron.
How do I order fittings with a Dura-Plate finish?
To order Dura-Plate fittings, you must prefix the catalog number with "040-".
Are the dimensions in the drawing exact measurements?
No, all dimensions provided in the drawing are for reference purposes only.
Does the document include metric unit dimensions?
Yes, dimensions enclosed in brackets [ ] within the document are in metric units.
What is the trade size of the 1945 chase nipple?
The 1945 chase nipple has a trade size of 1 1/4 inches.
