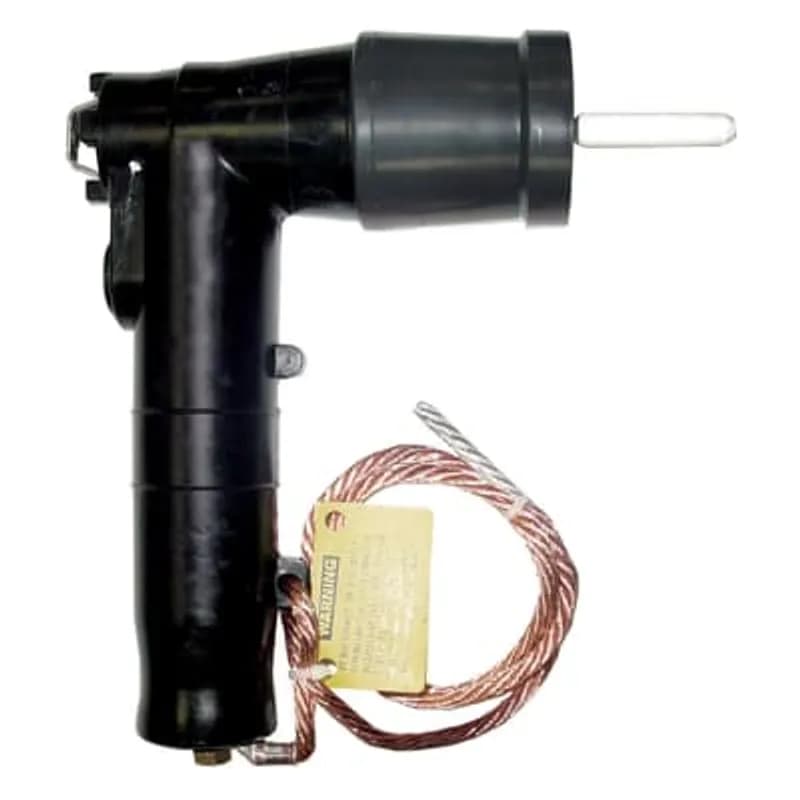

Overview
- 15kV rated voltage with MCOV of 2.55 kV RMS for reliable overvoltage protection
- 600A current rating suitable for medium-voltage distribution systems
- Shielded elbow design enables compact installation in enclosed switchgear
- Metal-oxide technology with temporary overvoltage (TOV) capability (0.01s to 10,000s)
- Designed for systems where line-to-ground voltage does not exceed MCOV under normal conditions
Specifications
Amperage Rating | 200 A |
Application | Provide High Voltage Lightning and Switching Surge Protection of Tranformers, Cable, Equipment and other Components typically Located on Underground Power Distribution Systems |
Insulation | True |
Material | EPDM Molded Rubber |
Series | ESA Elbow Surge Arrester |
Special Features | EPDM Rubber Construction - Fully Shielded and Fully Submersible for a Variety of Applications. IEEE 386 Interfaces Provide Convenient Energized Connection with other 200 Amp Loadbreak or Deadbreak Components. Compact Size Enables Installation in your Existing Cabinetry, Saving you Money. Number 4 AWG Ground Lead Tethered to the Jacket Withstands 10,000 Amps for 10 Cycles without Fusing. Ground Lead Also Controls ENd Plug when Ejected, Preventing Uncontrolled Trajectory and Maintains the Housing Shield Ground Connection After Failure |
Type | Elbow Surge Arrester |
Voltage Rating | 15 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 3.3700 L |
Package Weight (Metric) | 1.5290 kg |
Frequently Asked Questions
What is the maximum continuous operating voltage (MCOV) for the 167ESA-3?
The Maximum Continuous Operating Voltage (MCOV) RMS for the ABB 167ESA-3 Shielded Elbow Surge Arrester is 2.55 kV.
What is the voltage rating of the ABB 167ESA-3 surge arrester?
The ABB 167ESA-3 Shielded Elbow Surge Arrester has a voltage rating of 15kV.
What type of surge arrester is the ABB 167ESA-3?
The ABB 167ESA-3 is a Shielded Elbow Surge Arrester.
Who is the manufacturer of the 167ESA-3 surge arrester?
The manufacturer of the 167ESA-3 Shielded Elbow Surge Arrester is ABB - Installation Products.
