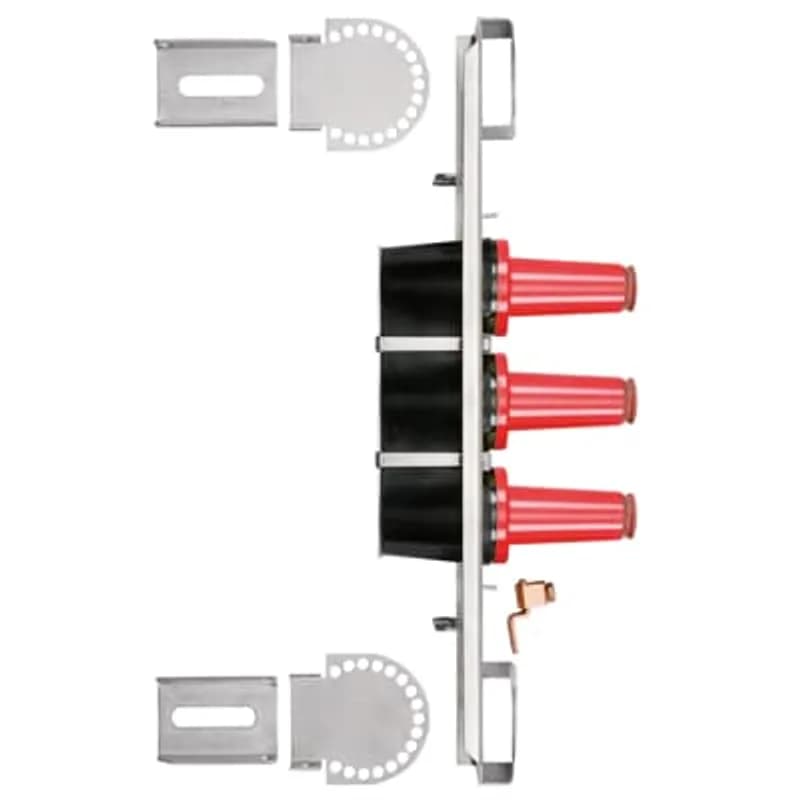

164J3V

To order the 164J3 junction with "U" style mounting straps, add "-5" at the end of the catalog number.

The 164J3 is a 15kV, 200 Amp Loadbreak 3-Way Junction, providing sectionalizing, looping, tapping, and equipment bypass capabilities.

It is suitable for 15kV class distribution systems. The operating voltage is 8.3kV phase-to-ground, with a maximum phase-to-phase of 14.4kV.

The 164J3 junction is rated for 200 Amp continuous and loadbreak operation.

It features a fully shielded, fully submersible molded rubber housing with 100% peroxide-cured insulation and conductive EPDM materials.

It is designed for subsurface, vault, or padmount applications, useful for sectionalizing, looping, tapping, and equipment bypass.

It mates with 15kV Family of Elbow Connectors, 160GLR Grounding Elbow, 370TR Test Rod, 160DR/DRG Insulated Cap, and 167/168DRG Insulated Cap.

It includes stainless steel mounting brackets and hardware for flat or curved surfaces, allowing tilt angles from 0° to 90° in 15° increments.

Yes, the 164J3 junction meets ANSI/IEEE Standard 386, Latest Revision.

The impulse withstand (BIL) rating for the 164J3 is 95kV (1.2 x 50 microsecond wave).
