Contact for Pricing
Overview

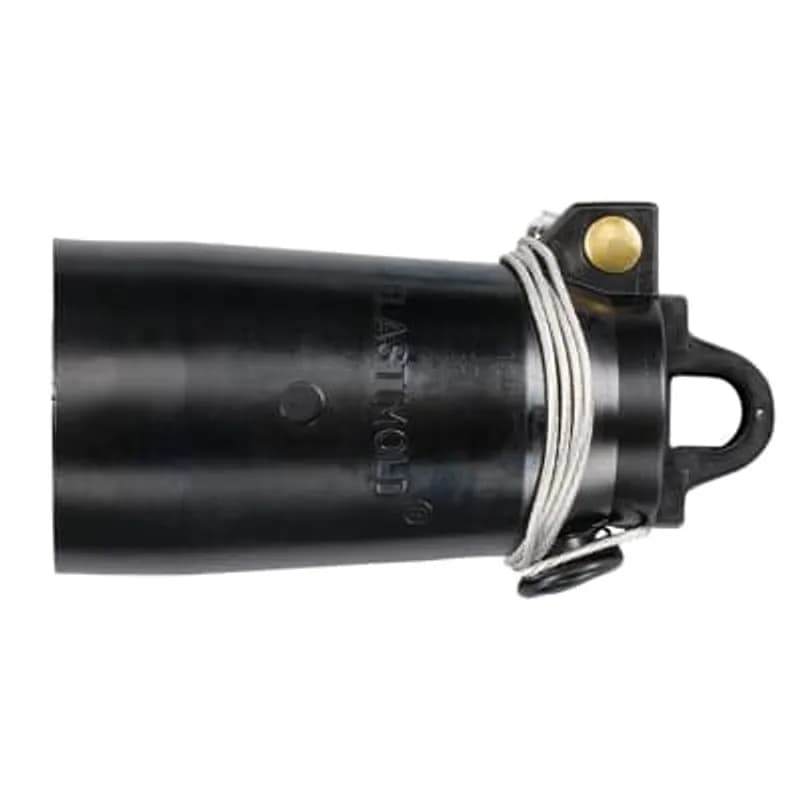

- 15kV, 200 Amp loadbreak-rated insulated cap for medium-voltage systems
- Fully shielded, fully submersible, hot stick operable design
- Integrated #14 AWG ground lead with attached alligator clip
- Meets ANSI/IEEE Standard 386 with 95kV BIL impulse withstand
- Compatible with Elastimold 1601A4, 164FT, 1602A3R, and 164 series junctions
Specifications
Application | 15 kV, 200 Amps |
Connection Type | Alligator Clip |
Current Rating | 200 A |
Material | Insulated |
Series | 160 Series |
Temperature Rating, Maximum | 149 F |
Temperature Rating, Maximum | 65 C |
Temperature Rating, Minimum | -40 F |
Temperature Rating, Minimum | -40 C |
Type | Insulated Cap |
Voltage Rating | 15 kV |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 1.5000 L |
Package Weight (Metric) | 0.6800 kg |
K675TBC
15/25kV, 900 Amp, Deadbreak Bushing for In-Air Applications (Pad-Mounted or Vault-Type or Submersible Transformers or Switchgear). One Factory installed 5/8-11 UNC-2A Stud included, other Stud must be Purchased Separately. Overall Length 13.75 inch, Diameter 4.50 inch. Molded Epoxy with Stainless Steel Flange. Boot and Collar.
SMB
Support Mounting Bracket for use with Molded Current-Limiting Fuse Models 6E2 or 6E6 End-fitting arrangements, includes Bolted-Style Hold-Down Strap.
J4-6666-35
4 Point Junction, with four 600 Amp Bushing Interfaces, 35kV, 4 inch centers. No Tilt Mounting.
K656LR-K2330
15/25kV 600 Amp Series Deadbreak Elbow with Test Point (with Insulated Plug, Cap, Stud, Lug and Cable Adapter), Copper Compression Lug. Cable Insulation Diameter 1.090 inch to 1.310 inch. Conductor Size Compressed/Stranded 500 or Compact/Solid 600 or mm2 Compact 250/300.
J3-666-15-SV-TMA
3 Point Junction, Three - 600 Amp Bushing Interface, 15KV, with Bracket, SV - Optional 6-1/2 inch spacing, TMA - Tilt Mounting Adapter which Allows for 15 or 30 or 45 or 60 Degree Adjustable Angle Mounting.Frequently Asked Questions
What are the key features of the 160DRG insulated cap?
It is a fully shielded, fully submersible, hot stick operable, separable insulated connector designed for energized operation, including an integral ground lead.
What is the one-minute AC withstand voltage?
The one-minute AC withstand voltage for the 160DRG is 34kV.
What items are included in the 160DRG kit?
Each kit contains one 160DRG insulated cap, one 82-08 lubricant, and one IS-0892 installation instruction.
What is the momentary and fault close current rating?
The momentary and fault close current rating for the 160DRG is 10kA Symmetrical for 10 cycles.
What is the continuous and loadbreak current rating?
The 160DRG has a continuous and loadbreak current rating of 200 Amp.
What is the corona extinction voltage?
The corona extinction voltage for the 160DRG is 11kV AC at 3pC sensitivity.
What is the 15-minute DC withstand voltage?
The 15-minute DC withstand voltage for the 160DRG is 53kV.
What is the Basic Impulse Level (BIL) withstand rating?
The 160DRG has a 95kV BIL impulse withstand rating (1.2 x 50 microsecond wave).
What is the maximum phase-to-phase operating voltage?
The maximum phase-to-phase operating voltage for the 160DRG is 14.4kV.
What is the maximum phase-to-ground operating voltage?
The maximum phase-to-ground operating voltage for the 160DRG is 8.3kV.
How to Install the 160DRG/167DRG Insulated Cap
This guide details the installation of the 160DRG and 167DRG insulated caps, designed for insulating, shielding, and watersealing ELASTIMOLD 15kV class loadbreak bushing interfaces. Ensure all apparatus is de-energized before beginning installation.
Estimated time: 15m
Tools needed:
Hotstick
Supplies needed:
160DRG/167DRG Insulated Cap with Ground Lead, Lubricant
- Connect Grounding Wire
Connect the free end of the electrostatic grounding wire to the system ground. Leave enough slack for hot-stick operation of the insulated cap. Train the electrostatic grounding wire so it does not contact the bushing interface during operation.
- Prepare Insulated Cap
Remove the protective cover from the insulated cap. Lubricate the cap’s internal mating surface using only the supplied lubricant or ELASTIMOLD approved lubricants; do not substitute. Keep the internal mating surface free from dirt and grime. Always replace the protective cover when the cap is not in use.
- Install Insulated Cap onto Bushing
Firmly attach a hotstick to the insulated cap pulling eye. Insert the male contact of the insulated cap into the loadbreak bushing, and push it home with a fast, firm, straight motion. Make certain the cap is fully mated, with the locking ring seated. Detach the hotstick from the insulated cap.
