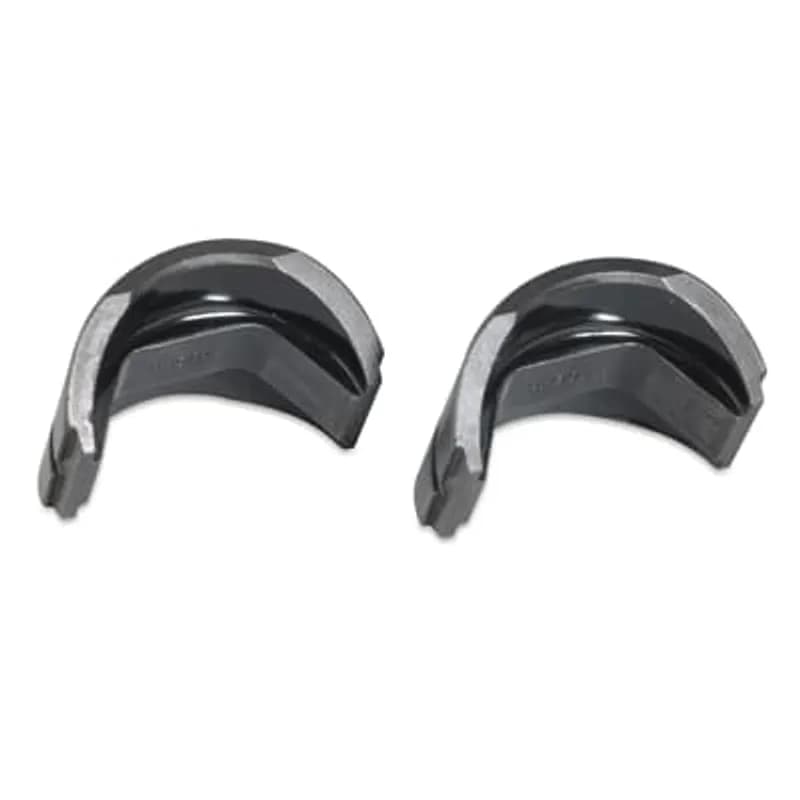

ABB Installation Products 15615X 15 Ton Full Size Hex Flex Die for Crimping Flex Conductors, Die Color Black, Die Code…

The 15615X die is designed for use with ABB’s TBM151 and BPLT15BSCR hydraulic crimping tools.

The die is made from high-grade tool steel with a black oxide finish for enhanced durability and corrosion resistance.

No, dies are sold separately in halves. A complete die set requires one indentor (e.g., 15500X) and one die half (e.g., 15615X).

This die is designed for 1600/24 flex conductor classes G, H, I, K, and M. Refer to ABB’s connector sales drawings for UL-listed applications.

The die dimensions are A: 1.593", B: 0.690", W: 0.625", and G: 0.650".

Each die is color-coded and labeled with a die code (e.g., 106X for black). Match the die code to your flex conductor size and tool compatibility.

Yes, but refer to ABB’s connector sales drawings for specific UL-listed applications and requirements.
