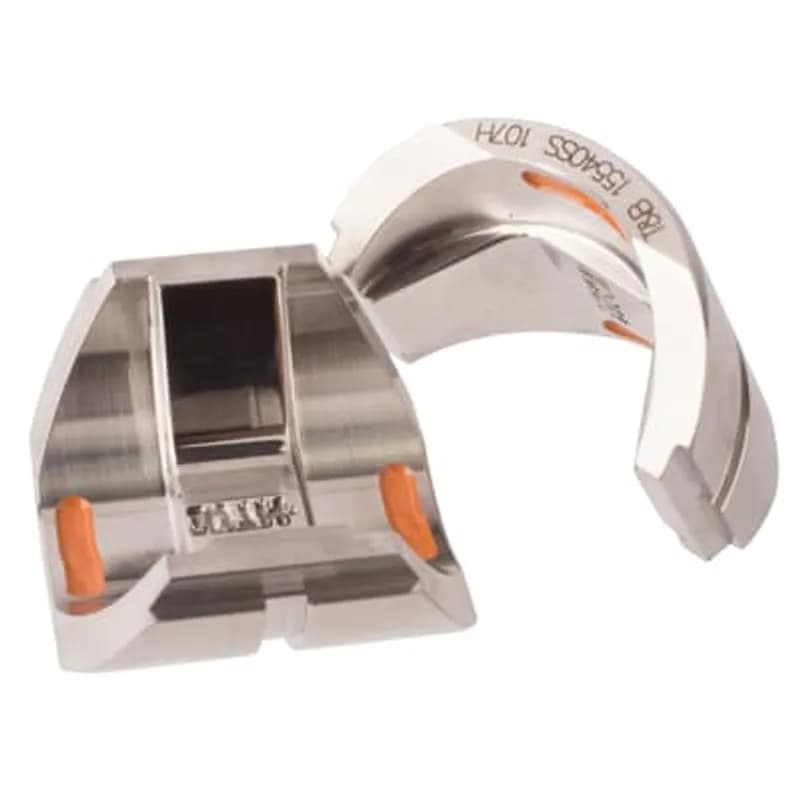

ABB - Installation Products 15540SS - Die for 12-14 Ton Tools for 800 kcmil CU, Die Color Orange, Die Code 107H
ABB - Installation Products

15540SS

UPC: 786209883902

Documents & Media
Manufacturer Product Website

Contact for Pricing

Overview

This ABB 15540SS die is specifically designed for use with 12-14 ton crimping tools, ensuring precise and reliable connections for 800 kcmil copper (CU) conductors. The die features a distinct orange color coding, a standard industry practice that aids in quick identification and selection for specific conductor sizes and tool types. This color coding system is crucial for preventing errors during installation, thereby enhancing safety and the integrity of electrical connections. The 107H die code further specifies its compatibility and intended application within the ABB crimping system. Engineered for efficiency and accuracy, this die is essential for electrical contractors, utility workers, and maintenance personnel who require dependable termination of large gauge copper conductors. Proper die selection is paramount for achieving consistent crimp quality, which directly impacts the long-term performance and safety of electrical infrastructure. The 800 kcmil CU capacity signifies its suitability for high-current applications where robust and secure connections are non-negotiable. Manufacturer: ABB - Installation Products. SKU: 15540SS. UNSPSC Code: 27112820.
  • Designed for 12-14 ton crimping tools
  • Compatible with 800 kcmil copper (CU) conductors
  • Orange color coding for easy identification
  • Die Code: 107H
  • Manufacturer: ABB - Installation Products

Specifications

Application
Crimping Lugs/C-Taps
Color
Orange
Material
Alloy Steel
Special Features
Color-coded for easy matching
Type
Die
Package Dimensions (L x W x H)
1.9 IN x 1.9 IN x 1.6 IN
Package Dimensions (L x W x H)
4.826 cm x 4.826 cm x 4.064 cm
Package Weight (Imperial)
0.4500 L
Package Weight (Metric)
0.2040 kg
