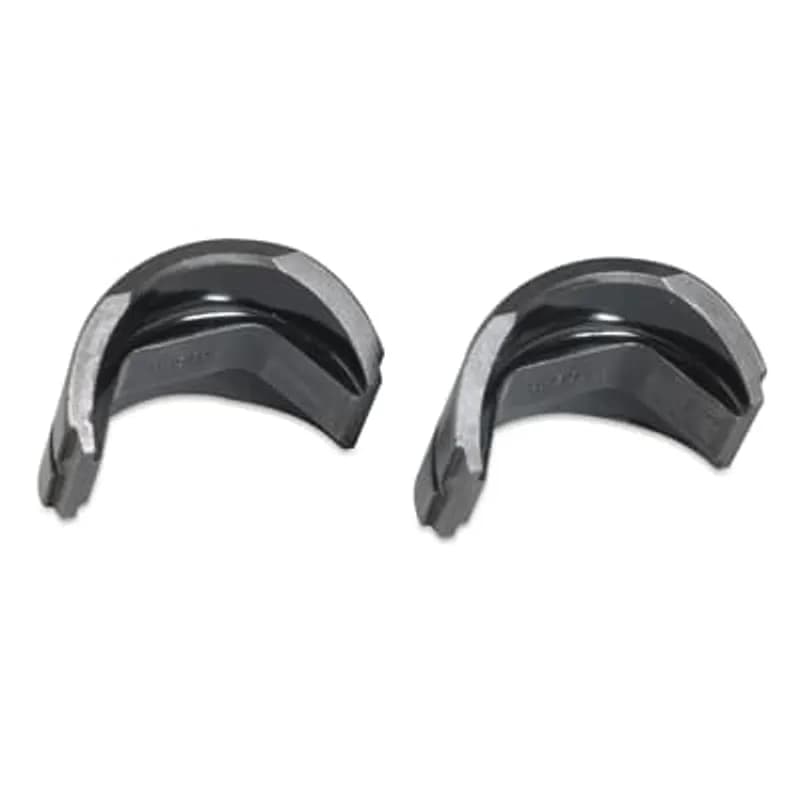

ABB - Installation Products 15532-CK - Die for TBM12PCR-LI, TBM14CR-LI and TBM15CR-LI Tools 3/0 Aluminum, Die Color Ruby, Die Code 60

ABB Installation Products 15532-CK Die for TBM12PCR-LI, TBM14CR-LI and TBM15CR-LI Tools 3/0 Aluminum, Die Color Ruby, Die…

UPC: 786210155326

Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

This ABB 15532-CK die is specifically engineered for use with ABB's TBM12PCR-LI, TBM14CR-LI, and TBM15CR-LI crimping tools. Designed for precise and reliable termination of 3/0 AWG aluminum conductors, this die ensures consistent, high-quality connections essential for electrical installations. The die features a distinct Ruby color coding, corresponding to Die Code 60, which facilitates quick identification and selection for the correct application. This color-coding system is crucial in busy work environments to prevent errors and maintain efficiency during conductor termination processes. Proper die selection is paramount for achieving secure and code-compliant electrical connections. This Ruby die (Code 60) is optimized for the specific tooling and conductor size it is designed for, ensuring the correct crimp profile is applied to the aluminum conductor. This direct compatibility minimizes the risk of under-crimping or over-crimping, both of which can lead to connection failures, increased resistance, and potential safety hazards. The ABB 15532-CK die is a consumable component of the crimping system, and its precise manufacturing by ABB Installation Products guarantees it meets the stringent quality standards expected from the manufacturer.
  • Designed for ABB TBM12PCR-LI, TBM14CR-LI, and TBM15CR-LI crimping tools.
  • Specifically for terminating 3/0 AWG aluminum conductors.
  • Ruby color coding for easy identification (Die Code 60).
  • Ensures precise and reliable conductor terminations.
  • Manufactured by ABB - Installation Products for quality assurance.

Specifications

Application
Crimping Lugs/C-Taps
Color
Black
Material
Steel
Special Features
Color-coded for easy matching
Type
Die
Package Dimensions (L x W x H)
1.25 IN x 5 IN x 5 IN
Package Dimensions (L x W x H)
3.175 cm x 12.7 cm x 12.7 cm
Package Weight (Imperial)
0.6000 L
Package Weight (Metric)
0.2720 kg
12 or 14 Ton Hex Flex Die for Crimping Flex Conductors, 80X Die Code, Black Die Color. High Grade Tool Steel. To use with 15 Ton Tool please buy adaptor 15500-TB.

15517X

12 or 14 Ton Hex Flex Die for Crimping Flex Conductors, 80X Die Code, Black Die Color. High Grade Tool Steel. To use with 15 Ton Tool please buy adaptor 15500-TB.
Die for CA-800 Applicator

CD-800-10

Die for CA-800 Applicator
U-Type Compression Die - Black 2/0 AWG Copper U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.

CD7

U-Type Compression Die - Black 2/0 AWG Copper U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.
Die for TBM12PCR-LI, TBM14CR-LI and TBM15CR-LI Tools for 600 kcmil Copper, 400 kcmil Aluminum, Die Color Green, Die Code 94H

15536-CK

Die for TBM12PCR-LI, TBM14CR-LI and TBM15CR-LI Tools for 600 kcmil Copper, 400 kcmil Aluminum, Die Color Green, Die Code 94H
Copper H-Tap Die for TBM15I/BPLT15BSCR- Connector CHT50010-5 and CHT50040-4, Color Code Brown

15612CH

Copper H-Tap Die for TBM15I/BPLT15BSCR- Connector CHT50010-5 and CHT50040-4, Color Code Brown
High-Voltage Connector Die - Die Code 106R, Adapter Type, Use 15500-TB Adapter with TBM15I

15CA106R

High-Voltage Connector Die - Die Code 106R, Adapter Type, Use 15500-TB Adapter with TBM15I
Figure 6 and Figure 8 Die Connector Element A and B - Connector 54865L and 54875L, Cable Element A #1 Str. - 250 kcmil and #2 Str. - 250 kcmil, Cable Element B #2 Str.- 250 kcmil, Ground Rod B 1/2 Inch- 5/8 Inch Rod, Rebar Element B 3/8 Inch-1/2 Inch - #3 - #4 Rebar

15G86R

Figure 6 and Figure 8 Die Connector Element A and B - Connector 54865L and 54875L, Cable Element A #1 Str. - 250 kcmil and #2 Str. - 250 kcmil, Cable Element B #2 Str.- 250 kcmil, Ground Rod B 1/2 Inch- 5/8 Inch Rod, Rebar Element B 3/8 Inch-1/2 Inch - #3 - #4 Rebar
Die for 14 Ton 13100A or 15 Ton TBM15i Hydraulic Tool for Crimping 204210S, 204210 1H, 204210 3H Dragon Tooth Terminals

13673B

Die for 14 Ton 13100A or 15 Ton TBM15i Hydraulic Tool for Crimping 204210S, 204210 1H, 204210 3H Dragon Tooth Terminals
