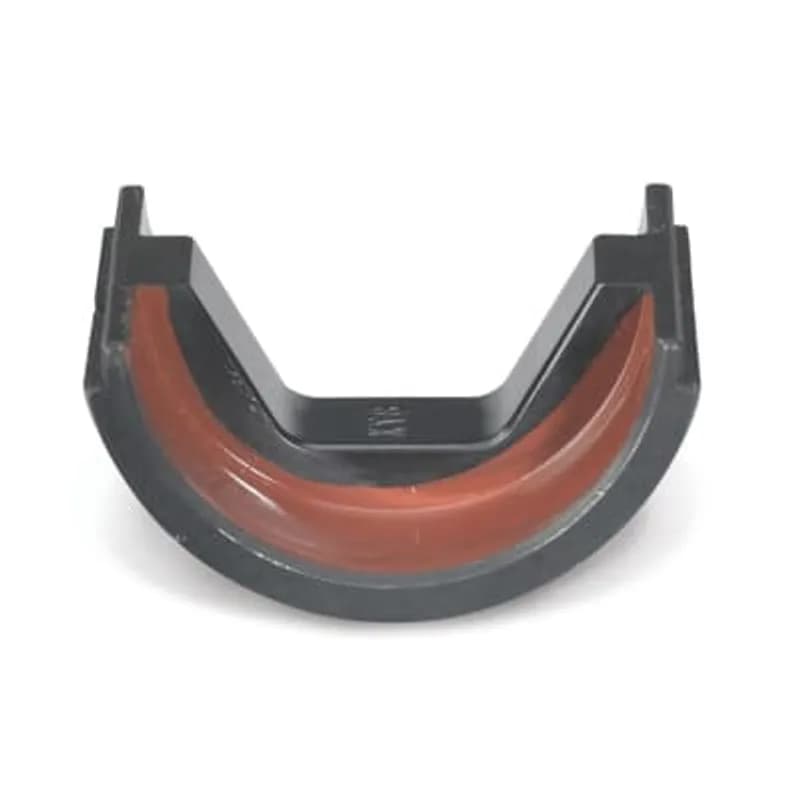

ABB - Installation Products 15506X - 12 or 14 Ton Hex Flex Die for Crimping Flex Conductors, 87X Die Code, Brown Die Color. High Grade Tool Steel. To use with 15 Ton Tool please buy adaptor 15500-TB.

ABB Installation Products 15506X 12 or 14 Ton Hex Flex Die for Crimping Flex Conductors, 87X Die Code, Brown Die Color.…

UPC: 786209923370


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 15506X Hex Flex Die is a precision-engineered lower die half designed for terminating flexible conductors in medium to heavy-duty applications. This die features an 87X die code and is color-coded brown for quick identification and setup. Constructed from high-grade tool steel, it delivers consistent, reliable crimp performance across a range of conductor sizes, ensuring secure electrical connections and long-term mechanical integrity. Engineered for compatibility with ABB’s 12 or 14-ton crimping tools, the 15506X die is part of the Installation Products line. When paired with the 15500-TB adapter, it integrates seamlessly with ABB’s 15-ton crimping tools, offering flexibility for operators handling multiple conductor sizes. The hex flex design accommodates a broad spectrum of conductor diameters, making it ideal for power distribution, motor control centers, switchgear, and renewable energy systems. Key specifications include a die code of 87X, brown color coding, and dimensions optimized for 500 NAVY or similar flex conductor classes (G, H, I, K, M). The die is designed for use with hydraulic tools such as the TBM151 and BPLT15BSCR, ensuring compatibility with industry-standard equipment. Its robust construction minimizes conductor slippage and poor electrical contact, reducing downtime and maintenance costs in high-volume crimping operations. The 15506X die is sold separately as a lower die half and must be paired with the 15500X upper indentor to form a complete die set. This modular design allows for easy replacement and scalability, supporting a wide range of conductor sizes and applications. Trust ABB’s Installation Products for precision, durability, and performance in every crimp.
  • Designed for 12/14-ton crimping tools with 15500-TB adapter compatibility for 15-ton tools
  • 87X die code with brown color coding for quick identification
  • High-grade tool steel construction for durability and consistent crimp performance
  • Optimized for 500 NAVY or similar flex conductor classes (G, H, I, K, M)
  • Compatible with hydraulic tools: TBM151, BPLT15BSCR

Specifications

Capacity
14 ton
Color
Brown
Material
Steel
Material
High-grade tool steel
Series
Installation Products
Type
Die
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
0.1900 L
Package Weight (Metric)
0.0860 kg
15 Ton Full Hex Die for TBM15PF - Die Color Brown, Die Code 87H

15506F

15 Ton Full Hex Die for TBM15PF - Die Color Brown, Die Code 87H
U-Type Compression Die - Brown 500 MCM Copper - 350 MCM Aluminum U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.

CD18A

U-Type Compression Die - Brown 500 MCM Copper - 350 MCM Aluminum U-Shaped Compression Dies are for use with the NSi-12 Compression Tool and Other Tools. See Cross-Reference Chart below.
Crimp die for CT-920 and CT-930, Brown PH2.

CD-920H-2

Crimp die for CT-920 and CT-930, Brown PH2.
Hex Flex Die for TBM62BSCR - Copper Code 4/0 AWG, Flex/24 450/24, Color/Die Code Purple 54X

TBM6254X

Hex Flex Die for TBM62BSCR - Copper Code 4/0 AWG, Flex/24 450/24, Color/Die Code Purple 54X
Die for BPLT62BSCR and BPLT6500BSCR Tool for 500 kcmil CU

TBM6280

Die for BPLT62BSCR and BPLT6500BSCR Tool for 500 kcmil CU
15 Ton Full Size Hex Flex Die for Crimping Flex Conductors, Die Color Yellow, Die Code 115X. High Grade Tool Steel with Black Oxide Finish. Use with Hydraulic Tools TBM151 and BPLT15BSCR.

15604X

15 Ton Full Size Hex Flex Die for Crimping Flex Conductors, Die Color Yellow, Die Code 115X. High Grade Tool Steel with Black Oxide Finish. Use with Hydraulic Tools TBM151 and BPLT15BSCR.
Steel 14 Ton Hex Metric Die for Installing 400 millimeters squared

MCD400-14

Steel 14 Ton Hex Metric Die for Installing 400 millimeters squared
Blue Die for Bench Press EBP22-10, used to crimp plastic strip terminals with Wire Range 16-14

BAH16-14

Blue Die for Bench Press EBP22-10, used to crimp plastic strip terminals with Wire Range 16-14

Frequently Asked Questions

What is the material of the 15506X die?

The 15506X die is constructed from high-grade tool steel for durability and precision.

What is the die code for the 15506X?

The die code for the 15506X is 87X.

What is the color coding for the 15506X die?

The 15506X die is color-coded brown for easy identification.

What conductor sizes is the 15506X die compatible with?

The 15506X die is designed for 500 NAVY flex conductors and similar sizes in classes G, H, I, K, and M.

Is the 15506X die sold as a complete set?

No, the 15506X die is sold as a lower die half and must be paired with the 15500X upper indentor.
