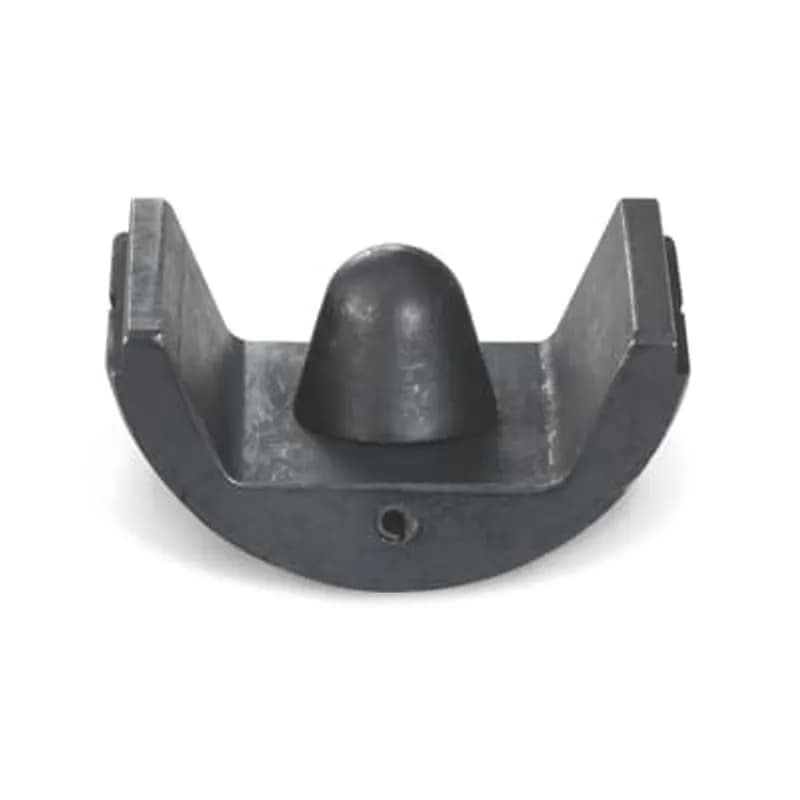

ABB Installation Products 15500X 15 Ton Shell Die Indentor, for Crimping 4/0 Weld, 550/24 Wire Sizes. Upper Indentor…
UPC: 786209923264
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- 15 Ton Crimping Capacity
- Designed for 4/0 Weld Wire
- Compatible with 550/24 Wire Sizes
- Requires 15500-TB Adapter for 15 Ton Heads
- ABB - Installation Products Manufacturer
Specifications
Capacity | 15 ton |
Material | Steel |
Series | 15500X |
Size | 4/0 welded, wire size 550/24 |
Size | 4/0 Weld, 550/24 Wire Sizes |
Type | Die |
Package Dimensions (L x W x H) | 0.01 IN x 0.01 IN x 0.01 IN |
Package Dimensions (L x W x H) | 0.0254 cm x 0.0254 cm x 0.0254 cm |
Package Weight (Imperial) | 0.2200 L |
Package Weight (Metric) | 0.1000 kg |
13682
Die for 12 Ton 13400 or 13642M Hydrualic Tool for Crimping 204210MT Dragon Tooth Terminals, Brown. .301/.289 Gaging
TBM6229X
Hex Flex Die for TBM62BSCR - Copper Code 4 AWG, Flex/24 91/24, AL/CU 2 AWG, Color/Die Code Gray 29X
15536X
12 or 14 Ton Hex Flex Die for Crimping Flex Conductors, 94X Die Code, Green Die Color. High Grade Tool Steel. To use with 15 Ton Tool please buy adaptor 15500-TB.15517X
12 or 14 Ton Hex Flex Die for Crimping Flex Conductors, 80X Die Code, Black Die Color. High Grade Tool Steel. To use with 15 Ton Tool please buy adaptor 15500-TB.15514X
12 or 14 Ton Hex Flex Die for Crimping Flex Conductors, 71X Die Code, Red Die Color. High Grade Tool Steel. To use with 15 Ton Tool please buy adaptor 15500-TB.15512X
12 or 14 Ton Hex Flex Die for Crimping Flex Conductors, 76X Die Code, Blue Die Color. High Grade Tool Steel. To use with 15 Ton Tool please buy adaptor 15500-TB.15530X
12 or 14 Ton Hex Flex Die for Crimping Flex Conductors, 50X Die Code, Orange Die Color. High Grade Tool Steel. To use with 15 Ton Tool please buy adaptor 15500-TB.Frequently Asked Questions
What wire sizes can the 15500X indentor crimp?
The 15500X indentor is designed for crimping 4/0 weld wire and 550/24 wire sizes.
Does the 15500X indentor require an adapter?
Yes, the upper indentor of the 15500X requires the 15500-TB adapter for use with 15 ton heads.
What is the crimping capacity of the 15500X?
The 15500X Shell Die Indentor has a crimping capacity of 15 tons.
Who manufactures the 15500X indentor?
The 15500X indentor is manufactured by ABB - Installation Products.
