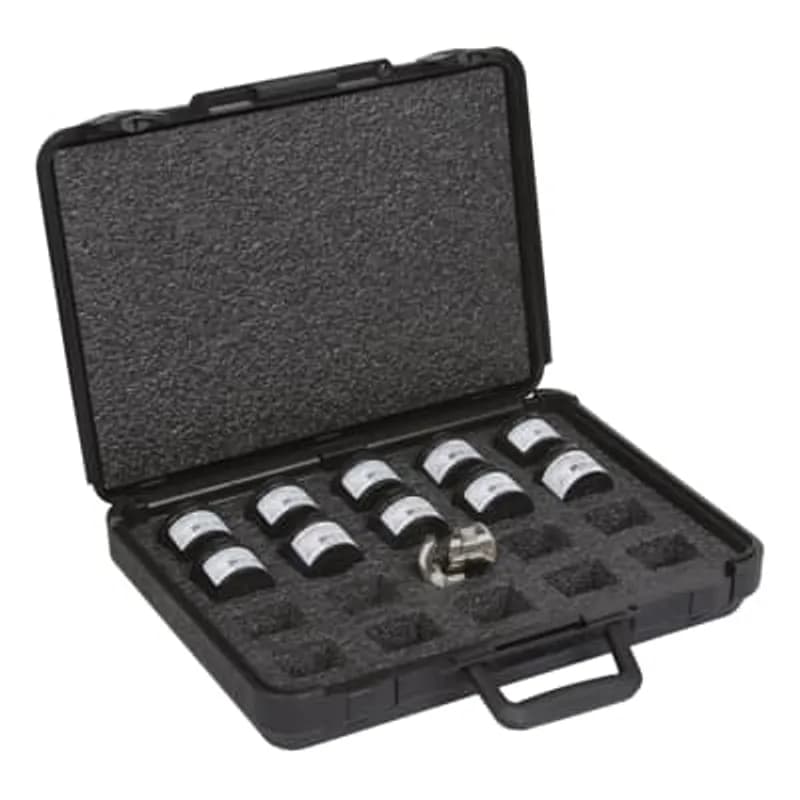

ABB - Installation Products 15500SS-K10 - 14 Ton Stainless Steel Hex Die Kit (#6 to 750 kcmil) for TBM12P, TBM14, and TBM15 Series Hydraulic Tools - Dies Include 24 (Blue), 33 (Brown), 42 (Pink), 45 (Black/Gold), 50 (Orange/Tan), 54 (Purple/Olive), 62 (Yellow), 71 (Red), 87H (Brown), 106H (Black) in Plastic Case.

ABB Installation Products 15500SS-K10 14 Ton Stainless Steel Hex Die Kit (#6 to 750 kcmil) for TBM12P, TBM14, and TBM15 Series…

UPC: 786209892683

Documents & Media
Manufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The ABB 15500SS-K10 14 Ton Stainless Steel Hex Die Kit is engineered for high-precision crimping of copper and aluminum conductors ranging from #6 AWG to 750 kcmil, meeting industry standards for medium to large conductor terminations. Compatible with ABB TBM12P, TBM14, and TBM15 Series hydraulic tools, this kit includes ten dies with color-coded sizes for rapid identification and reduced setup time. The dies cover the following conductor sizes: 24 (Blue), 33 (Brown), 42 (Pink), 45 (Black/Gold), 50 (Orange/Tan), 54 (Purple/Olive), 62 (Yellow), 71 (Red), 87H (Brown), and 106H (Black). Constructed from corrosion-resistant stainless steel, these dies provide consistent, high-quality crimps essential for demanding industrial applications, including power distribution, renewable energy installations, and heavy machinery wiring. The durable plastic case organizes and protects the dies during transport and storage, ensuring long-term reliability and preventing damage. Designed for electricians, contractors, and maintenance teams, this kit supports efficient and reliable tooling for medium to large conductor terminations in commercial and industrial environments. The 14-ton hydraulic tool compatibility ensures compatibility with high-force crimping applications, delivering secure and compliant terminations for critical electrical systems.
  • 14-ton capacity for heavy-duty crimping applications
  • Includes 10 stainless steel hex dies for #6 to 750 kcmil conductors
  • Color-coded dies for quick size identification
  • Compatible with ABB TBM12P, TBM14, and TBM15 Series hydraulic tools
  • Durable plastic case for organization and protection

Specifications

Capacity
14 ton
Color
Multiple
Material
Stainless Steel
Type
Die
Package Dimensions (L x W x H)
0.01 IN x 0.01 IN x 0.01 IN
Package Dimensions (L x W x H)
0.0254 cm x 0.0254 cm x 0.0254 cm
Package Weight (Imperial)
7.6900 L
Package Weight (Metric)
3.4880 kg
Stainless Steel Hex Die for 6-Ton TBM6PCR-LI, TBM62PCR-LI, TBM62CR-LI and TBM6UNICR-LI Tools for 2/0 CU, #1 Al, Die Color Black, Gold, Die Code 45

6TON45SS

Stainless Steel Hex Die for 6-Ton TBM6PCR-LI, TBM62PCR-LI, TBM62CR-LI and TBM6UNICR-LI Tools for 2/0 CU, #1 Al, Die Color Black, Gold, Die Code 45
12-14 Ton Stainless Steel Hex Flex Upper Indentor Die. 1.35 x 1.57 inch Approx.

15500XSS

12-14 Ton Stainless Steel Hex Flex Upper Indentor Die. 1.35 x 1.57 inch Approx.
14 Ton Stainless Steel Hex Flex Die Kit (1/0 to 600 kcmil) for TBM12P, TBM14, and TBM15 Series Hydraulic Tools - Dies Include 42X (Pink), 45X (Black), 50X (Orange), 54X (Purple), 62X (Yellow), 66X (White), 71X (Red), 76X (Blue), 80X (No Color), 87X (Brown), 94X (Green), and Indentor Die 15500XSS in Plastic Case.

15500SS-KHF

14 Ton Stainless Steel Hex Flex Die Kit (1/0 to 600 kcmil) for TBM12P, TBM14, and TBM15 Series Hydraulic Tools - Dies Include 42X (Pink), 45X (Black), 50X (Orange), 54X (Purple), 62X (Yellow), 66X (White), 71X (Red), 76X (Blue), 80X (No Color), 87X (Brown), 94X (Green), and Indentor Die 15500XSS in Plastic Case.
12-14 Ton Stainless Steel Full Hex Die for Set - 8 AWG Copper Code, Flex/24 37/24, AL/CU 10 AWG, Die Color Red, Die Code 21X, Must Be Used with 15500XSS Indentor Die

15520XSS

12-14 Ton Stainless Steel Full Hex Die for Set - 8 AWG Copper Code, Flex/24 37/24, AL/CU 10 AWG, Die Color Red, Die Code 21X, Must Be Used with 15500XSS Indentor Die
12-14 Ton Stainless Steel Full Hex Die for Set - 6 AWG Copper Code, Flex/24 61/24, AL/CU 8 AWG, Die Color Blue, Die Code 24X, Must Be Used with 15500XSS Indentor Die

15522XSS

12-14 Ton Stainless Steel Full Hex Die for Set - 6 AWG Copper Code, Flex/24 61/24, AL/CU 8 AWG, Die Color Blue, Die Code 24X, Must Be Used with 15500XSS Indentor Die
12-14 Ton Stainless Steel Full Hex Die for Set - 4 AWG Copper Code, Flex/24 91/24, 6 AWG, Die Color Gray, Die Code 29X, Must Be Used with 15500XSS Indentor Die

15527XSS

12-14 Ton Stainless Steel Full Hex Die for Set - 4 AWG Copper Code, Flex/24 91/24, 6 AWG, Die Color Gray, Die Code 29X, Must Be Used with 15500XSS Indentor Die
12-14 Ton Stainless Steel Full Hex Die for Set - 1 AWG Copper Code, Flex/24 140/24, AL/CU 4 AWG, Die Color Green, Die Code 37X, Must Be Used with 15500XSS Indentor Die

15513XSS

12-14 Ton Stainless Steel Full Hex Die for Set - 1 AWG Copper Code, Flex/24 140/24, AL/CU 4 AWG, Die Color Green, Die Code 37X, Must Be Used with 15500XSS Indentor Die
12-14 Ton Stainless Steel Full Hex Die for Set - 2 AWG Copper Code, Flex/24 125/24, Die Color Brown, Die Code 33X, Must Be Used with 15500XSS Indentor Die

15528XSS

12-14 Ton Stainless Steel Full Hex Die for Set - 2 AWG Copper Code, Flex/24 125/24, Die Color Brown, Die Code 33X, Must Be Used with 15500XSS Indentor Die

Frequently Asked Questions

Which ABB hydraulic tools are compatible with this die kit?

The dies are designed for use with ABB TBM12P, TBM14, and TBM15 Series hydraulic tools.

Is a storage case included with the die kit?

Yes, the dies are housed in a durable plastic case for organization and protection.

What conductor sizes does this die kit support?

The kit supports conductors from #6 AWG to 750 kcmil, with dies sized 24 to 106H.

How many dies are included in the kit?

The kit includes ten dies with color-coded sizes for easy identification.

What material are the dies made from?

The dies are constructed from stainless steel for durability and corrosion resistance.
