UPC: 786210816326
Contact for Pricing
Minimum Qty: 25
Multiplier: 25
*Contact for lower quantities*
Overview

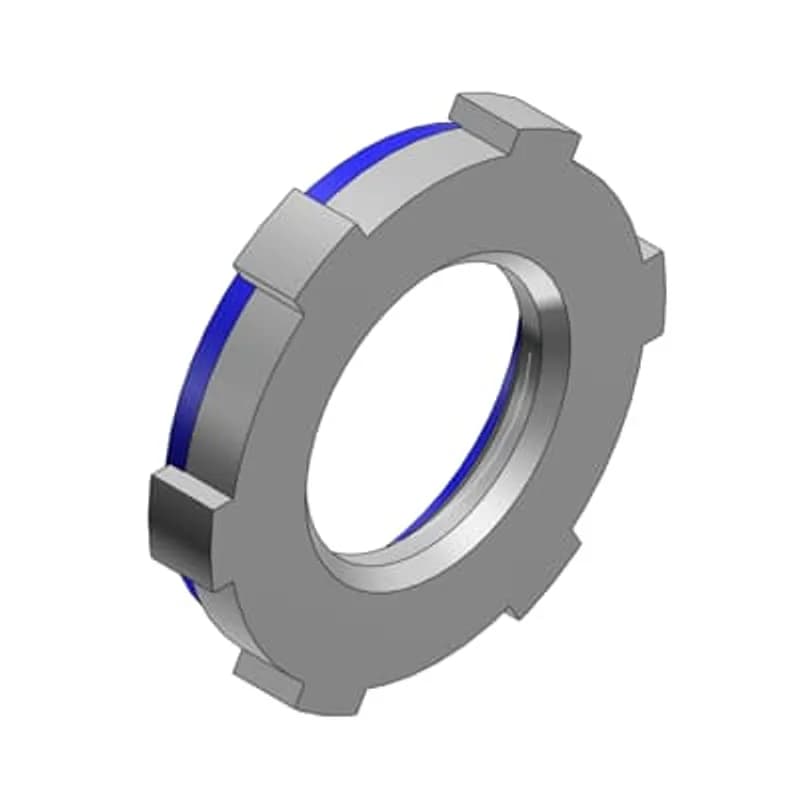

- 1-1/4 Inch Steel Sealing Locknut
- Designed for Rigid and IMC Conduit
- Provides Secure Mechanical Connection
- Helps Maintain Conduit Pathway Integrity
- Manufactured by ABB Installation Products (SKU: 144SL)
Specifications
Application | Provides Positive Seal Against Water and Oil |
Material of Construction | Steel |
Standard | UL E23018, CSA |
Thread Size | 1-1/4 inch |
Type | Locknuts |
Package Dimensions (L x W x H) | 6 IN x 4.5 IN x 3 IN |
Package Dimensions (L x W x H) | 15.24 cm x 11.43 cm x 7.62 cm |
Package Weight (Imperial) | 0.0500 L |
Package Weight (Metric) | 0.0230 kg |
40411J
An 8-32 nylon insert stop nut in a hex nut form. It is made of steel with a zinc plated finish and is silver in color. The sheet lists a #8 size, 32 thread size, right-handed thread direction, 0.239" thickness, and 0.345" width.
How to Install the 144SL Sealing Locknut
Instructions for installing Thomas & Betts sealing locknuts to create a watertight or raintight grounded conduit connection.
Estimated time: 10m
Tools needed:
Wrench
Supplies needed:
Sealing locknut, Rigid conduit locknut or bushing
- Thread the sealing locknut onto the conduit
Thread the 144SL sealing locknut onto the conduit until it reaches the end of the conduit's threads. Refer to Figure 1 for visual guidance.
- Insert conduit into enclosure
Insert the conduit, with the sealing locknut on the outside, into the entry point of the enclosure. Refer to Figure 2 for visual guidance.
- Secure the assembly
Install a rigid conduit locknut or bushing on the inside of the enclosure. Tighten the entire assembly to ensure a secure seal and proper grounding.
